Spec Sheet
SMD Power Inductors for Automotive / Industrial Applications (NR series S type)
PrintPDF
NRS5024T4R7MMGJV
Features
Item Summary
4.7uH±20%, 2A, 4.9x4.9x2.4mm
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2500pcs
Products characteristics table
Inductance
Case Size (mm)
Rated Current (max)
Saturation Current (max)
Temperature Rise Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
4.7 uH ± 20 %
4.9x4.9
2A
2.7 A
2A
66 mΩ
55 mΩ
100 kHz
37 MHz
-40 to +125 ℃
(Including-self-generated heat)
± 20 %
External Dimensions
Dimension L
Dimension W
Dimension H
Dimension e
Dimension f
Dimension ΔI
4.9 ±0.2 mm
4.9 ±0.2 mm
Max 2.4 mm
1.2 ±0.2 mm
3.3 ±0.2 mm
Typ 1.3 mm
Recommended Land Patterns
2018.03.04
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor
-Electrical Characteristics Data-
2014/11/5
SMD Power Inductors for Industrial / Automotive Comfort and Safety Applications
(NR series S type)(AEC-Q200 qualified)
Dimension
Length :
Width :
Height :
unit : mm
4.9 + / - 0.2
4.9 + / - 0.2
2.4
max.
unit : inch
( 0.193 + / - 0.008 )
( 0.193 + / - 0.008 )
( 0.094
max. )
NRS5024T4R7MMGJV
Inductance :
4.7
uH
( test freq at 0.1MHz )
ohm ( typ / max )
DC Resistance : 0.055 / 0.066
Saturation Current :
2,700 mA ( max )
Temp. rise Current :
2,000 mA ( max )
Saturation current typical : 30% reduction from initial L value.
AEC-Q200 qualified
Temp rise Current typical : Temperature will rise by 40 deg C

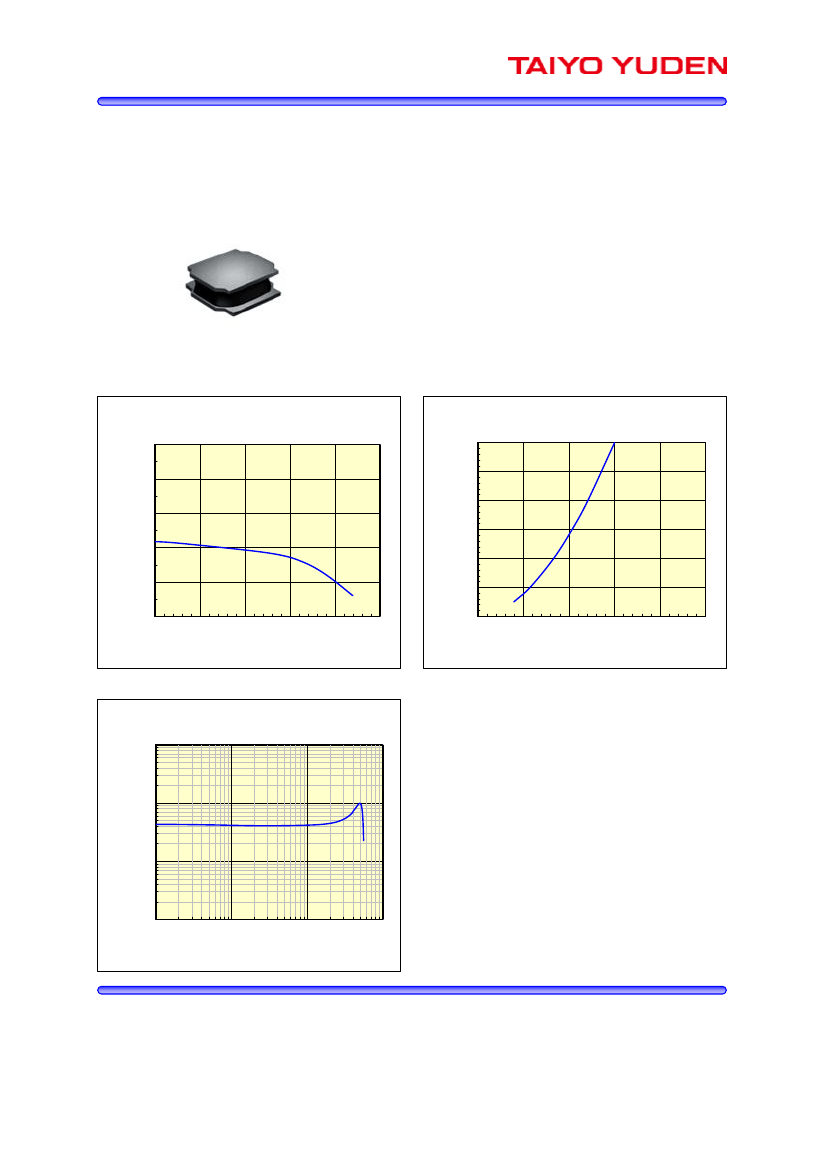

DC Bias vs Inductance
10
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
1000
2000
3000
4000
5000
8
50
40
30
20
10
0
0
1000
2000
3000
4000
5000
Inductance [uH]
6
4
2
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
100
Inductance [uH]
10
1
0.1
0.1
1
10
100
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
The products are tested based on the test conditions and methods defined in AEC-Q200.
Please consult with TAIYO YUDEN for the details of the product specification and AEC-Q200 test results, etc.,
and please review and approve TAIYO YUDEN's product specification before ordering.
■
