STi5100
Low-cost interactive set-top box decoder
DATA BRIEF
Description
The
STi5100
provides the power and features
required to meet the specifications of the most
demanding broadcasters and can be used in
satellite, terrestrial, cable or IP set-top boxes. The
STi5100 also provides a USB2.0 host interface
which allows consumers to connect a wide range of
peripherals to their STB such as digital cameras,
memory sticks, printers and hard disk drives for DVR
applications
The STi5100 features the ST20 CPU that is
standard across the OMEGA range but boosts the
clock speed to 243MHz which, when combined with
the DDR memory interface, gives the new device
exceptional levels of performance. The new chip
also includes a unified DDR memory interface and a
modem interface compatible with Silicon
Laboratories’ silicon DAA.
.

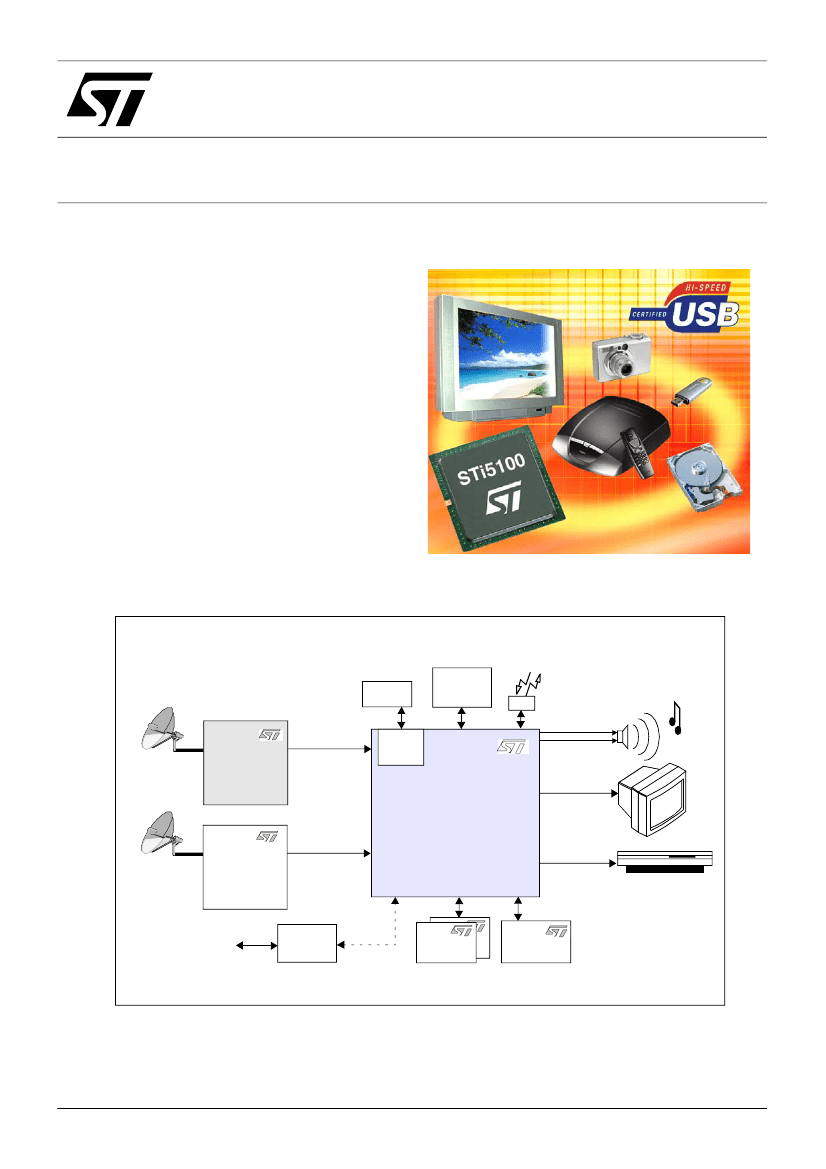

Application: Cost effective set-top box with optional hard disk
IR Tx/Rx
HDD
QPSK ZIF Rx
Transport
stream in
STV0399
RGB
QPSK ZIF Rx
Transport
stream in
STV0399
VCR
(Optional)
SiLabs
DAA
Smart
Smart
Cards
cards
USB
port
128 Mbit
DDR
STi5100
CVBS/YC
PSTN
Flash
May 2004
1/2
STi5100
Features
■
Enhanced ST20 32-bit VL-RISC CPU
●
■
Graphics/Display
4 display planes
●
2, 4 and 8 bpp CLUT graphics, 256 x 30 bits
(AYCBCr) CLUT entries
●
16 bpp true color graphics
●
Alpha blending, antialiasing, antiflutter,
antiflicker filters
●
243 MHz, 8Kbyte ICache, 8Kbyte DCache, 4
Kbyte SRAM
■
Unified Memory Interface
■
Dual Transport Stream Merger
Supports DVB and DIRECTV
●
Integrated DES-ECB, DVB and ICAM
descramblers
●
NDS RASP compliant
●
Low cost DVB-CI and Cable Card support
●
■
PAL/NTSC/SECAM encoder
RGB, CVBS, Y/C and YUV outputs with 10-bit
DACs
●
CGMS, Teletext, WSS, VPS and close caption
●
■
MPEG-2 MP@ML Video Decoder
●
■
On-Chip Peripherals
4 ASCs (UARTS)
●
4 parallel 8-bit I/O banks
●
2 smartcard interfaces and clock generators
●
3 SSCs for I²C/SPI master/slave interfaces
●
Silicon Labs line side (DAA) interface
●
High-speed USB OHCI/EHCI compliant host
interface
●
DiSEqC interface
●
Trick modes including smooth fast forward and
rewind
■
Audio
MPEG-1 layers I/II, MP3
●
Dolby Digital decoding
●
Dolby Pro Logic compatible output
●
PCM input, mixing and sample rate conversion
●
SRS/TruSurrondXT virtual surround sound
●
Simultaneous MPEG audio decode and output
of Dolby streams
●
■
Enhanced Security
Ordering information
Device number
STi5100ZUA
STi5100-Mboard
STi5100-Ref
STi5100-STDVB
Description
Basic STi5100
Development platform
Example STB design
STAPI drivers for DVB
