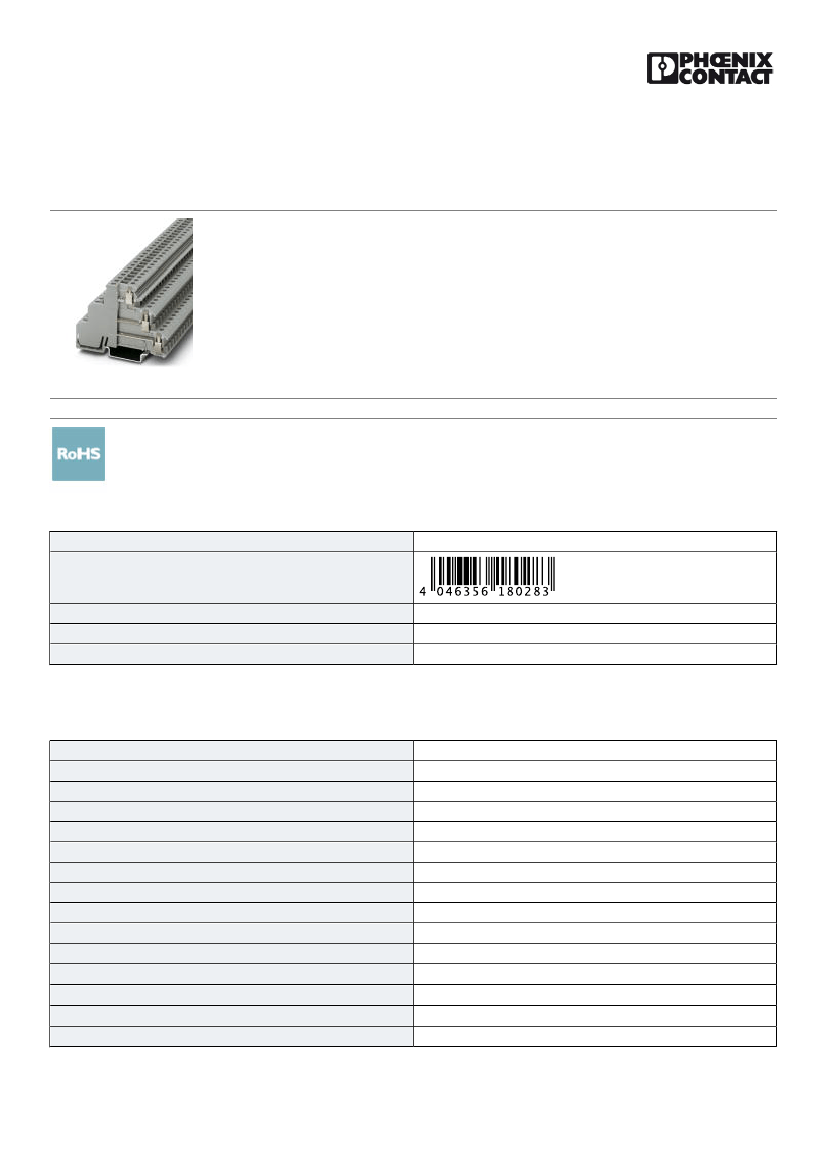

Sensor/actuator terminal block - DIKD 1,5 R 2,2K/O-M - 3048771
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator terminal block, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Connection type: Screw
connection, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Similar figure
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356180283
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
3
6
2.5 mm²
gray
PA
V2
4 kV
3
III
I
IEC 60947-7-1
24 A
32 A (with 4 mm² conductor cross section)
250 V
No
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3048771
Sensor/actuator terminal block - DIKD 1,5 R 2,2K/O-M - 3048771
Technical data
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
72.5 mm
54.5 mm
62 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
0.25 mm²
0.25 mm²
2.5 mm²
4 mm²
2.5 mm²
0.2 mm²
1 mm²
0.2 mm²
1 mm²
0.25 mm²
1 mm²
0.5 mm²
1 mm²
4 mm²
2.5 mm²
8 mm
A3
M3
0.5 Nm
0.6 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V2
Environmental Product Compliance
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/3048771
Sensor/actuator terminal block - DIKD 1,5 R 2,2K/O-M - 3048771
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC EAC-Zulassung
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 3 / 3
