RJE06
Product Specification S6068C Rev 1.0
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJSSE

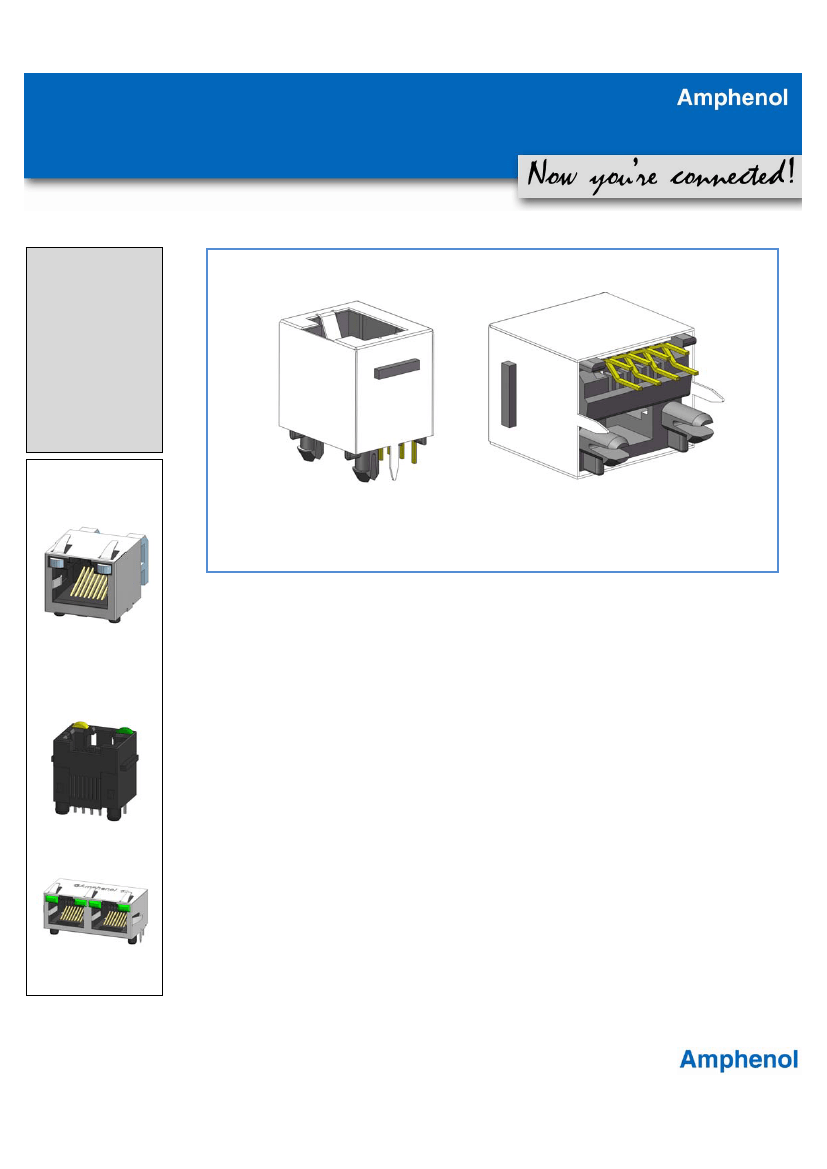

P/N RJE06‐188‐1X20 Shown
RJE06 SERIES Modular Jack,
8 Positions, 8 Contacts, vertical mount
with shield, with flange‐RoHS compliant
Overview
P/N RJSSE‐5381 SHOWN
SINGLE PORT, 8 POSITIONS,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
RJE06 series of modular jacks.
Availability: Single port, 6P6C, 8P8C available, flanged and shielding options.
RJHSE
Usage
The RJE06 series of modular jack supports Ethernet Protocols.
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Revision date: Mar 21, 2013
Page 1 of 2
S6068C Rev 1.0
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature:
Wave soldering peaked at 260° C for 5 seconds
Operating temperature: -40° C to +70° C
Related Products
RJULE
Material Requirements
RJE06 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
Engineering thermoplastic material - Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin or gold flash plating on tail area.
Shield:
Copper Alloy, Nickel plating over all

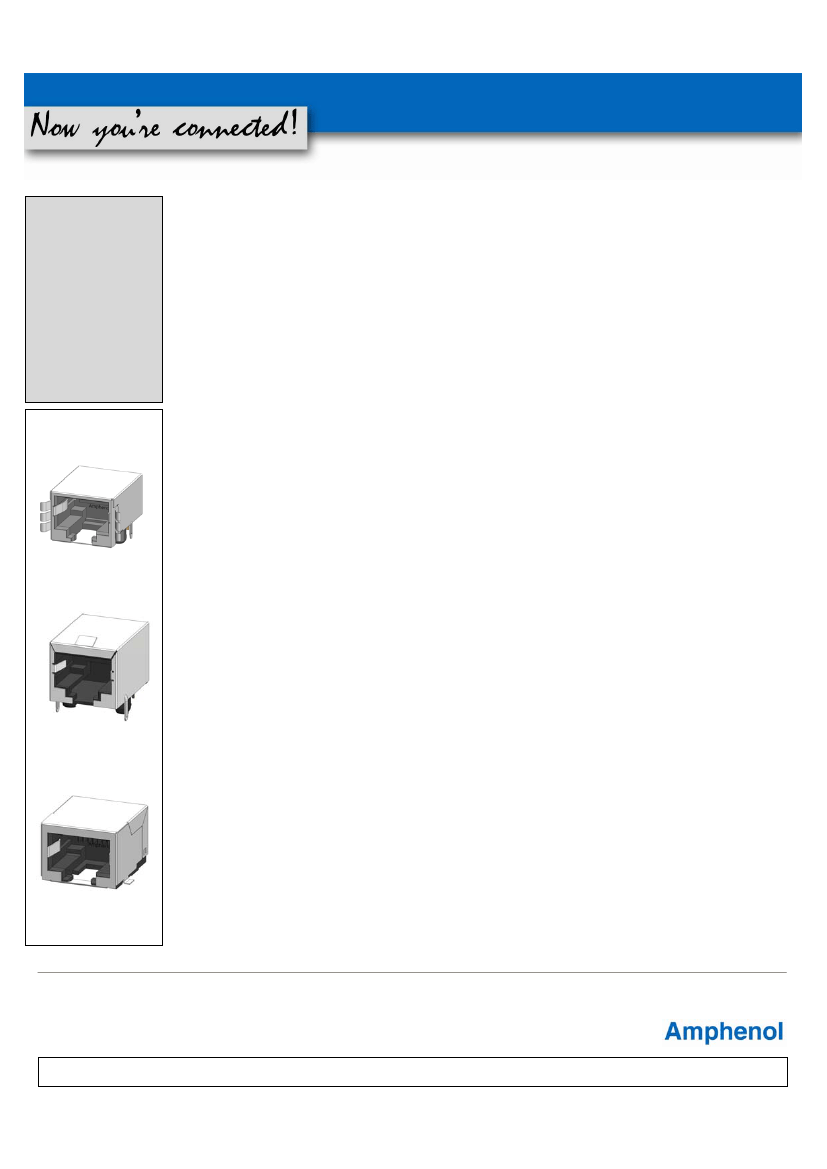

P/N FJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
FRJAE
Available Documents
Drawing Numbers:
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITIONS,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
P-RJE06-166-1X10
P-RJE06-188-0X10
P-RJE06-188-0X1X
P-RJE06-188-1X10
P-RJE06-188-1X20-H
RJLSE
RJE06 SERIES, VERTICAL MOUNT, 6P6C, MODULAR JACK, WITH SHIELD-RoHS
COMPLIANT
RJE06 SERIES, 8 POSITIONS, 8 CONTACTS, VERTICAL MOUNT, UNSHIELDED,
WITHOUT FLANGE-RoHS COMPLIANT
RJE06 SERIES, 8 POSITIONS, 8 CONTACTS, VERTICAL MOUNT, NON SHIELDED-
RoHS COMPLIANT
RJE06 SERIES, 8 POSITIONS, 8 CONTACTS, VERTICAL MOUNT, WITH SHIELD,
NON FLANGED, -RoHS COMPLIANT
RJE06 SERIES, 8 POSITIONS, 8 CONTACTS, VERTICAL MOUNT, WITH SHIELD
AND FLANGE-RoHS COMPLIANT
P/N RJLSE‐41181‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
Contact factory or Authorized Amphenol representative for additional configurations.
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2013 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
