2102077-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 2102077-1

2102077-1: DescriptionKIT,FORTIS Zd,3-PAIR,10COL,SHELL&BCKPLT; CategoryThe connector Connector bracket; File Size259KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2102077-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102077-1	-	-	View	Buy Now

2102077-1 Overview

KIT,FORTIS Zd,3-PAIR,10COL,SHELL&BCKPLT

2102077-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Maker	TE Connectivity
Reach Compliance Code	unknown
Factory Lead Time	48 weeks
Connector bracket type	CONNECTOR ACCESSORY

Preview

Download Datasheet

View All

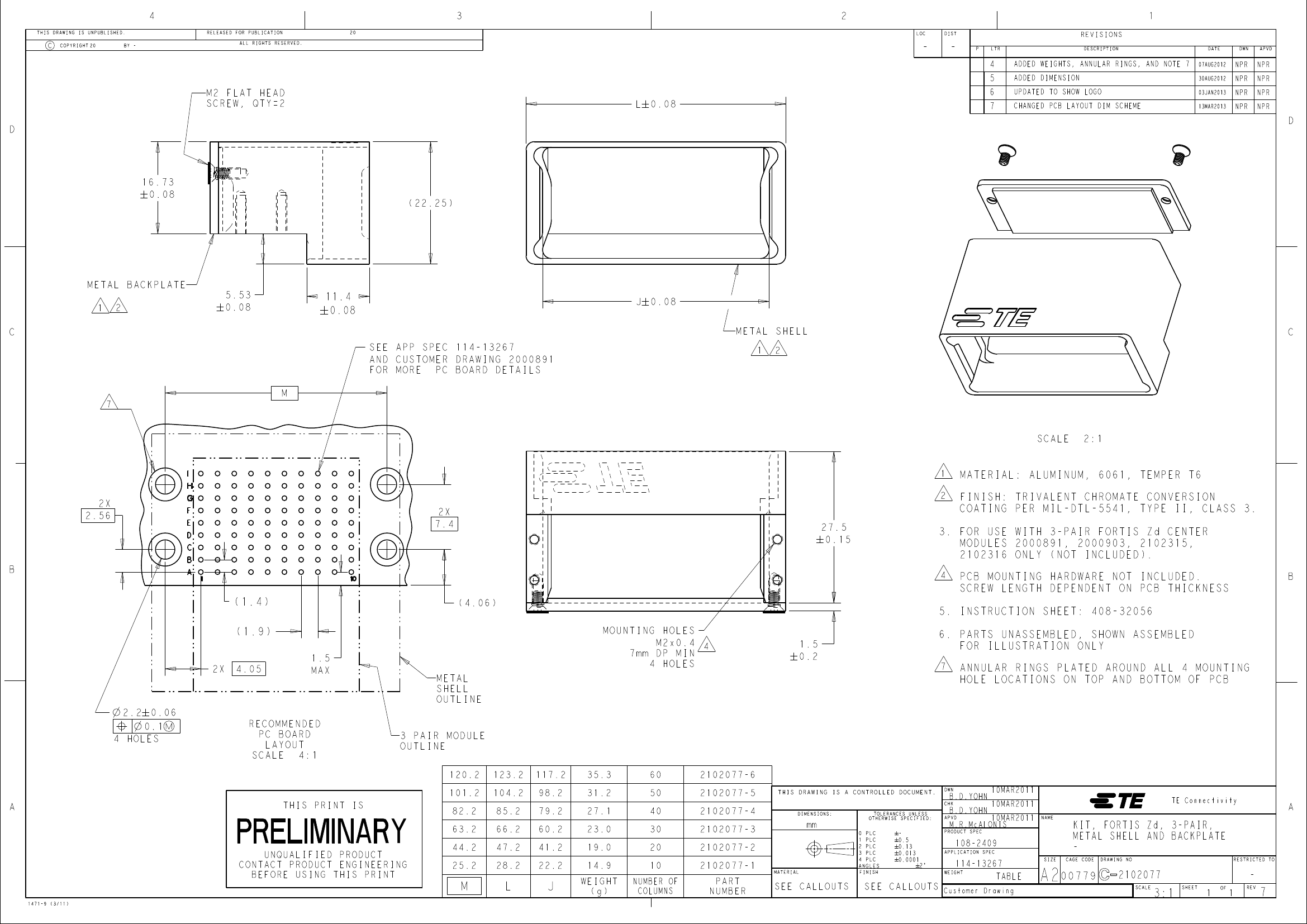

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADDED WEIGHTS, ANNULAR RINGS, AND NOTE 7

ADDED DIMENSION

UPDATED TO SHOW LOGO

CHANGED PCB LAYOUT DIM SCHEME

07AUG2012

30AUG2012

03JAN2013

13MAR2013

NPR

M2 FLAT HEAD

SCREW, QTY=2

L # 0.08

16.73

( 22.25 )

METAL BACKPLATE

5.53

11.4

J # 0.08

METAL SHELL

SEE APP SPEC 114-13267

AND CUSTOMER DRAWING 2000891

FOR MORE PC BOARD DETAILS

SCALE

2:1

MATERIAL: ALUMINUM, 6061, TEMPER T6

FINISH: TRIVALENT CHROMATE CONVERSION

COATING PER MIL-DTL-5541, TYPE II, CLASS 3.

2.56

7.4

27.5

3. FOR USE WITH 3-PAIR FORTIS Zd CENTER

MODULES 2000891, 2000903, 2102315,

2102316 ONLY (NOT INCLUDED).

( 1.4 )

( 1.9 )

4.05

1.5

MAX

( 4.06 )

MOUNTING HOLES

M2x0.4

7mm DP MIN

4 HOLES

PCB MOUNTING HARDWARE NOT INCLUDED.

SCREW LENGTH DEPENDENT ON PCB THICKNESS

5. INSTRUCTION SHEET: 408-32056

1.5

6. PARTS UNASSEMBLED, SHOWN ASSEMBLED

FOR ILLUSTRATION ONLY

2.2

4 HOLES

METAL

SHELL

OUTLINE

3 PAIR MODULE

OUTLINE

120.2

123.2

104.2

85.2

66.2

47.2

28.2

117.2

98.2

79.2

60.2

41.2

22.2

ANNULAR RINGS PLATED AROUND ALL 4 MOUNTING

HOLE LOCATIONS ON TOP AND BOTTOM OF PCB

RECOMMENDED

PC BOARD

LAYOUT

SCALE

4:1

35.3

31.2

27.1

23.0

19.0

14.9

WEIGHT

(g)

NUMBER OF

COLUMNS

2102077-6

2102077-5

2102077-4

2102077-3

2102077-2

2102077-1

PART

NUMBER

MATERIAL

PRELIMINARY

UNQUALIFIED PRODUCT

CONTACT PRODUCT ENGINEERING

BEFORE USING THIS PRINT

1471-9 (3/11)

THIS PRINT IS

101.2

82.2

63.2

44.2

25.2

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

B.D.YOHN

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.5

0.13

0.013

0.0001

PRODUCT SPEC

10MAR2011

M.R.McALONIS

PRELIMINARY

10MAR2011

TE Connectivity

NAME

10MAR2011

APPLICATION SPEC

108-2409

2°

WEIGHT

114-13267

SEE CALLOUTS

TABLE

Customer Drawing

00779

SIZE

CAGE CODE

KIT, FORTIS Zd, 3-PAIR,

METAL SHELL AND BACKPLATE

DRAWING NO

RESTRICTED TO

2102077

SCALE

3:1

SHEET

REV
