Ultra Low Profile Stacker: BTB
00-9258
INTER
CONNECT
The SOLO series 9258 is a one-piece connector used to connect two PCBs in a
cost effective manner.
This connector is a 1.0mm pitch available in an 8 position with stack heights of
0.40mm and 0.80mm. It is available with or without location bosses.
This connector is designed for PCB surface mounting and is supplied in tape and
reel packaging. Gold plated pads on the mating PCB or suitable flex circuits provide
connection between the boards.
APPLICATIONS
•
•
•
•
Mobile phones
Handheld scanners
Portable medical devices
Display interface
FEATURES AND BENEFITS
Single piece connector – no mating half connector required
to connect two boards together which means:
• Reduced assembly time
• Only one part to purchase and stock
• Due to the unique contact design, the mating device does
not have to be parallel
• Extremely robust when it comes to shock and vibration
ELECTRICAL
• Current Rating: 1 Amp/Contact
• Voltage Rating: 125V
Based on placement distance
ENVIRONMENTAL
• Operating Temperature:
-55ºC to +125ºC
MECHANICAL
• Insulator Material: High Temperature
Plastic; UL94 V-0
• Contact Material: Beryllium Copper
• Plating: Gold over Nickel
• Durability: 50 Cycles
HOW TO ORDER
00
Prefix
9258
Series
008
Number of
Ways
008 = 8
00X
Connector Height
Code
004
008
Stack
Height
0.40mm
0.80mm
Contact
Height
1.00-1.30
1.40-1.70
Qty
No. of
Ways
06
Plating Variation
06 = Selective Gold
0.25µm Gold Plated
Contact Nose Pure
Tin Tail
X
PCB Location Bosses
1 = With PCB Location Bosses (top side)
2 = Without PCB Location Bosses
3 = With SMT PCB Location Bosses (bottom side)
4 = With SMT and Mating PCB Location Bosses
(top and bottom side)
1
Ultra Low Profile Stacker: BTB
00-9258

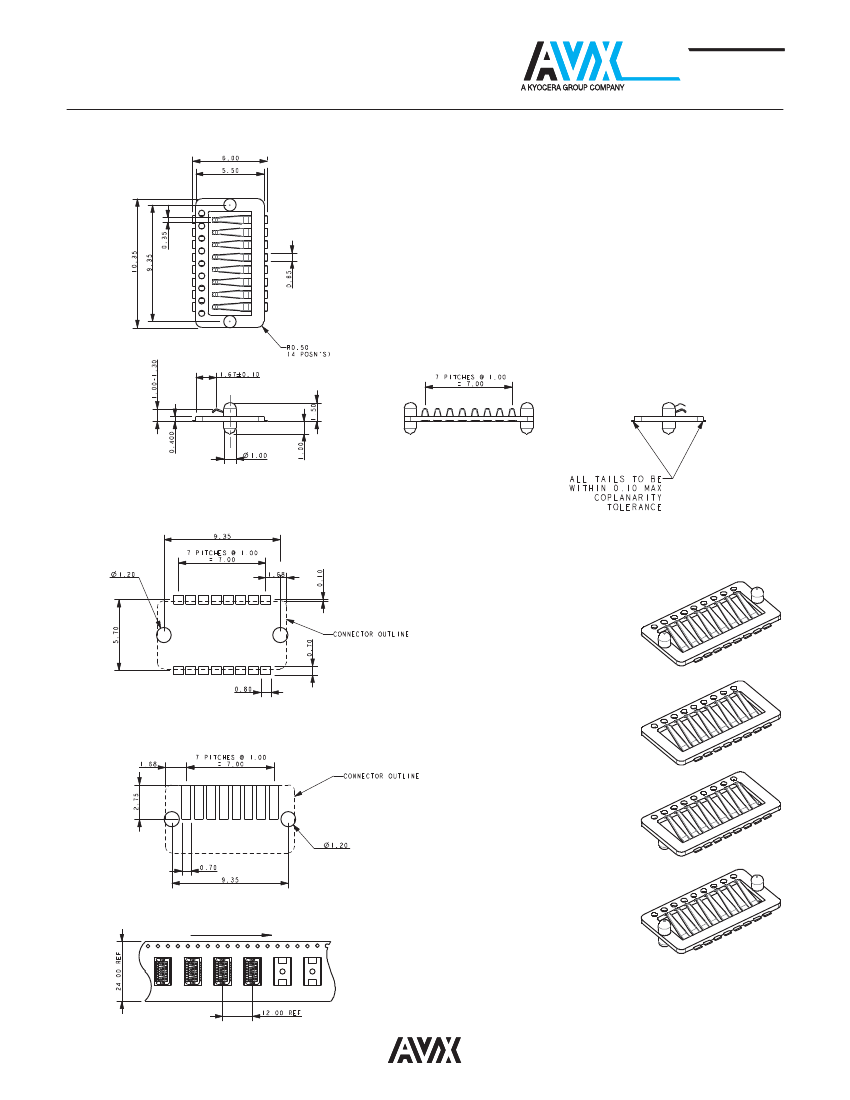

0.4MM ULTRA LOW PROFILE STACKER
INTER
CONNECT
NOTES:
1. 8 WAY ULTRA LOW PROFILE STACKER IN 0.8MM STACK HEIGHT.
2. INSULATOR MATERIAL: NYLON 46 HF5040, 40% GLASS FILLED UL94 V-0.
COLOR BLACK.
3. CONTACT MATERIAL; 0.10MM THICK BeCu.
4. CONTACT PLATING: NICKEL UNDERPLATE, SELECTIVE GOLD PLATED CONTACT
NOSES PURE TIN PLATED CONTACT SMT TAILS.
5. PARTS TO BE PACKED IN TAPE AND REEL, QTY: 1200.
6. ALL DIMENSIONS FOR REFERENCE UNLESS TOLERANCED.
7. FOR FURTHER INFORMATION REFER TO SPECIFICATION 201-01-115.
PROPOSED SMT PCB LAYOUT
ALL PADS PURE TIN PLATE
WITH MATING PCB
LOCATION BOSSES
(TOP SIDE)
PROPOSED MATING PCB LAYOUT
ALL PADS GOLD PLATE
WITHOUT PCB
LOCATION BOSSES
WITH SMT PCB
LOCATION BOSSES
(BOTTOM SIDE)
PACKING TAPE DETAILS
WITH PCB AND SMT
LOCATION BOSSES
2
Ultra Low Profile Stacker: BTB
00-9258

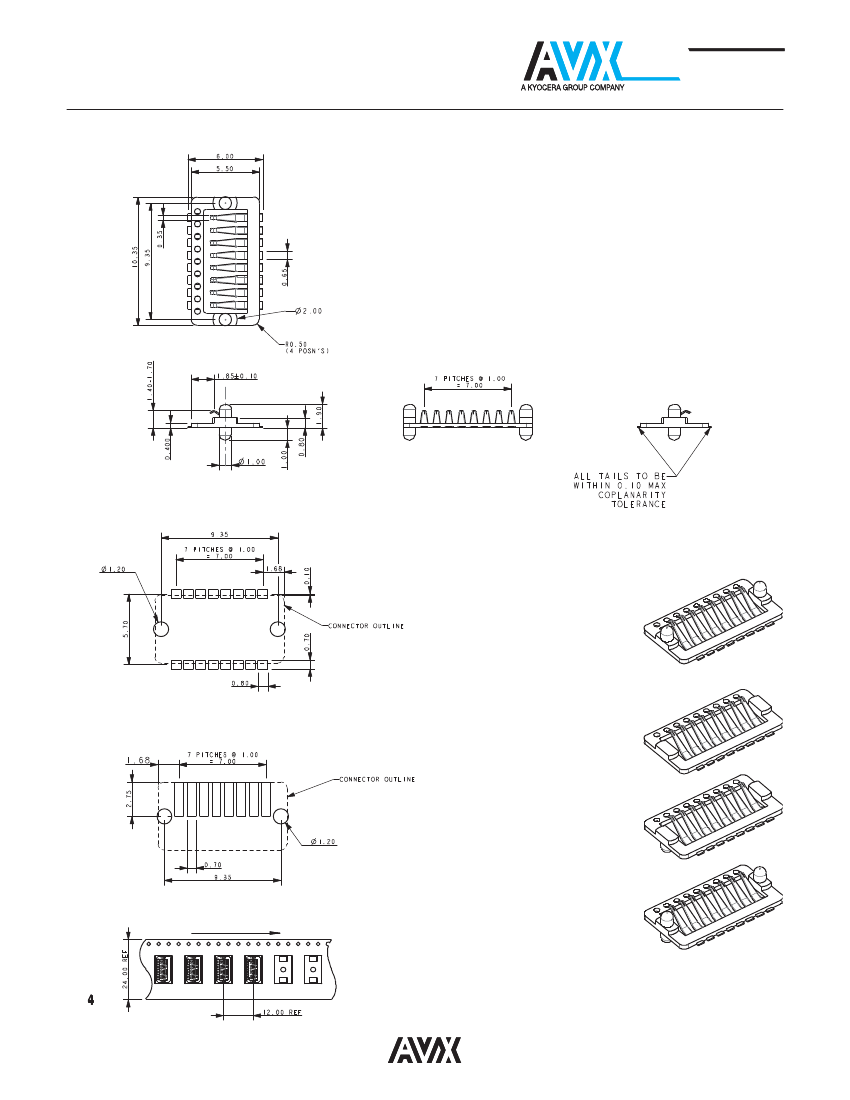

0.8MM ULTRA LOW PROFILE STACKER
INTER
CONNECT
NOTES:
1. 8 WAY ULTRA LOW PROFILE STACKER IN 0.4MM STACK HEIGHT.
2. INSULATOR MATERIAL: NYLON 46 HF5040, 40% GLASS FILLED UL94 V-0.
COLOR BLACK.
3. CONTACT MATERIAL; 0.10MM THICK BeCu.
4. CONTACT PLATING: NICKEL UNDERPLATE, SELECTIVE GOLD PLATED CONTACT
NOSES PURE TIN PLATED CONTACT SMT TAILS.
5. PARTS TO BE PACKED IN TAPE AND REEL, QTY: 1400.
6. ALL DIMENSIONS FOR REFERENCE UNLESS TOLERANCED.
7. FOR FURTHER INFORMATION REFER TO SPECIFICATION 201-01-115.
PROPOSED SMT PCB LAYOUT
ALL PADS PURE TIN PLATE
WITH MATING PCB
LOCATION BOSSES
(TOP SIDE)
PROPOSED MATING PCB LAYOUT
ALL PADS GOLD PLATE
WITHOUT PCB
LOCATION BOSSES
WITH SMT PCB
LOCATION BOSSES
(BOTTOM SIDE)
PACKING TAPE DETAILS
WITH PCB AND SMT
LOCATION BOSSES
3
