54209UB: DescriptionRing Terminal, 53.51mm2, ROHS COMPLIANT; CategoryThe connector terminals; File Size42KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54209UB Overview

Ring Terminal, 53.51mm2, ROHS COMPLIANT

54209UB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	53.51 mm2
Wire gauge	0 AWG
Base Number Matches	1

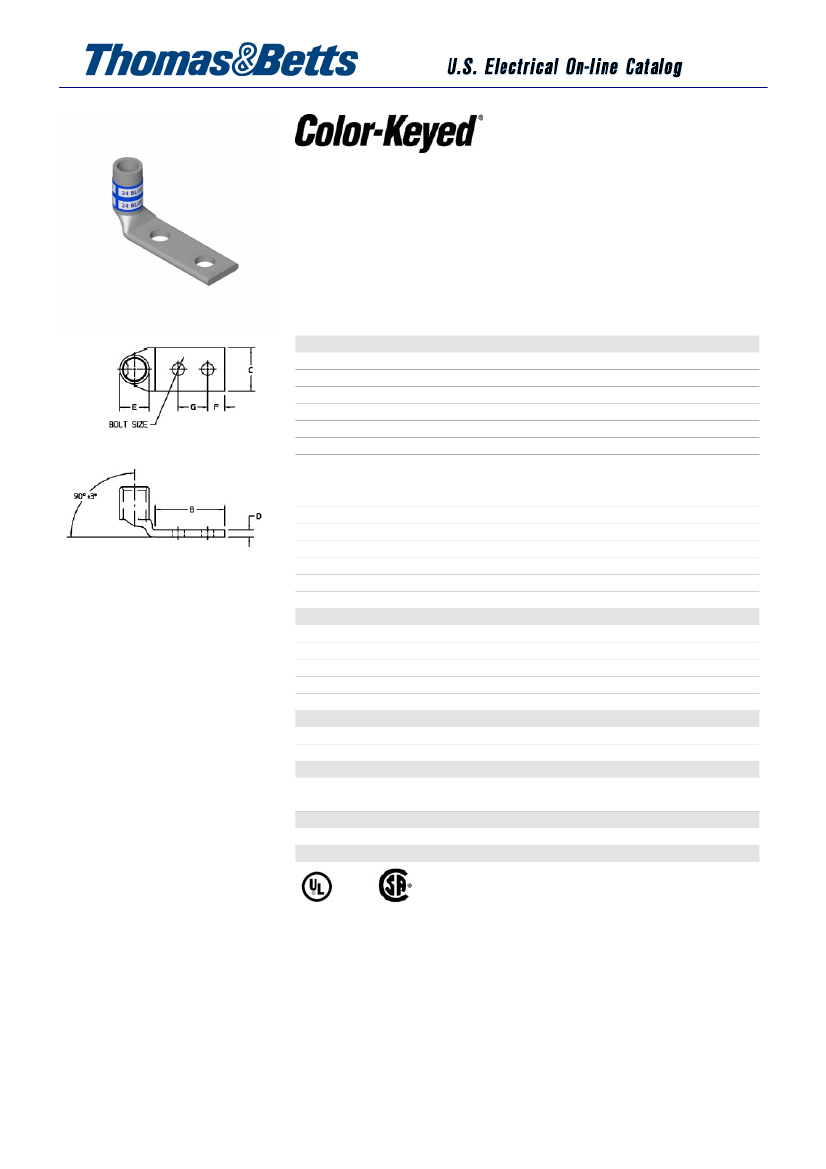

Preview

Download Datasheet

View All

T&B Catalog Number:

UPC Number:

Description:

54209UB

78621059485

Copper Two-Hole Lug - 90 degree Stan-

dard Barrel - max 35KV, 1/0 AWG Wire, 3/

8" Bolt Size, 1" Hole Spacing, Tin Plated

with Inspection Hole, Pink 42

Active

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Bolt Hole Spacing

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

1/0 AWG

2

3/8

1

90

Standard

Y

Standard

Round

Pink

42

10

100

Each

8.5 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Packaging

T&B Order Multiple

T&B Inner Pack

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809

For further technical assistance, please contact us...

Thomas & Betts - USA

8155 T&B Blvd.

Memphis, TN 38125

www.tnb.com

T&B Technical Support

MS 3B-50

8155 T&B Blvd.

Memphis, TN 38125

Hours: 7AM - 6PM CDT

Monday-Friday

Phone: (888) 862-3289

Fax: (901) 252-1321

Email:techsupport@tnb.com

54209UB Related Products

	54209UB
Description	Ring Terminal, 53.51mm2, ROHS COMPLIANT
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	53.51 mm2
Wire gauge	0 AWG
Base Number Matches	1
