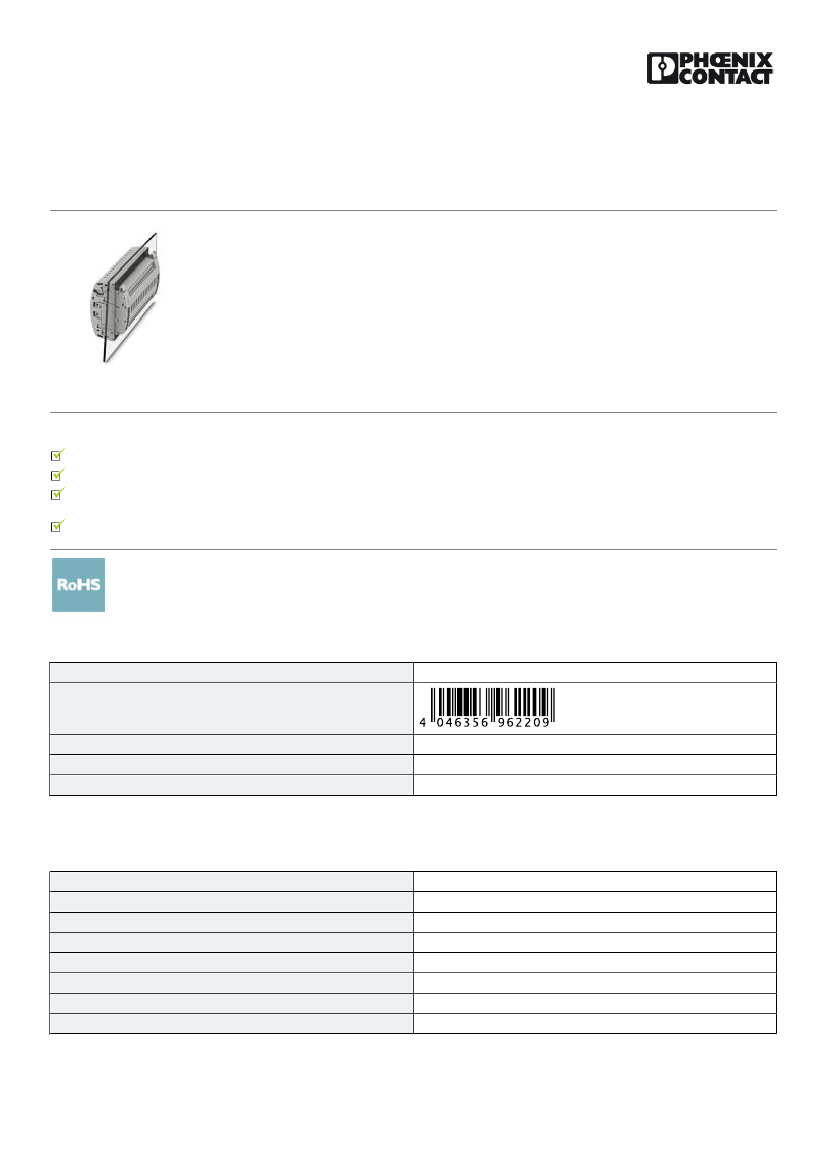

Test terminal strip - PTWE 6-2/21 - 3069844
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test terminal strip, Connection method: Push-in connection, Number of positions: 21, Cross section: 0.5
mm² - 10 mm², AWG: 20 - 8, Width: 205 mm, Height: 56.5 mm, Color: gray, Mounting type: Wall mounting
The illustration shows the 15-
position product version
Why buy this product
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to compact, modular test terminal strips
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the
transmission of signal currents, even after multiple actuations
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356962209
85369010
Made to Order (non-returnable)
1 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
21
1
42
21
6 mm²
gray
PA
V0
11/15/2016 Page 1 / 6
https://www.phoenixcontact.com/hq/products/3069844
Test terminal strip - PTWE 6-2/21 - 3069844
Technical data
General
Rated surge voltage
Overvoltage category
Insulating material group
Maximum load current
Current I
th
Nominal voltage U
N
Open side panel
Terminal block mounting
Insertion/withdrawal cycles mechanical
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
4 kV
III
I
30 A (with 6 mm² conductor cross section)
24 A
400 V AC/DC
No
0.8 Nm ... 1 Nm
100
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
4.8 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.5 mm² / 0.3 kg
6 mm / 1.4 kg
10 mm² / 2 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Test passed
0.5 mm²
30 N
6 mm²
80 N
10 mm²
90 N
Test passed
5N
Test passed
≤ 4.8 mV
Test passed
Test passed
4 mm²
0.5 kA
4 mm²
0.3 kA
11/15/2016 Page 2 / 6
2
https://www.phoenixcontact.com/hq/products/3069844
Test terminal strip - PTWE 6-2/21 - 3069844
Technical data
General
Conductor cross section short circuit testing
Short-time current
Result of aging test
Ageing test for screwless modular terminal block temperature cycles
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
4 mm²
0.15 kA
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
205 mm
11/15/2016 Page 3 / 6
https://www.phoenixcontact.com/hq/products/3069844
Test terminal strip - PTWE 6-2/21 - 3069844
Technical data
Dimensions
Length
Height
Plate thickness
Pitch
81 mm
56.5 mm
1 mm ... 4 mm
8.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Push-in connection
IEC 60947-7-1
0.5 mm²
10 mm²
20
8
0.5 mm²
6 mm²
10
8
0.5 mm²
0.5 mm²
6 mm²
0.5 mm²
1.5 mm²
12 mm
A5
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Assembly
Mounting type
Plate thickness
Min. tightening torque of the mounting screw:
Max. tightening torque of the mounting screw:
Wall mounting
1 mm ... 4 mm
0.8 Nm
1 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/15/2016 Page 4 / 6
https://www.phoenixcontact.com/hq/products/3069844
Test terminal strip - PTWE 6-2/21 - 3069844

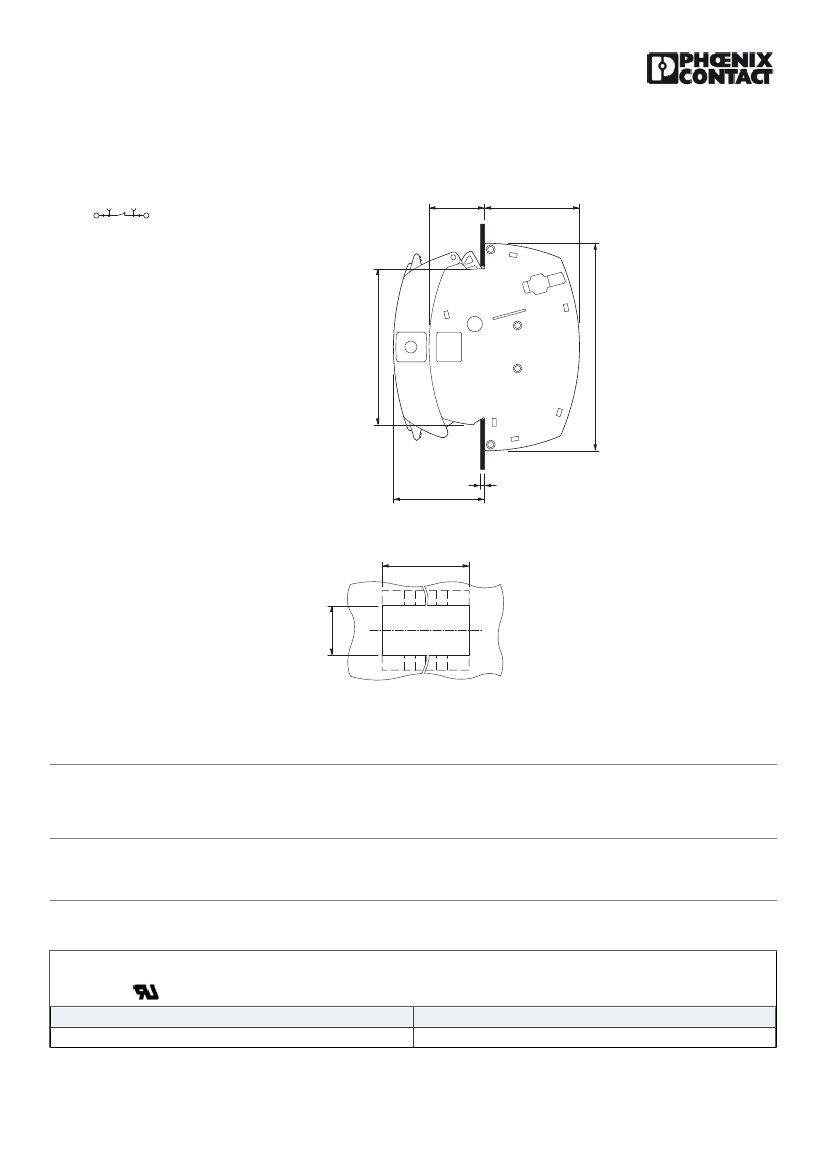

Circuit diagram
Dimensional drawing
22
34,5
61
35,7
1
4
Dimensional drawing
205
+0,5
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
20-8
11/15/2016 Page 5 / 6
62
+3
-1
81
