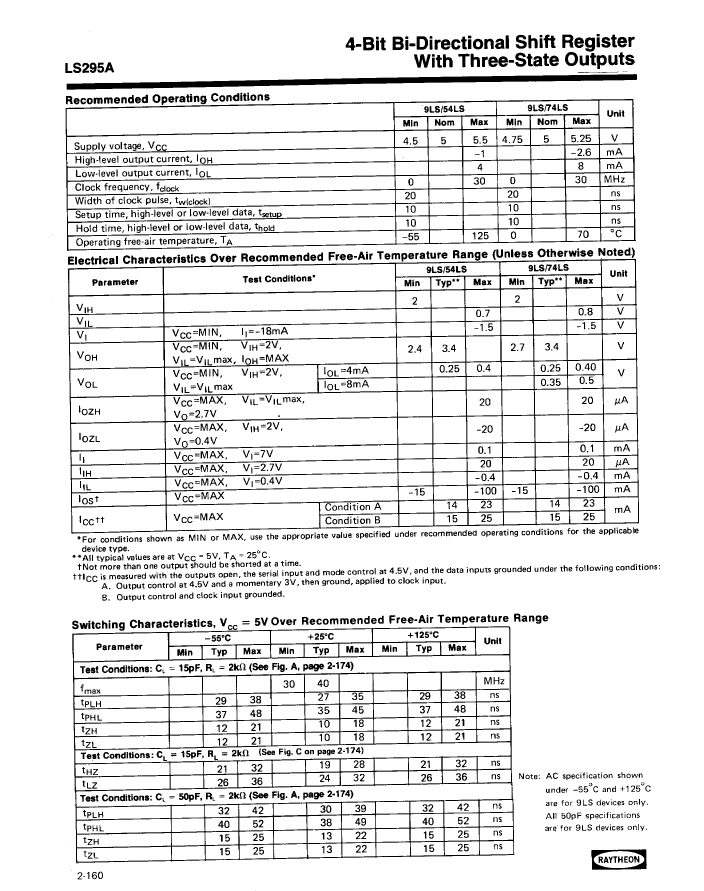

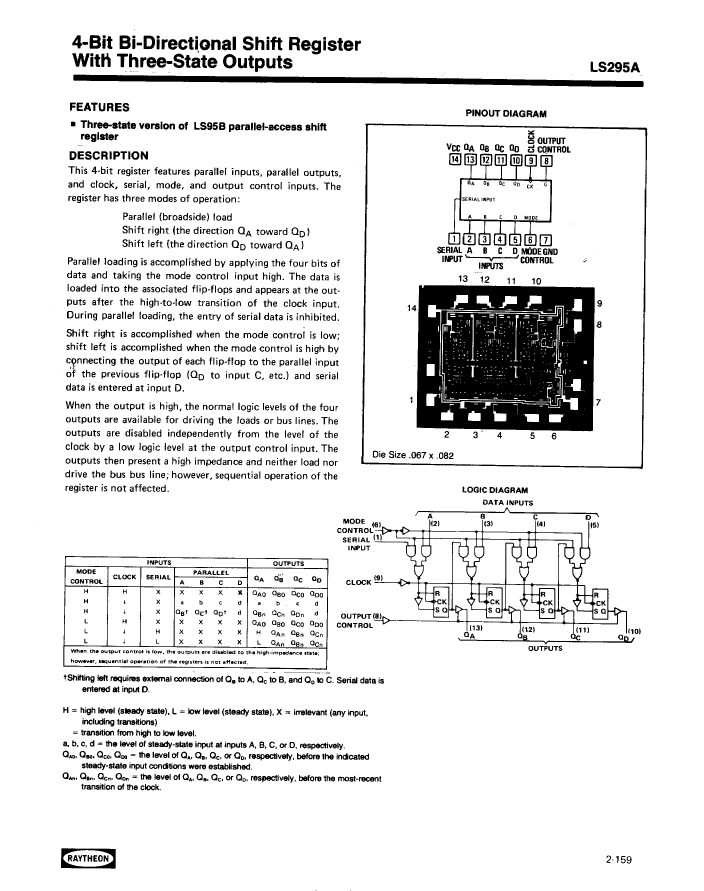

Shift Register, 4-Bit, TTL, CDIP14,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Raytheon Company |
| Reach Compliance Code | unknown |
| JESD-30 code | R-XDIP-T14 |
| JESD-609 code | e0 |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54LS295AJ | 54LS295AW03 | 54LS295AW | 54LS295AJ03 | 74LS295AJ | 74LS295AN | 74LS295ANA+1 | 74LS295ANA+2 | |
|---|---|---|---|---|---|---|---|---|
| Description | Shift Register, 4-Bit, TTL, CDIP14, | Shift Register, 4-Bit, TTL, CDFP14, | Shift Register, 4-Bit, TTL, CDFP14, | Shift Register, 4-Bit, TTL, CDIP14, | Shift Register, 4-Bit, TTL, CDIP14, | Shift Register, 4-Bit, TTL, PDIP14, | Shift Register, 4-Bit, TTL, PDIP14, | Shift Register, 4-Bit, TTL, PDIP14, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | R-XDIP-T14 | R-XDFP-F14 | R-XDFP-F14 | R-XDIP-T14 | R-XDIP-T14 | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DFP | DFP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP14,.3 | FL14,.3 | FL14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | FLATPACK | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO | NO | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | Raytheon Company | - | - | - | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company |
| power supply | 5 V | 5 V | - | - | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
| Base Number Matches | 1 | - | - | - | 1 | 1 | 1 | 1 |
