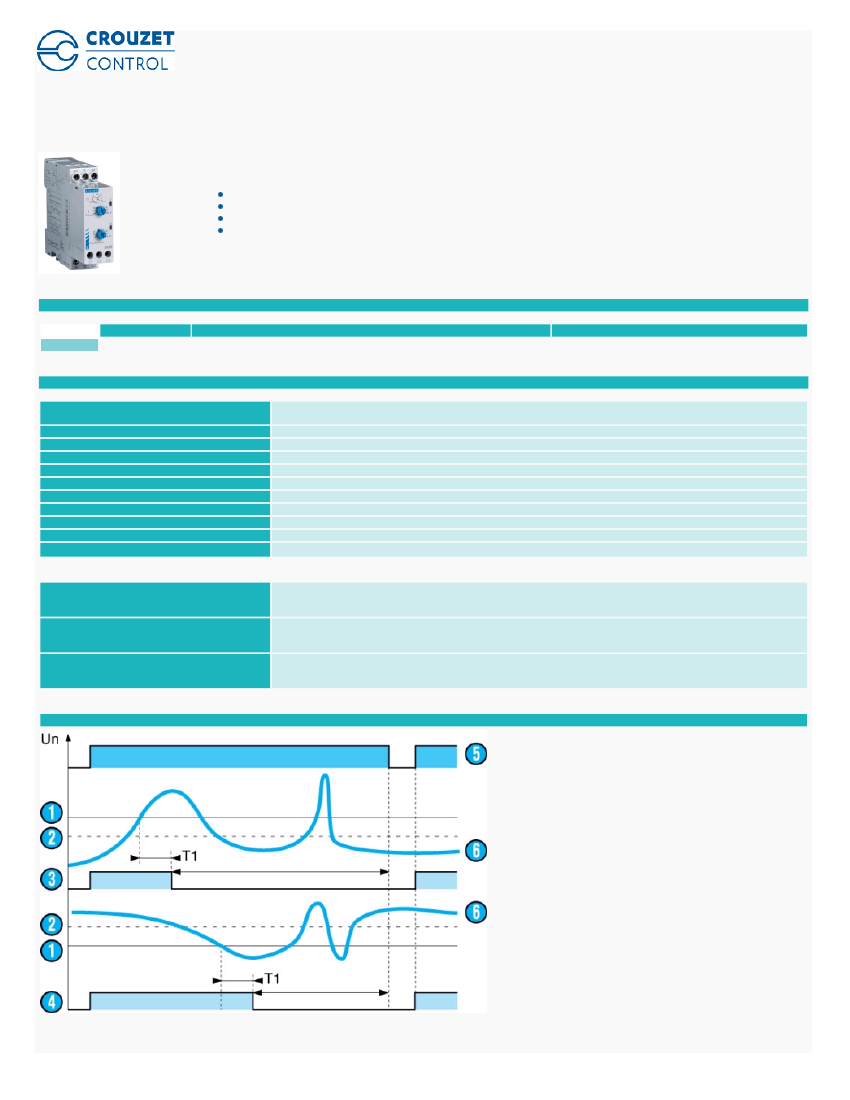

EUL/EUH AC/DC voltage control EUH Part number 84872034
Voltage monitoring
2 relays to cover 6 ranges of measurement : 0.2V to 600V
Automatic recognition AC/DC
Frequency up to 500 Hz
Part numbers
Type
84 872 034
EUH
Measurement range
15 →600 V
Supply voltage
230 V AC
Specifications
Supply voltage Un
Operating range
Maximum power consumption
Frequency of measured signal
Threshold Ue
Hysteresis
Display precision
Delay on thresold crossing Tt
Output relay
Temperature Use (°C)
Storage temperature (
0
C)
24 V, 120 V, 230 V, 50/60 Hz (galvanic isolation via transformer)
24 V (no galvanic isolation). In this case, the product power supply and measuring circuit power supply must be electrically isolated.
0,85 1,15 Un
3 VA / 1 W
40 500 Hz
Adjustment from 10 to 100 % of the measurement range
Adjustment from 5 to 50 % of the displayed threshold
± 10 % of the full scale
0,1 3 s ±10 %
1 AgNi changeover, 8 A max
-20 →+60
-30 →+70
Inputs
Sensitivity
Input resistance
E1-M
E2-M
E3-M
E1-M : 15 to 150V
E2-M : 30 to 300V
E3-M : 60 to 600V
E1-M : 100kΩ
E2-M : 300kΩ
E3-M : 600kΩ
Principles

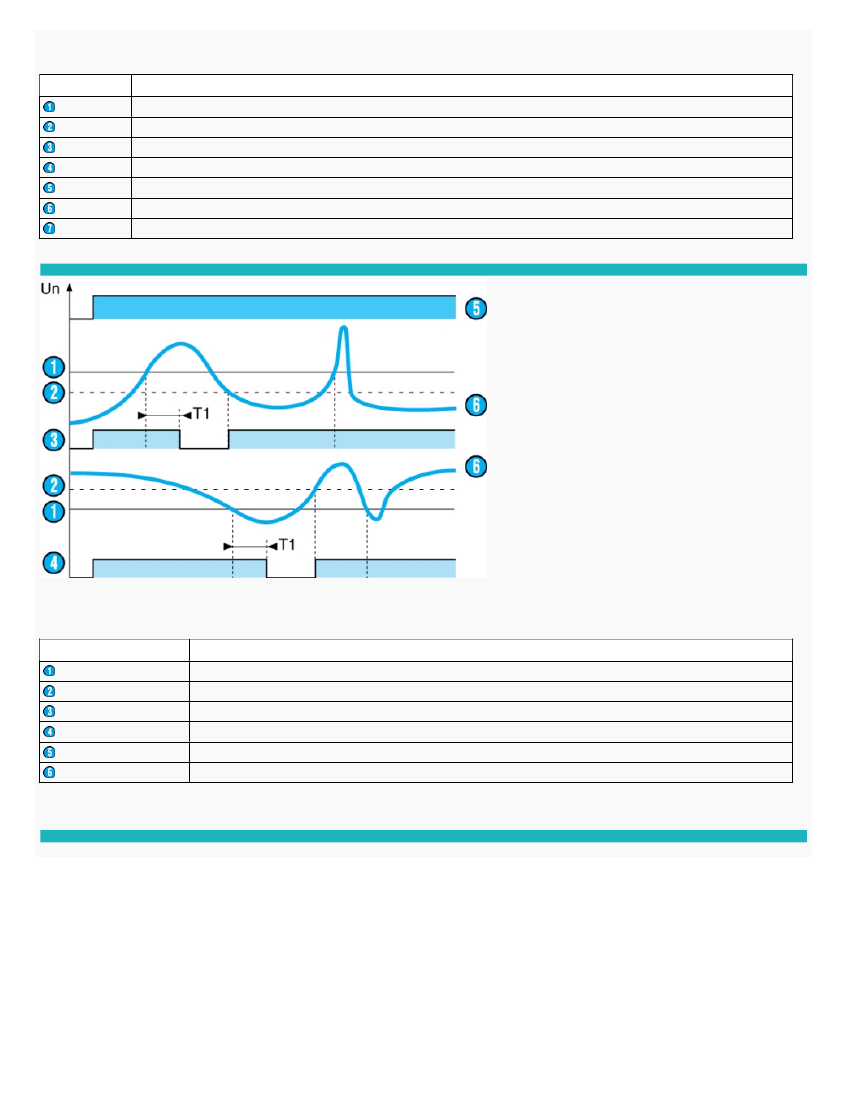

When the value of the controlled voltage, AC or DC, reaches the treshold Ue displayed on the front face, the output relay changes state at the end of a time delay T1, which can be set on the front
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
23/06/2014
www.crouzet.com
face at between 0.1 and 3s.
Once the voltage drops below 5 to 50 % of the treshold (hysteresis), the output relay changes state again instantly. Changing the hysteresis onthe front face does not therefore modify the value of
the preset treshold.
N
o
Legend
Treshold Ue
Hysteresis
UPPER function
UNDER function
Unit power-up
Controlled voltage
*** TRADUCTION MANQUANTE ***
Principles
When the value of the controlled voltage, AC or DC, reaches the treshold Ue displayed on the front face, the output relay changes state at the end of a time delay T1, which can be set on the front
face at between 0.1 and 3s and remains latched in this position.
N
o
Legend
Treshold Ue
Hysteresis
UPPER function
UNDER function
Unit power-up
Controlled voltage

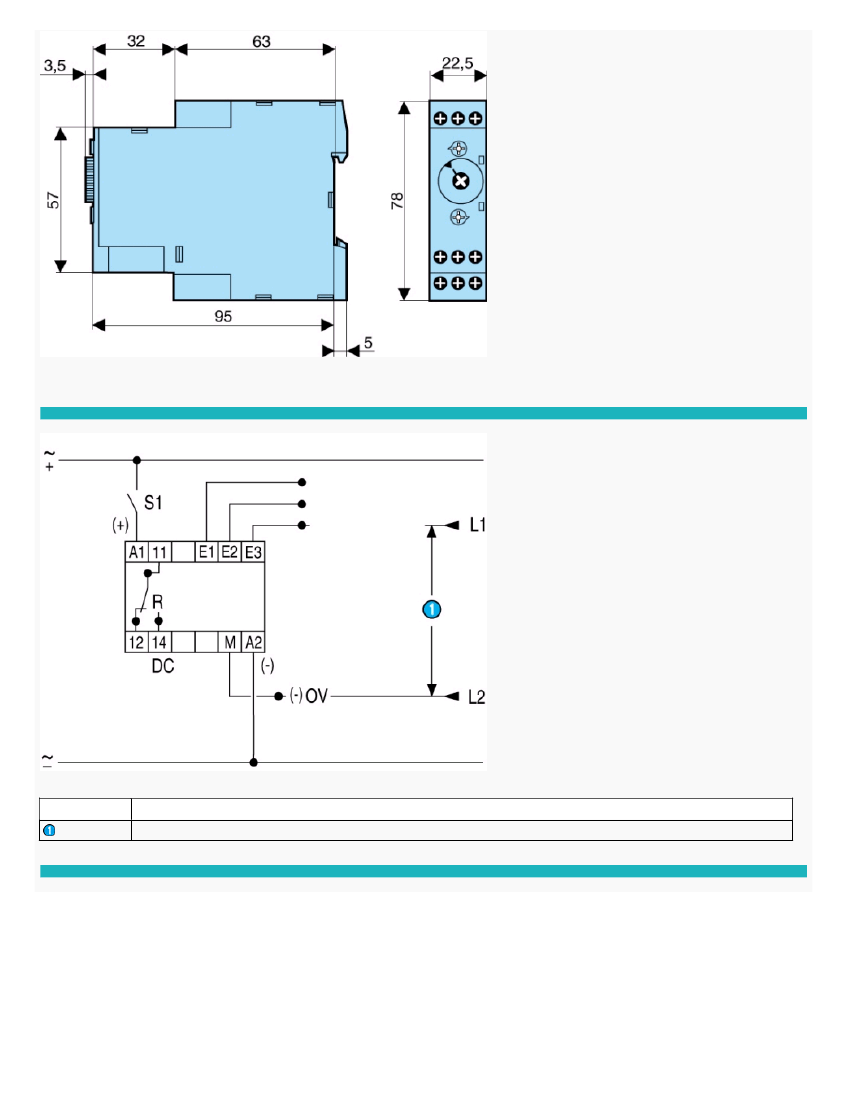

Dimensions (mm)
EUL / EUH
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
23/06/2014
www.crouzet.com
Connections
CA EUHDU_C01
N
o
Legend
*** TRADUCTION MANQUANTE ***

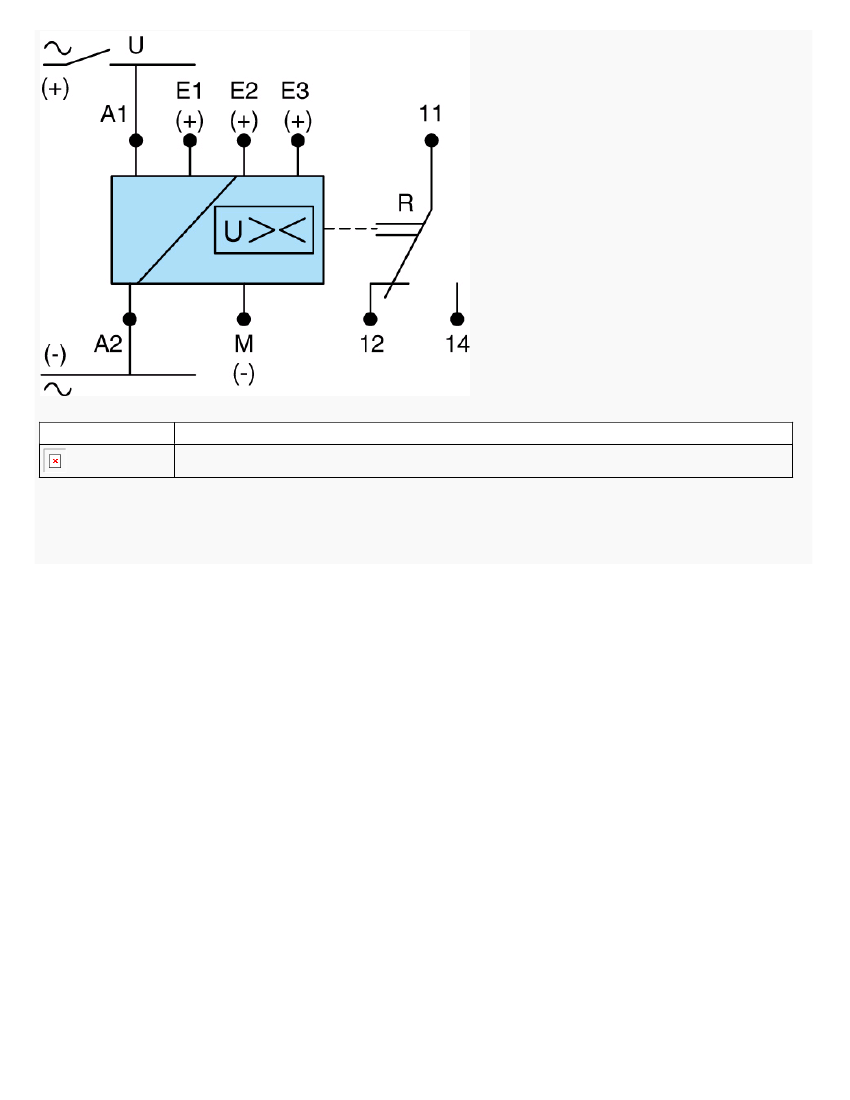

Connections
CA EULH_C01
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
23/06/2014
www.crouzet.com
N
o
Legend
*** TRADUCTION MANQUANTE ***
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
