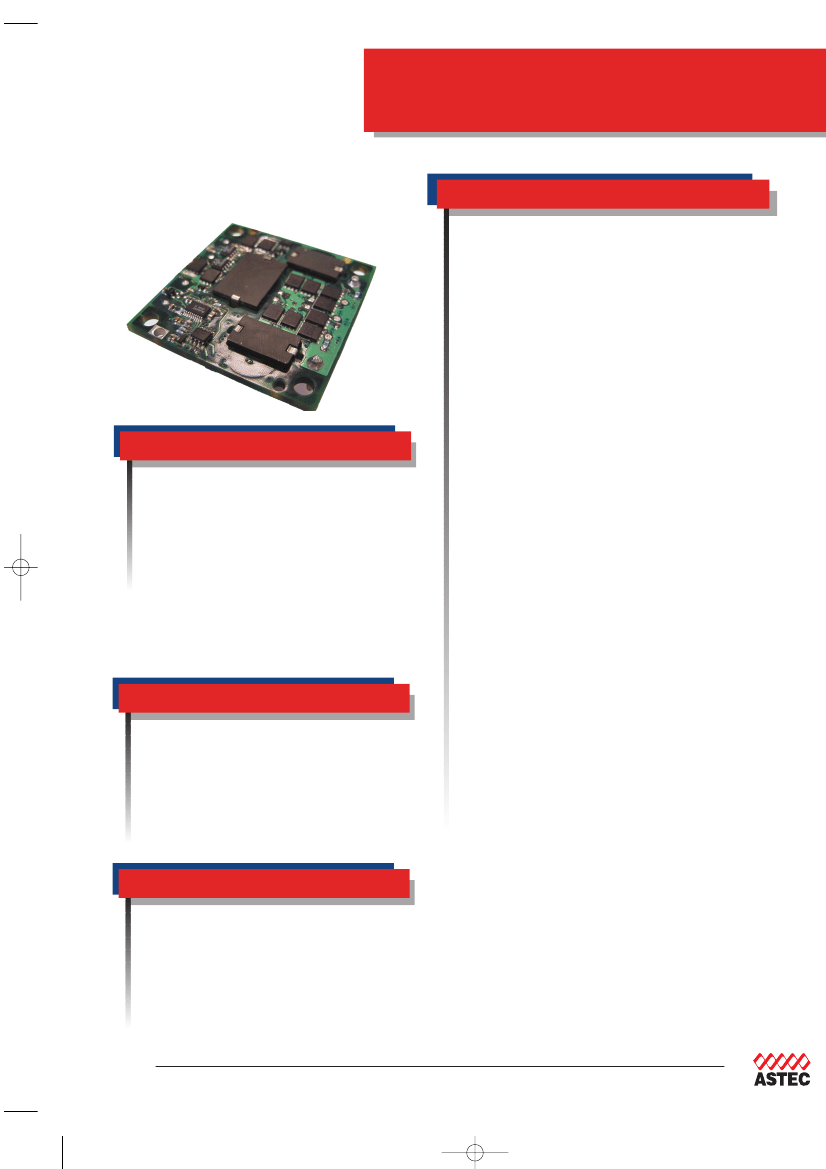

Astec Industry Standard
250 Watts
High Efficiency
PRELIMINARY
AEH60
ALH60
(Open Frame)
Total Power:
Input Voltages:
No. of Outputs:
250 Watts
48 V
Single
Electrical Specs
Input
Input range
Input Surge
Efficiency
36-75 VDC
100V / 100ms
91%@3.3V (Typical)
Control
Enable
TTL compatible
(positive & negative enable options)
Output
Regulation
(Line, Load, Temp)
<2%
2% typical (100mV p-p max)
Up to 10%Vout
+/-10% of nominal output
4% max deviation with
50% to 75% full load
300 µS (max) recovery
130% nominal output
Special Features
• High efficiency, 3.3V@91% (Typical)
• -40°C to 100°C baseplate operating
temperature
• Open Frame version also available (ALH60)
• Positive and Negative enable function
• Low output ripple and noise
• High capacitive load limit on start-up
• Remote sense compensation
• Regulation to zero load
• Fixed frequency switching (400 kHz)
Ripple and noise
Remote sense
Output voltage
adjust range
Transient Response
Overvoltage Protection
Environmental
Operating temperature (baseplate):
-40°C to +100°C
Storage temperature: -55°C to +105°C
Overtemperature protection: 115°C typical
MTBF: >1 million hours
Safety
UL, CUL
1950 Recognized
TUV
EN60950 Licensed
14
America’s (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
Ordering Information
Input
Output
Voltage Voltage
48V
48V
48V
48V
48V
48V
48V
48V
3.3V @ 60A
2.5V @ 60A
1.8V @ 60A
1.2V @ 60A
3.3V @ 60A
2.5V @ 60A
1.8V @ 60A
1.2V @ 60A
Efficiency
Full Load
88% (Min) 100°C
86% (Min) 100°C
84% (Min) 100°C
82% (Min) 100°C
88% (Min) 85°C
86% (Min) 85°C
84% (Min) 85°C
82% (Min) 85°C
Model Number
Availability
AEH60F48
AEH60G48
AEH60Y48
AEH60K48
ALH60F48
ALH60G48
ALH60Y48
ALH60K48
Now
Samples Available March, 2002
Samples Available January, 2002
Samples Available March, 2002
Now
Samples Available March, 2002
Samples Available January, 2002
Samples Available March, 2002
Pin Assignments
See note below
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
9.
-Vin
Case
Enable (on/off)
+Vin
-Output
- Sense
Trim
+ Sense
+Output
Notes:
1. 20 mHz bandwidth. External 10 uF tant. capacitor + 0.1 uF cer.
capacitor placed from +V out to -V out.
2. Requires a 2.2 mf, 100V film capacitor connected between +V in
and -V in to meet FCC class A and ETS300-386-1 requirements for
conducted noise. Consult Factory for filtering information to
meet FCC class B, VDE or EIC specifications.
3. All specifications are typical at nominal line, full load, and 25°C
unless otherwise noted.
4. All specifications subject to change without notice. Mechanical
drawings are for reference only.
5. Technical Reference Notes should be consulted for detailed
information when available.
6. Warranty: 1yr

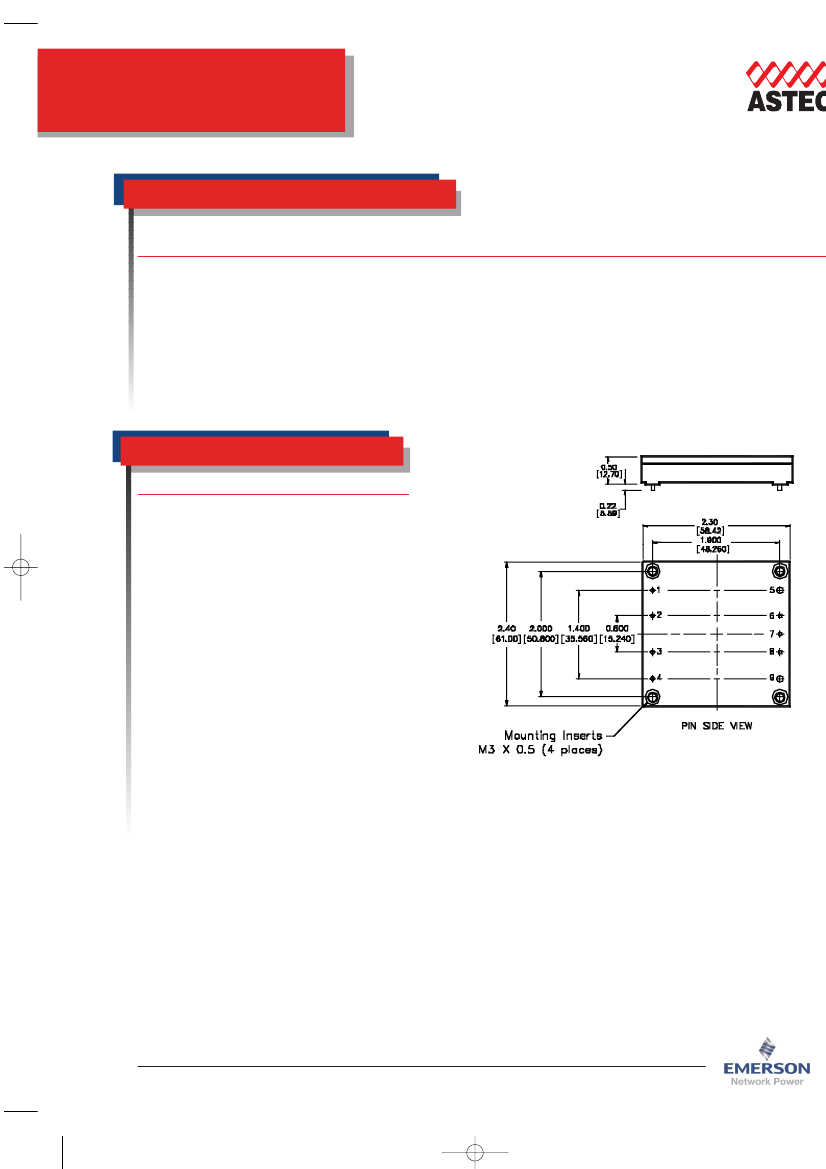

Standard height
Pins 5 & 9 are 0.080” in diameter
Note:
ALH = 0.4” height
AEH = Standard height 0.5”
with Heatsink assembly
