Pushbutton Switches MCS 19 Metallic Au STE.BES.

12412815071 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SCHURTER
Product Category	Pushbutton Switches
Product	Standard Switches
Type	Anti-Vandal
Contact Form	SPST
Switch Function	OFF - (ON)
Current Rating	125 mA
Voltage Rating DC	48 VDC
Mounting Style	Through Hole
Termination Style	Solder Pin
Actuator	Flush
Contact Plating	Silver
Housing Material	Zinc Die Cast
Illumination	None
Terminal Seal	Sealed
Factory Pack Quantity	10
Unit Weight	0.312880 oz

Preview

Download Datasheet

View All

Metal Line Switches

https://www.schurter.com /PG70

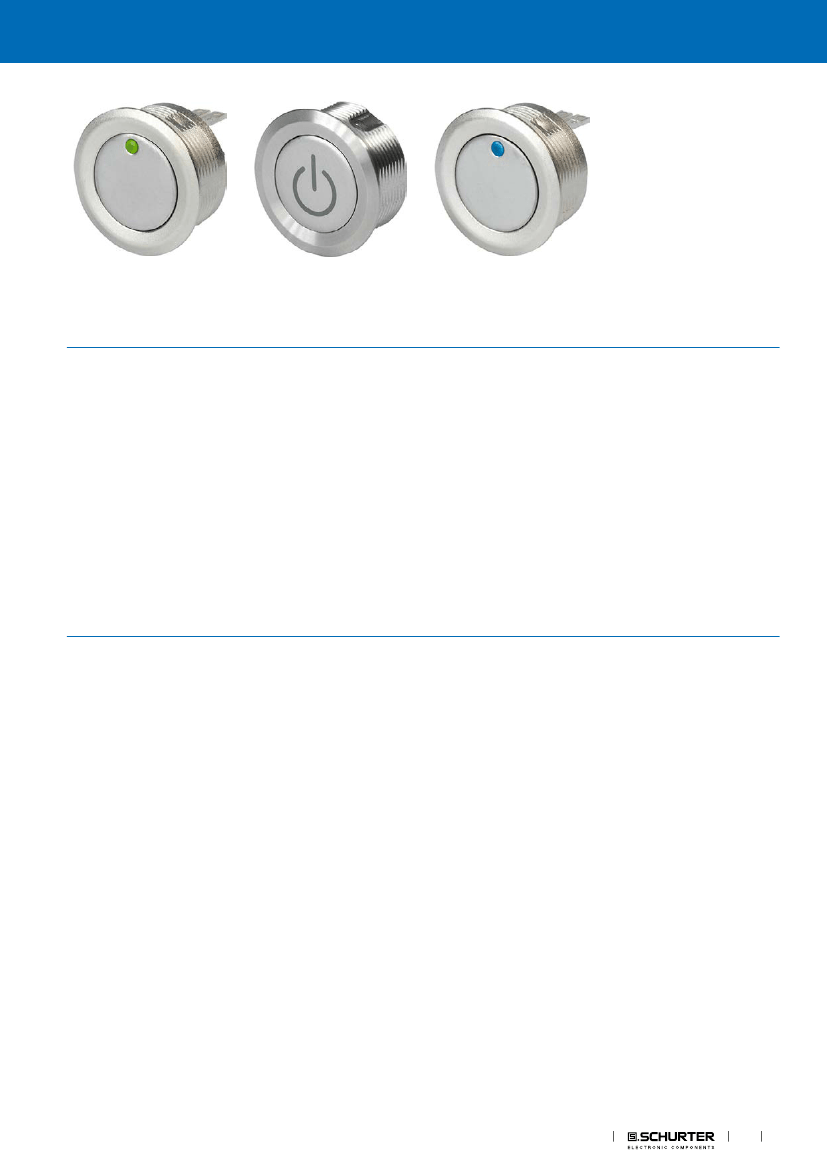

MCS 19

Metal Switch Short Stroke

See below:

Approvals and Compliances

Description

- Momentary action switch available in version Standard, with Point Illu-

mination, Lettering, varnished in different colours

Assembly by mounting with nut

- Pin connections, Pins with Soldering Aid or Clip for Pins

Characteristics

- Housing and actuator material types: zinc die-cast with nickel plating

or stainless steel

- Wide range of materials, colours, lettering, colours of illumination

- Switching voltage 48 VDC, switching current 125 mA

- Zinc die-cast for housing and actuator

For indoor use, no illumination, no lettering

- Stainless Steel for actuator

Optional point illumination and laser lettering with standard or custo-

mer-specific symbols

- Stainless Steel for housing and actuator

for use in harsh environments outdoors (see technical data)

- Varnished Version

Colour adjustments to customer housings possible, as standard:

Signal colors red, green and yellow, optional: housing or actuator var-

nishing according to provided color specifications

the varnished actuators are sealed by transparent lacqueur after the

laser lettering

Weblinks

html-datasheet, General Product Information, CAD-Drawings, Product

News, Detailed request for product

Switches

12412815071 Related Products

	12412815071	12412855071	12412856071	12412807071
Description	Pushbutton Switches MCS 19 Metallic Au STE.BES.	Pushbutton Switches MCS 19 Metallic Ag LTE.bel.rt	Pushbutton Switches MCS 19 Metallic Ag LTE.bel.gn	Pushbutton Switches MCS 19 Metallic Ag SAE.
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	SCHURTER	SCHURTER	SCHURTER	SCHURTER
Product Category	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches
Product	Standard Switches	Standard Switches	Standard Switches	Standard Switches
Type	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal
Contact Form	SPST	SPST	SPST	SPST
Switch Function	OFF - (ON)	OFF - (ON)	OFF - (ON)	OFF - (ON)
Current Rating	125 mA	125 mA	125 mA	125 mA
Voltage Rating DC	48 VDC	48 VDC	48 VDC	48 VDC
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole
Termination Style	Solder Pin	Solder Pin	Solder Pin	Solder Pin
Actuator	Flush	Flush	Flush	Flush
Contact Plating	Silver	Silver	Silver	Silver
Housing Material	Zinc Die Cast	Zinc Die Cast	Zinc Die Cast	Zinc Die Cast
Illumination	None	LED	LED	None
Terminal Seal	Sealed	Sealed	Sealed	Sealed
Factory Pack Quantity	10	10	10	10
Unit Weight	0.312880 oz	0.317466 oz	0.318877 oz	0.372846 oz
IP Rating	-	IP65	IP65	IP65
