565-0721 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 565-0721

565-0721: DescriptionSwitch Hardware BARRIER; CategoryTopical application Mechanical and electrical/engineering/automation; File Size31KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

565-0721 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	565-0721	-	-	View	Buy Now

565-0721 Overview

Switch Hardware BARRIER

565-0721 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	DIALIGHT
Product Category	Switch Hardware
RoHS	Details
Product	Hardware
Type	Spacer
For Use With	Pushbutton Switches
Designed for	565 Series
Packaging	Bulk
Height	13.97 mm
Illumination	None
Length	21.44 mm
Material	Plastic
Width	3.96 mm
Mounting Style	Panel
Factory Pack Quantity	10

Preview

Download Datasheet

View All

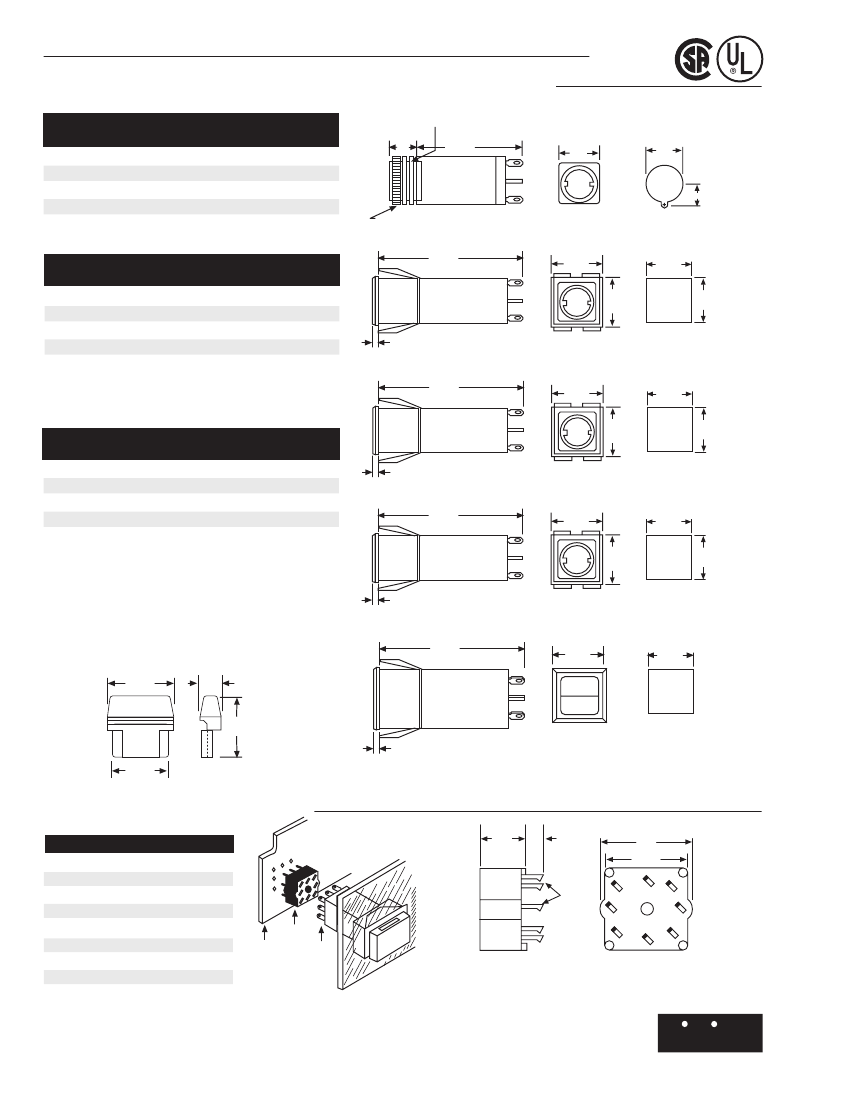

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

554 SERIES SOLID STATE, HALL EFFECT SWITCHES

MOMENTARY ACTION 4.5 VDC TO 16 VDC

SIDE VIEW

12.70 [.500] 32 UNS - 2A THD.

PART NO.

554-7321

554-7321-211

554-7321-411

554-7321-511

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" SQ.

3/4" X 1"

CONTACT

CIRCUIT

SPST N.O.

FRONT

VIEW

15.88

[.625]

SQ.

MOUNTING

HOLE

12.70

±.005

[.500±..13

FIG

6.78

[.267]

37.85

[1.490]

MAX

Uses:

T-1 3/4

MIDGET

FLANGE BASE

INCANDESCENT

LAMP

554 SERIES INDICATORS

PART NO.

554-0001

554-0001-211

554-0001-411

554-0001-511

554-4001-411

KNURLED FLANGE NUT 2.39 [.094]

X 16.51 [.658] MAX O.D.

52.83

[2.080]

MAX

6.73±.05

.265±.002

FIG 1

21.44

[.844]

19.18

[.755]

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" SQ.

3/4" X 1"

DUAL LAMP

FIG

21.44

[.844]

19.18

[.755]

1.78

[.070]

52.83

[2.080]

MAX

FIG 2

24.61

[.969]

22.35

[.880]

Caps Ordered Separately, see Page 25

565 SERIES BARRIERS

PART NO.

565-0701

565-0711

565-0721

565-0731

DESCRIPTION

5/8" END BARRIER

5/8" CENTER BARRIER

3/4" END BARRIER

3/4" CENTER BARRIER

FOR USE WITH

BEZEL SUFFIX

-211 OR -311

-411 OR -511

1.78

[.070]

52.83

[2.080]

MAX

24.61

[.969]

22.35

[.880]

FIG 3

30.45

[1.199]

28.19

[1.110]

GENERAL INFORMATION:

Barriers may be used with Snap-In Bezel Mounting Switches to

provide safer separation between switch caps, thereby minimizing

accidential actuation of the wrong switch. "End" and "center" barrier

are used if two or more switches are mounted in common hole cutout.

For individual switch mounting, two end barriers are used.

INSERTION:

The barriers are held to the side of the switch by hand and inserted

as one unit. The end or side barrier becomes captured upon insertion

into a panel and appear to be one complete assembly.

21.44

[.844]

3.96

[.156]

24.36

[.959]

22.10

[.870]

1.78

[.070]

52.83

[2.080]

MAX

FIG 4

24.61

[.969]

SQ.

22.35±.13

[.880±.005]

SQ.

13.97

[.550]

18.97

[.747]

565-0701 SHOWN

1.78

[.070]

FIG 5

501 SERIES PCB SOCKETS

WAVE SOLDERABLE PCB SOCKETS FOR 554 SWITCHES

PART NO.

501-1001

501-2001

501-1001

501-2001

501-1002

501-2002

501-1002

FOR SWITCH

554-00

554-11

554-12

554-21

554-22

554-31

554-32

554-73

8.84

[.348

MAX]

3.43

[.136]

17.45

[.687]

15.88

[.625] SQ.

TERMINALS

SOCKET

PC BOARD

554

SWITCH

PANEL

Material: All plastic switch components made from 94V-0 plastic

Neon and incandescent lamp information on Pages 35 and 36.

Dimensions in mm [inches]

Dialight

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
