DMX710
DMX512 Transmitter with 6/8/12 digital or analoge inputs
FEATURES
•
•
•
•
•
•
5V SUPPLY VOLTAGE
TRANSMIT DMX512 SIGNAL
CASCADEABLE FOR MORE INPUTS
UP TO 12 DIGITAL INPUTS
UP TO 6 ANALOGE INPUTS
PACKAGE: DIL28S
DESCRIPTION
The DMX710 is an DMX512 transmitter with digital inputs. The values of the output
signal are 0 or 255 in digital mode and 0 – 255 in analoge mode, dependent on the
input signal. With the BLACKOUT input it is possible to set all DMX output channels
to 0.
To combine some DMX710 chips, connect the DMX output with the DTC input (DMX
transmitter chain) from the next chip. More informations about the DTC you can find
in the separate document.
PIN CONFIGURATION
RST
DTC IN
DMX OUT
LED
BLACKOUT
FCAI
VCC
IN 6
IN 5
IN 4
IN 3
IN 2
IN 1
GND
VCC
analoge
and/or
digital
inputs
DTC in
DMX710
DMX out
DMX710
GND
X0
X1
MODE 0
MODE 1
INV INPUT
IN 7
VCC
VCC
MODE
IN 12
IN 11
IN 10
IN 9
IN 8
RST
GND
© 2005 Markus Siwek
WWW.DMX4ALL.DE
1
DMX710
PIN DESCRIPTION
MNEMONIC
RST
PIN
1
TYPE NAME AND FUNCTION
I
RESET
Reset input. A low level on this pin for more then 50ns will
generate a reset, even if the clock is not running. Shorter pulses
are not guaranteed to generate a reset
DTC-SIGNAL
Input for the DMX Transmitter Chain (DTC). If not used, this pin
must connect to GND.
DMX-SIGNAL
Output for the DMX512 signal
POWER
This is the power supply
GROUND
0V reference
XTAL0
Input from the inverting oscillator amplifier
XTAL1
Output from the inverting oscillator amplifier
STATUS LED
LED output. This pin can sink 20mA to drive a LED.
DIGITAL/ANALOG INPUT 1
Input for the DMX value 1
DIGITAL/ANALOG INPUT 2
Input for the DMX value 2
DIGITAL/ANALOG INPUT 3
Input for the DMX value 3
DIGITAL/ANALOG INPUT 4
Input for the DMX value 4
DIGITAL/ANALOG INPUT 5
Input for the DMX value 5
DIGITAL/ANALOG INPUT 6
Input for the DMX value 6
DIGITAL INPUT 7
Input for the DMX value 7
DIGITAL INPUT 8
Input for the DMX value 8
DIGITAL INPUT 9
Input for the DMX value 9
DIGITAL INPUT 10
Input for the DMX value 10
DIGITAL INPUT 11
Input for the DMX value 11
DIGITAL INPUT 12
Input for the DMX value 12
BLACKOUT
Input to set
all
DMX-Outputs to 0
MODE 0 ; MODE 1
Select number of inputs
(11: 6 channels / 10: 8 channels / 01: 12 channels )
FIRST CHANNELS ANALOGE INPUTS
Input to set IN1-6 to analoge inputs (H→analog/L→digital)
INVERT INPUTS
Input to select the polarity of the digital inputs 1-12
and
BLACKOUT
DTC IN
2
I
DMX OUT
VCC
GND
X0
X1
LED
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
IN 8
IN 9
IN 10
IN 11
IN 12
BLACKOUT
MODE 0,1
3
7;20;21
8;22
9
10
4
23
24
25
26
27
28
14
15
16
17
18
19
5
11;12
O
I
I
I
O
O
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
FCAI
INV INPUT
6
13
IN
IN
© 2006 Markus Siwek
WWW.DMX4ALL.DE
2
DMX710
ELECTRICAL CHARACTERISTICS
Parameter
VCC
ICC
VIH1
VIH2
VIL
fOSZ
Description
Operating Supply Voltage
Operating Sypply Current
Input High Voltage
Input High Voltage
Input Low Voltage
Oszillator Frequency
Min Typ Max
3,5 5
5,5
0,6
0,9
-0,5
8
Units Conditions
V
mA
VCC+0,5
V
VCC+0,5
V
RESET Pin
0,2
V
MHz
Absolute Maximum Ratings
Operating Temperature
Storage Temperature
Voltage on any Pin except RESET
with respect to Ground
Voltage on RESET with respect to Ground
Maximum Operating Voltage
DC Current per I/O Pin
DC Current VCC and GND Pins
-55°C to +125°
-65°C to +150°C
-0.5V to VCC+0.5V
-0.5V to +13.0V
6.0V
40.0 mA
200.0 mA
Error-Codes
The LED display internal errors. The error code is the number of flashes between 2 long
times the LED is off.
Error-Code
3
Description
No valid DTC signal is recognize at the DTC INPUT.
© 2005 Markus Siwek
WWW.DMX4ALL.DE
3
DMX710
DEVICE CONFIGURATION EXAMPELS
Oscilator Configurations
C1
X0
C2
Q1
X1
GND
This example illustrates how to use the DMX710 with a 8MHz crystal. The value of
the capacitors should be in the range of 12-33pF.
Digital And Analog Input Configuration
VCC
DIGITAL IN
ANALOG IN
Some of the pins of the DMX710 can be used as digital or analog inputs. In the digital
mode you have to connect a switch to GND. The analoge mode permit a signal from
GND to VCC.
DMX Interface Configuration
8Mhz
Oszillator
X0
DTC IN
DMX OUT
DTC IN
X0
DMX OUT
DMX710
DMX710
SN75176
The DMX710 is cascadeable, as the DMX exit is connected with the DTC entrance of
the next component. The last DMX exit goes to a line driver. It is possible to use one
oszillator for all DMX710.
© 2005 Markus Siwek
WWW.DMX4ALL.DE
4
DMX710

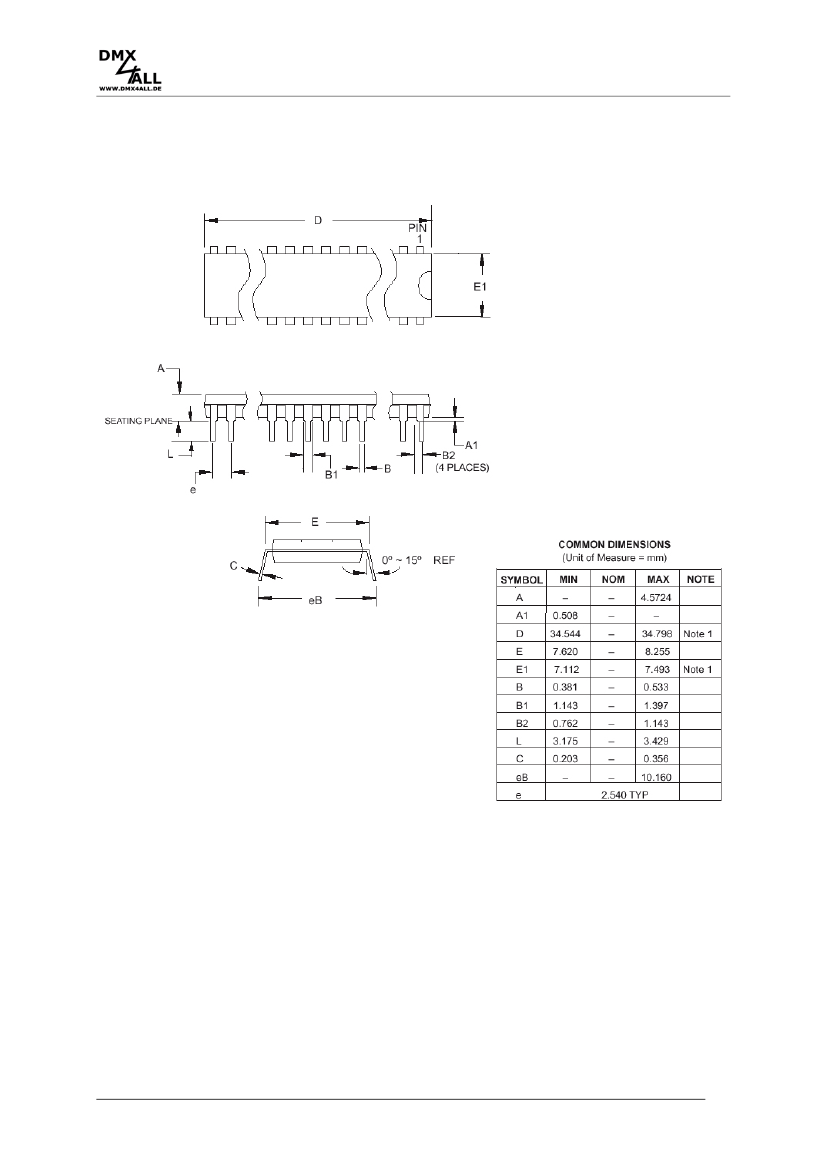

PACKAGING INFORMATIONS
© 2005 Markus Siwek
WWW.DMX4ALL.DE
5
