DMR08TTR: DescriptionSwitch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD T/R; File Size76KB，2 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

DMR08TTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMR08TTR	-	-	View	Buy Now

DMR08TTR Overview

Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD T/R

DMR08TTR Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8536.50.90.65
Type	DIP Switch
Actuator Style	Recessed Slide
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	8
Maximum Current Rating (A)	0.025@24VDC
Maximum Nonswitching Current (mA)	100
Maximum DC Voltage Rating (V)	24
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	2000
Mechanical Life (Cycles)	2000
Actuator Length (mm)	0
Seal	Tape(Kapton)/Molded-In
Seal Location	Top/Terminals
Seal Description	Tape(Kapton)/Molded-In
Mounting	Surface Mount
Termination Style	Gull Wing
Terminal Pitch (mm)	2.54
Number of Terminals	16
Total Pitch (mm)	17.78
Row Space (mm)	8.9
Body Orientation	Straight
Minimum Operating Temperature (°C)	-20
Maximum Operating Temperature (°C)	85
Packaging	Tape and Reel
Body Length (mm)	21.26
Body Depth (mm)	6.2
Body Height (mm)	3
Product Length (mm)	21.26
Product Depth (mm)	9.8
Product Height (mm)	3.7

Preview

Download Datasheet

View All

NDI & DM SERIES

SPST STANDARD DIP SWITCHES

GENERAL SPECIFICATIONS

ELECTRICALS

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES

High reliability.

Self-cleaning contacts.

Multi- positions.

Process compatible with tape seal.

Dual in-line .100" x .300" term. spacing.

Electrical life

Contact rating, non-switching

Contact rating, switching

Contact resistance at current 100 mA

Insulation resistance at

500

VDC

Dielectric strength

Capacitance

MECHANICALS, THERMALS

Mechanical life

Operating force

Vibration

Shock

Operating temperature range

2000 cycles min. per switch @ 24 VDC, 25 mA

100 mA at 50 VDC

25 mA at 24 VDC

50 milliohms max. initial - 100 milliohms max. after life test

100

Megohms

minimum

500 VAC for 1 minute

5 pf. max. between adjacent terminals

2000 cycles min. per switch

1000 grams max.

10-55 Hz.per MIL-STD-202F METHOD 201A

50 G (peak value) for 11 msec. per MIL-STD-202F, METHOD 213B

-20°C to 85°C

SOLDERING & CLEANING RECOMMENDATIONS*

Hand soldering

350°C max. for 2 seconds max.(30 watt iron max.)

Wave soldering

260°C max. for 5 seconds max.

Cleaning (with tape seal)

Spray wash from top side only.

Note: keep switches in “OFF” position during soldering and cleaning for best results

MATERIALS

Base & Cover

Actuators

Contacts

Terminals

Term. Sealing

Tape seal

NDI: UL94V-O, glass fiber filled PBT, black

DM: UL94V-O, glass fiber filled PPS, black

UL94V-O, Nylon, white

Gold over nickel plated copper alloy

Gold plated brass.

Molded-in

Kapton

PACKAGING

DIP switches are shipped in standard IC tubes with all actuators in the "OFF" position.

Tape & reel packaging per EIA available for DMR models (see next page).

SWITCH

CROSS

SECTIONS

Double

contact system

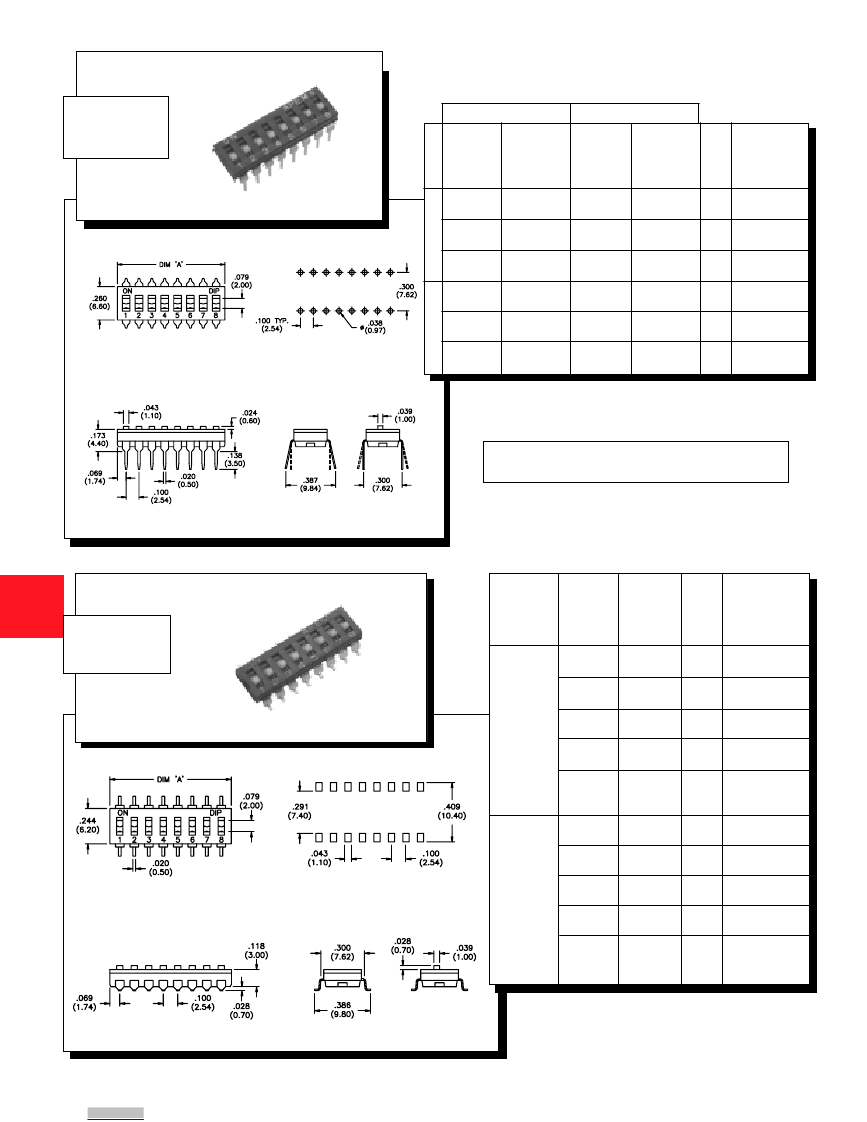

SCHEMATIC (TYPICAL)

DI & DM

See tabulations on following pages for

number of positions available (10 shown)

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

DMR08TTR Related Products

	DMR08TTR	DMR08T	DMR02TTR
Description	Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD T/R	Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD Tube	Switch DIP OFF ON SPST 2 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD T/R
EU restricts the use of certain hazardous substances	Compliant with Exemption	Compliant with Exemption	Compliant
ECCN (US)	EAR99	EAR99	EAR99
Part Status	Unconfirmed	Unconfirmed	Active
Type	DIP Switch	DIP Switch	DIP Switch
Actuator Style	Recessed Slide	Recessed Slide	Recessed Slide
Pole Throw Configuration	SPST	SPST	SPST
Switch Configuration	OFF ON	OFF ON	OFF ON
Number of Positions	8	8	2
Maximum Current Rating (A)	0.025@24VDC	0.025@24VDC	0.025@24VDC
Maximum Nonswitching Current (mA)	100	100	100
Maximum DC Voltage Rating (V)	24	24	24
Dielectric Strength	500VAC	500VAC	500VAC
Minimum Insulation Resistance (MOhm)	100	100	100
Maximum Contact Resistance (mOhm)	50	50	50
Electrical Life (Cycles)	2000	2000	2000
Mechanical Life (Cycles)	2000	2000	2000
Seal	Tape(Kapton)/Molded-In	Tape(Kapton)/Molded-In	Tape(Kapton)/Molded-In
Seal Location	Top/Terminals	Top/Terminals	Top/Terminals
Seal Description	Tape(Kapton)/Molded-In	Tape(Kapton)/Molded-In	Tape(Kapton)/Molded-In
Mounting	Surface Mount	Surface Mount	Surface Mount
Termination Style	Gull Wing	Gull Wing	Gull Wing
Terminal Pitch (mm)	2.54	2.54	2.54
Number of Terminals	16	16	4
Total Pitch (mm)	17.78	17.78	2.54
Row Space (mm)	8.9	8.9	8.9
Body Orientation	Straight	Straight	Straight
Minimum Operating Temperature (°C)	-20	-20	-20
Maximum Operating Temperature (°C)	85	85	85
Packaging	Tape and Reel	Tube	Tape and Reel
Body Length (mm)	21.26	21.26	6.02
Body Depth (mm)	6.2	6.2	6.2
Body Height (mm)	3	3	3
Product Length (mm)	21.26	21.26	6.02
Product Depth (mm)	9.8	9.8	9.8
Product Height (mm)	3.7	3.7	3.7
HTS	8536.50.90.65	8536.50.90.65	-
