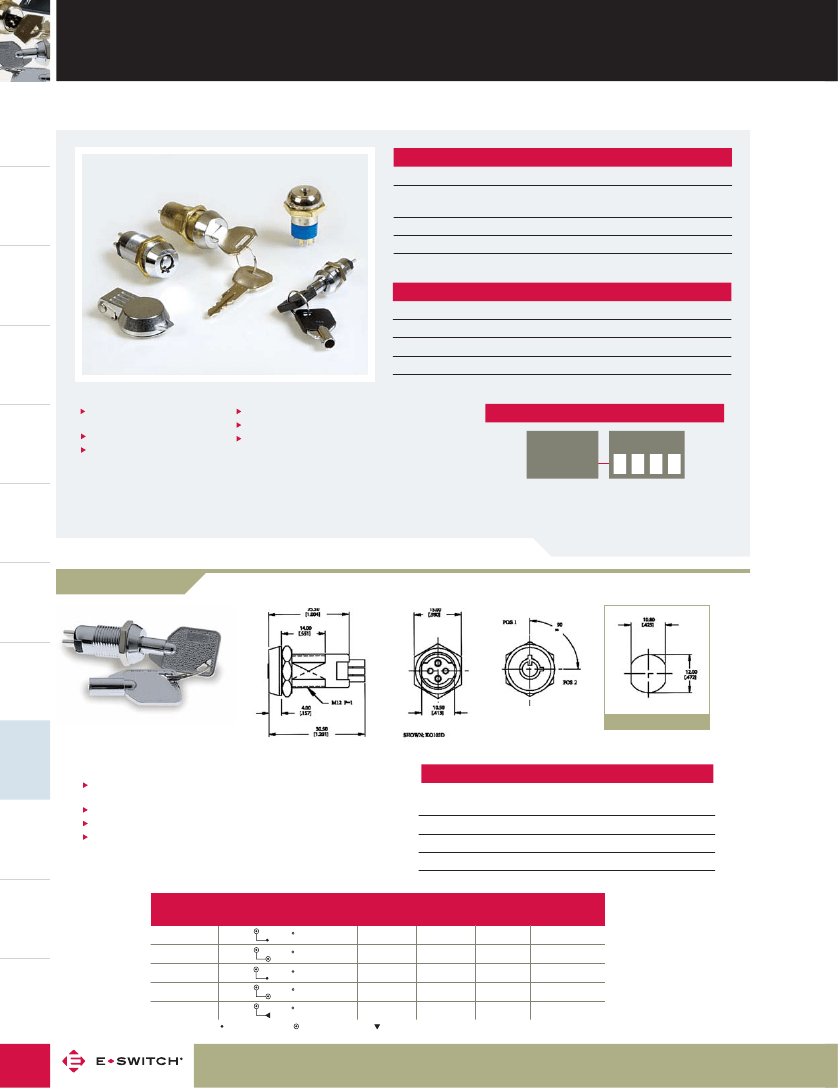

SERIES KO SWITCHES
TACT
SWITCHES
KEYLOCK SWITCHES
SPECIFICATIONS
NAVIGATION
SWITCHES
Contact Rating:
Initial Contact
Resistance:
Insulation Resistance:
Dielectric Strength:
As per individual model number
10 mΩ Max.
As per individual model number
As per individual model number
PUSHBUTTON
SWITCHES
MATERIALS
Housing and Cylinder:
Contact:
Keys:
Die cast zinc alloy. Finish dependent
upon individual model number
Silver plated copper alloy
As per individual model number
TOGGLE
SWITCHES
FEATURES & BENEFITS
ROCKER
SWITCHES
Variety of size and product
package options
Barrel and flat key options
Wide variety of key code options
APPLICATIONS/MARKETS
▲
▲
▲
Security applications
Personal transportation vehicles
Elevator controls
HOW TO ORDER
SERIES
MODEL NO.
KO
▲
▲
▲
Example Ordering Number
KO_ 103B
Specifications subject to change without notice.
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
KO 103
2 LEDS
DIP
SWITCHES
HOLE SIZE
KEYLOCK
SWITCHES
FEATURES & BENEFITS
Zinc alloy die cast housing and cylinder,
chrome plated
Zinc alloy keys, chrome plated
Silver plated contacts and terminals
200 combinations available
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
1A @ 125 VAC
0.5A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
1,500 V rms @ sea level
DETECTOR
SWITCHES
ROTARY
SWITCHES
Part
Number
KO103A
KO103B
Lock Configuration
(as viewed from key end)
1
2
1
2
1
2
1
2
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
OFF
OFF
1-2
1-2
OFF
= Momentary
Key Pull
Possible
Pos. 1
Pos. 1, Pos. 2
Pos. 1
Pos. 1, Pos. 2
Pos. 1
90 indexing
90 indexing
90 indexing
90 indexing
90 indexing
= Keypull Possible
1-2
1-2
3-4
3-4
1-2
CAP
OPTIONS
KO103C
KO103D
KO103E
= Detent Position
220
Phone: 800-867-2717
Fax: 763-531-8235

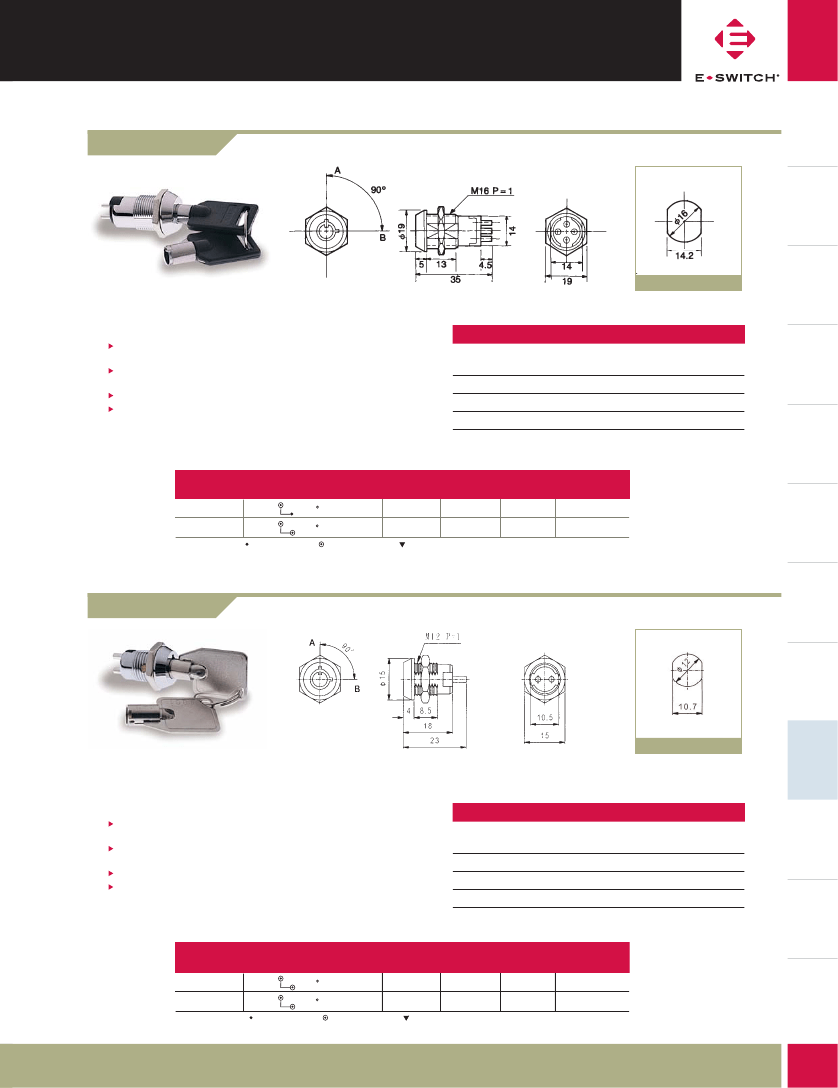

KO 104
2 LEDS
UNIT: mm
HOLE SIZE
FEATURES & BENEFITS
Zinc alloy die cast housing and cylinder,
chrome plated
Zinc alloy keys, chrome plated,
with plastic cover
Silver plated contacts and terminals
10,000 combinations available
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
3A @ 125 VAC
1.5A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
ROCKER
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
UNIT: mm
HOLE SIZE
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
TOGGLE
SWITCHES
1,500 V rms @ sea level
Part
Number
KO104A
KO104B
Lock Configuration
(as viewed from key end)
1
2
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
1-2
1-2
= Momentary
Key Pull
Possible
Pos. 1
Pos. 1, Pos. 2
90 indexing
90 indexing
= Keypull Possible
3-4
3-4
= Detent Position

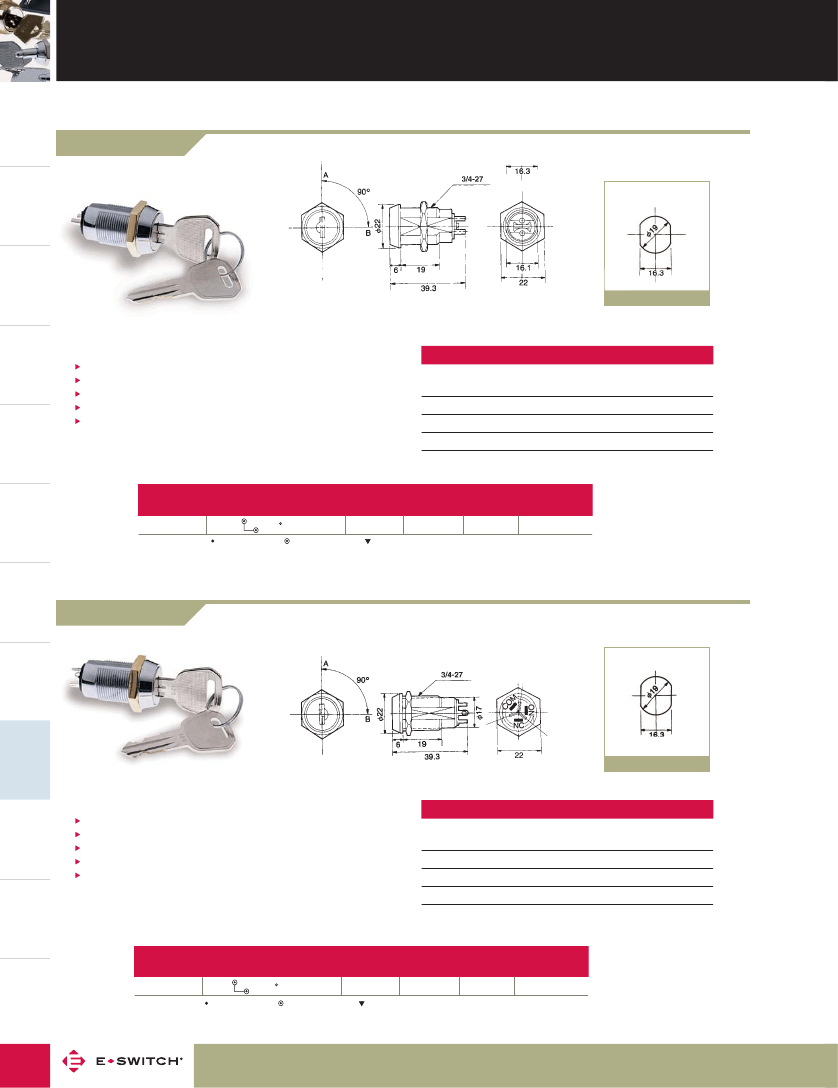

KO 105
FEATURES & BENEFITS
Zinc alloy die cast housing and cylinder,
chrome plated
Steel made tubular keys, nickel plated,
with plastic cover
Silver plated contacts and terminals
100 combinations available
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
1A @ 125 VAC
0.5A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
1,500 V rms @ sea level
Part
Number
KO105A
KO105B
Lock Configuration
(as viewed from key end)
1
2
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
OFF
1-2
= Momentary
Key Pull
Possible
Pos. 1, Pos. 2
Pos. 1, Pos. 2
90 indexing
90 indexing
= Keypull Possible
1-2
3-4
= Detent Position
www.e-switch.com
info
@
e-switch.com
PUSHBUTTON
SWITCHES
NAVIGATION
SWITCHES
TACT
SWITCHES
221

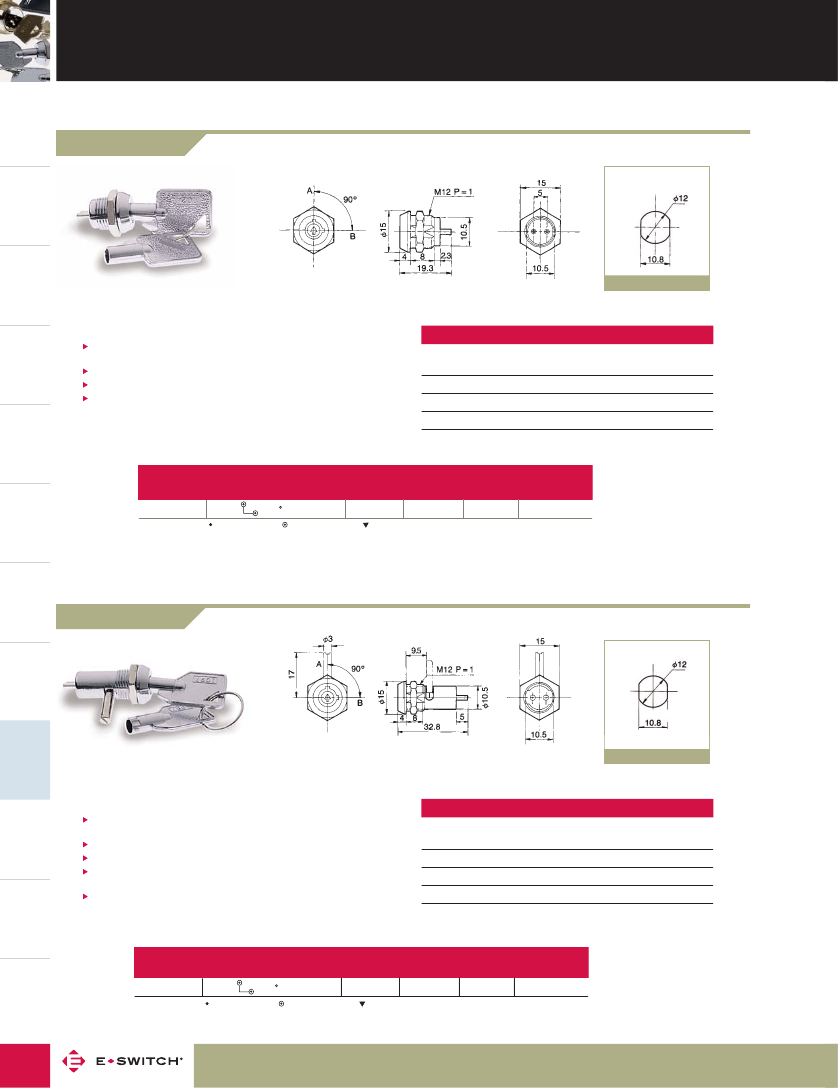

SERIES KO SWITCHES
TACT
SWITCHES
KEYLOCK SWITCHES
KO1100
TL 106
2 LEDS
PUSHBUTTON
SWITCHES
NAVIGATION
SWITCHES
UNIT: mm
HOLE SIZE
FEATURES & BENEFITS
TOGGLE
SWITCHES
Zinc alloy die cast housing and cylinder,
chrome plated
Zinc alloy keys, chrome plated
Silver plated contacts and terminals
1 combination available
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
1A @ 125 VAC
0.5A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
1,500 V rms @ sea level
ROCKER
SWITCHES
Part
Number
SLIDE
SWITCHES
Lock Configuration
(as viewed from key end)
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
OFF
= Momentary
Key Pull
Possible
Pos. 1, Pos. 2
KO106A
90 indexing
= Keypull Possible
1-2
= Detent Position
SNAP-ACTION
SWITCHES
KO 107
KEYLOCK
SWITCHES
DIP
SWITCHES
UNIT: mm
HOLE SIZE
FEATURES & BENEFITS
Zinc alloy die cast housing and cylinder,
chrome plated
Zinc alloy keys, chrome plated
Silver plated contacts and terminals
L dimension per customer requirement,
13 mm is standard
6 combinations available
ROTARY
SWITCHES
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
1A @ 125 VAC
0.5A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
1,500 V rms @ sea level
DETECTOR
SWITCHES
Part
Number
CAP
OPTIONS
Lock Configuration
(as viewed from key end)
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
OFF
= Momentary
Key Pull
Possible
Pos. 1, Pos. 2
KO107A
90 indexing
= Keypull Possible
1-2
= Detent Position
222
Phone: 800-867-2717
Fax: 763-531-8235
SERIES KO SWITCHES
TACT
SWITCHES
KEYLOCK SWITCHES
KO 117
PUSHBUTTON
SWITCHES
NAVIGATION
SWITCHES
UNIT: mm
HOLE SIZE
TOGGLE
SWITCHES
FEATURES & BENEFITS
Zinc alloy die cast housing, chrome plated
5-Disk tumblers mechanism, with dust shutter
Reversible double cut key, brass made, nickel plated
Silver plated contacts and terminals
150 combinations available
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
4A @ 125 VAC
2A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
1,500 V rms @ sea level
ROCKER
SWITCHES
SLIDE
SWITCHES
Part
Number
KO117A
Lock Configuration
(as viewed from key end)
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
OFF
= Momentary
Key Pull
Possible
Pos. 1, Pos. 2
90 indexing
= Keypull Possible
1-2
= Detent Position
SNAP-ACTION
SWITCHES
KO 118
KEYLOCK
SWITCHES
DIP
SWITCHES
UNIT: mm
HOLE SIZE
FEATURES & BENEFITS
ROTARY
SWITCHES
Zinc alloy die cast housing, chrome plated
5-Disk tumblers mechanism, with dust shutter
Reversible double cut key, brass made, nickel plated
Silver plated contacts and terminals
150 combinations available
SPECIFICATIONS
Ratings:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
4A @ 125 VAC
2A @ 250 VAC
20 mΩ max. initial @ 2-4 VDC, 100 mA
200 MΩ min.
1,500 V rms @ sea level
DETECTOR
SWITCHES
Part
Number
CAP
OPTIONS
Lock Configuration
(as viewed from key end)
1
2
Connected Terminals
Pos. 1
Pos. 2
Pos. 3
1-2
= Momentary
Key Pull
Possible
Pos. 1, Pos. 2
KO118A
90 indexing
= Keypull Possible
3-4
= Detent Position
224
Phone: 800-867-2717
Fax: 763-531-8235
