89282 Overview

Industrial Relays Interface Relay Module, 16Ch

89282 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	Industrial Relays
Contact Current Rating	12 A
Coil Voltage	110 VAC
Application	Industrial
Current Rating	12 A
Length	248 mm
Product	Industrial
Factory Pack Quantity	1

Preview

Download Datasheet

View All

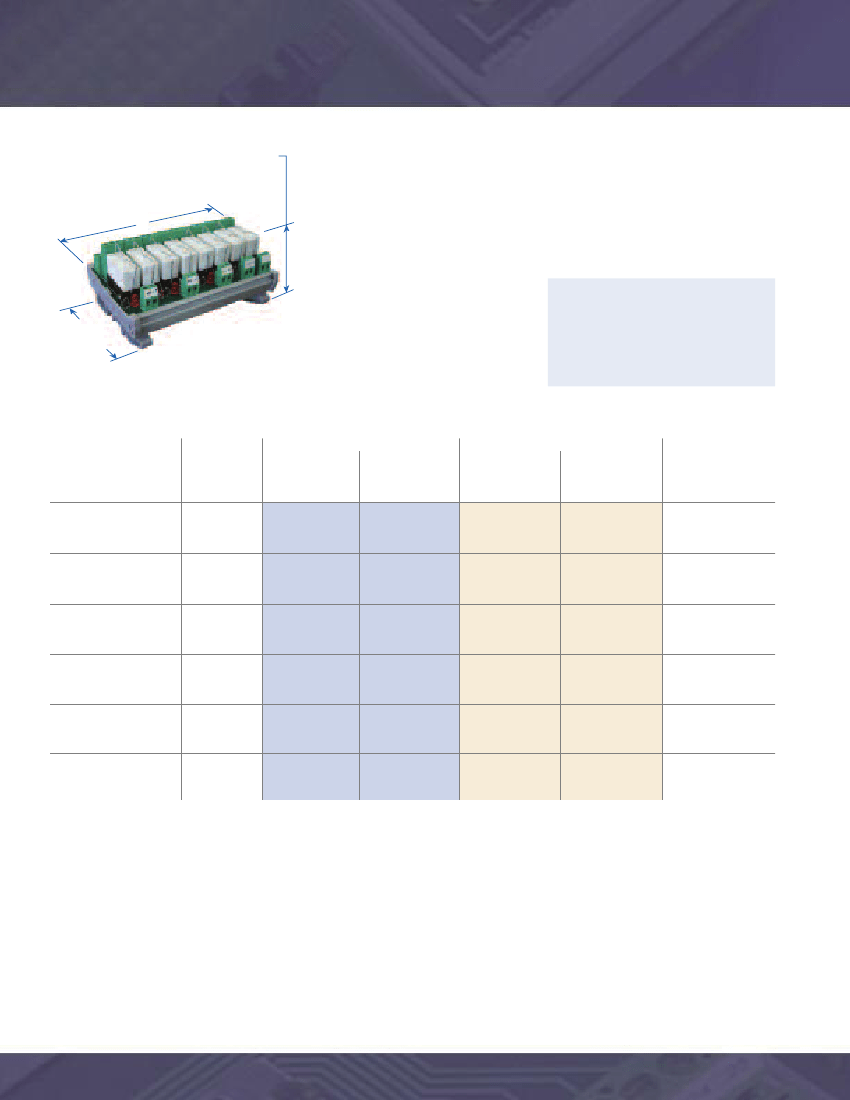

Interfaces, Relay Modules and Carriers

Bussed DPDT, 35 or 32 DIN Rail

RC2 / RM2 (Double Pole Double Throw)

TS35x7.5 71 mm (2.80 in.)

TS32x15 76 mm (2.50 in.)

Altech Bussed Relay Modules provide high density packaging of miniature general purpose relays with

minimal hook-up wiring. Select from bussed DC Positive (DC Negative switching), bussed DC Negative (DC

Positive switching), or bussed AC neutral.

Ideal for traditional mechanical relay input/output array between a single logic system and peripheral

devices, or between logic systems in a network as well as their peripheral and field devices.

Load your own relays in our RCB Relay Carrier, or order the RMB Relay Module complete with 8 or 16 relays.

Call us with your custom module requirements!

• Screw-Cage Clamp Connections

• Spring Clamp Terminals

• LED Coil Voltage Indicator

• Reverse DC Polarity LED Protection

• Surge Suppression With DC Coil

• DIN Rail Mount, Panel Mount Available

Technical Information

Current ..................8 A

Voltage (max) ........250V AC / 24V DC

Wire Range ...........0.5-4 mm

/ 30-14 AWG

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

DPDT

Number of Channels

8 Channel, Bussed DC+

Coil Voltage

12V DC ( E)

24V DC (G)

8 Channel, Bussed DC-

12V DC ( E)

24V DC (G)

8 Channel, Bussed AC (N)

110V AC (U)

220V AC (X)

16 Channel, Bussed DC+

12V DC ( E)

24V DC (G)

16 Channel, Bussed DC-

12V DC ( E)

24V DC (G)

16 Channel, Bussed AC(N)

110V AC (U)

220V AC (X)

m in.)

87 43

Screw terminal

Carrier Only

Part Number

8923.5

8924.5

8923.6

8924.6

8925.5

8925.6

8926.5

8926.6

8927.5

8927.6

8928.5

8928.6

Module

with Relays

Part Number

8923.2

8924.2

8923.3

8924.4

8925.2

8925.3

8926.2

8926.3

8927.2

8927.3

8928.2

8928.3

Spring terminal

Carrier Only

Module

with Relays

Part Number

8923.5/S

8924.5/S

8923.6/S

8924.6/S

8925.5/S

8925.6/S

8926.5/S

8926.6/S

8927.5/S

8927.6/S

8928.5/S

8928.6/S

8923.2/S

8924.2/S

8923.3/S

8924.4/S

8925.2/S

8925.3/S

8926.2/S

8926.3/S

8927.2/S

8927.3/S

8928.2/S

8928.3/S

Module Length (L)

in mm (in)

125 (4.92)

248 (9.76)

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
