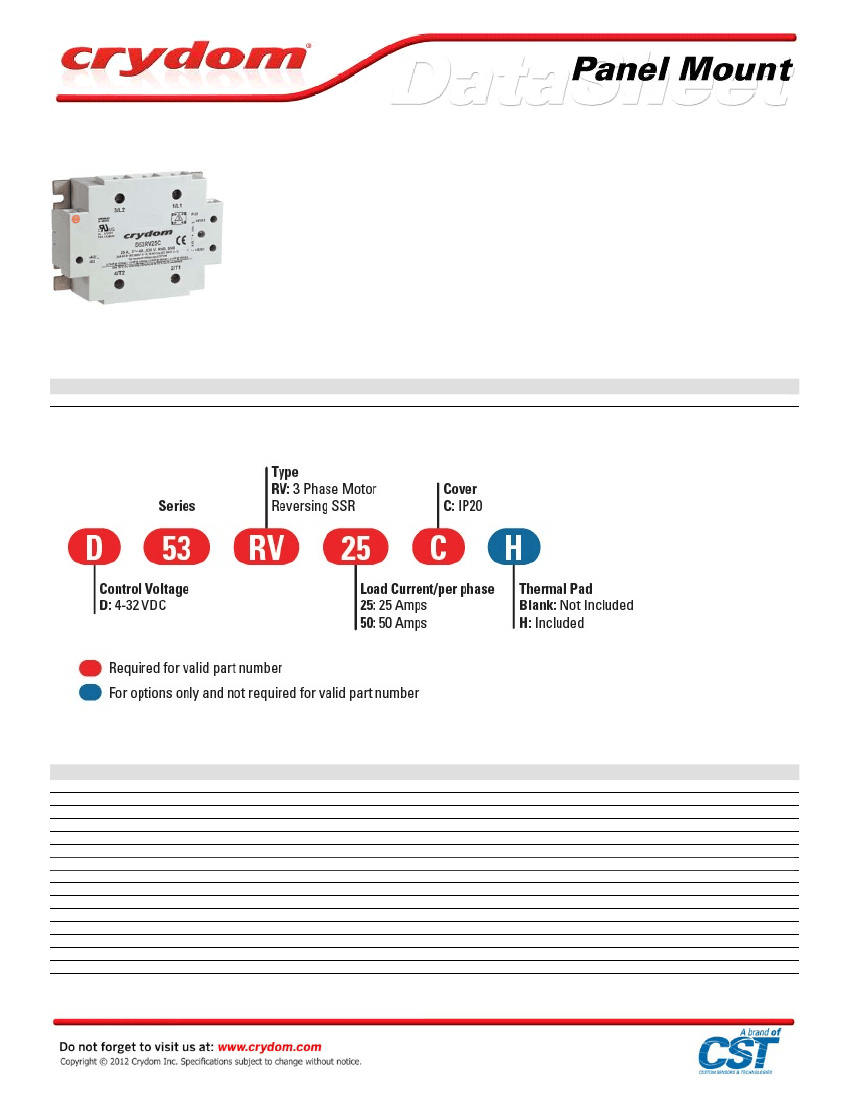

53RV Series
• Three-phase Motor Reversing solid-state relay;
• Ratings from 25A and 50A per phase @ 48-530 VAC
• Interlock Circuit Prevents Inadvertent Actuation of Both Directions
• SCR output for heavy industrial loads
• DC control
• LED input status indicator
PRODUCT SELECTION
Control Voltage
4-32 VDC
25A
D53RV25C
50A
D53RV50C
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Maximum Load Current [Arms] (2)
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms] (3)
Minimum Load Current [Arms]
Maximum Surge Current 50/60 Hz (16.6ms) [Apk]
1 Second Surge Current 50/60 Hz [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum I²T for Fusing (50/60 Hz, 1/2 cycle) [A² sec]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (4)
UL/IEC 60947 Motor Control Ratings at 120V [HP/KW] (5)
UL/IEC 60947 Motor Control Ratings at 240V [HP/KW] (5)
UL/IEC 60947 Motor Control Ratings at 380V [HP/KW] (5)
UL/IEC 60947 Motor Control Ratings at 480V [HP/KW] (5)
D53RV25C
48-530
25
1100
6
0.1
475/500
100
1.35
1139/1038
0.26
500
0.75/0.56
1/0.74
2/1.48
3/2.22
D53RV50C
48-530
50
1100
6
0.1
710/750
150
1.35
2520/2320
0.25
500
1.5/1.11
3/2.22
5/3.7
7.5/5.55
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Input Resistance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
Interlocking Time [msec]
Parameters
4-32 VDC
4.0 VDC
1.0 VDC
23mA
35mA
Current Regulated
150
1/2 Cycle
100
GENERAL SPECIFICATIONS
Description
Input to Output Isolation
Input/ Output to Ground Isolation
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Terminals
Input Terminal Screw Torque Range:[in lbs/Nm]
Output Terminal Screw Torque Range:[in lbs/Nm]
Parameters
4000 Vrms
2500 Vrms
8 pF
-40 to 80°C
-40 to 100 °C
13.1 oz (370g)
UL 94V0 (self extinguishing
Mounted
16.8/1.9
21.2/2.4
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) When mounted to the proper size heat sink (see derating curves)
3) Measured between 1/L1 and 2/T1 or 3/L2 and 4/T2
4) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
5) At 40°C Ambient temperature.

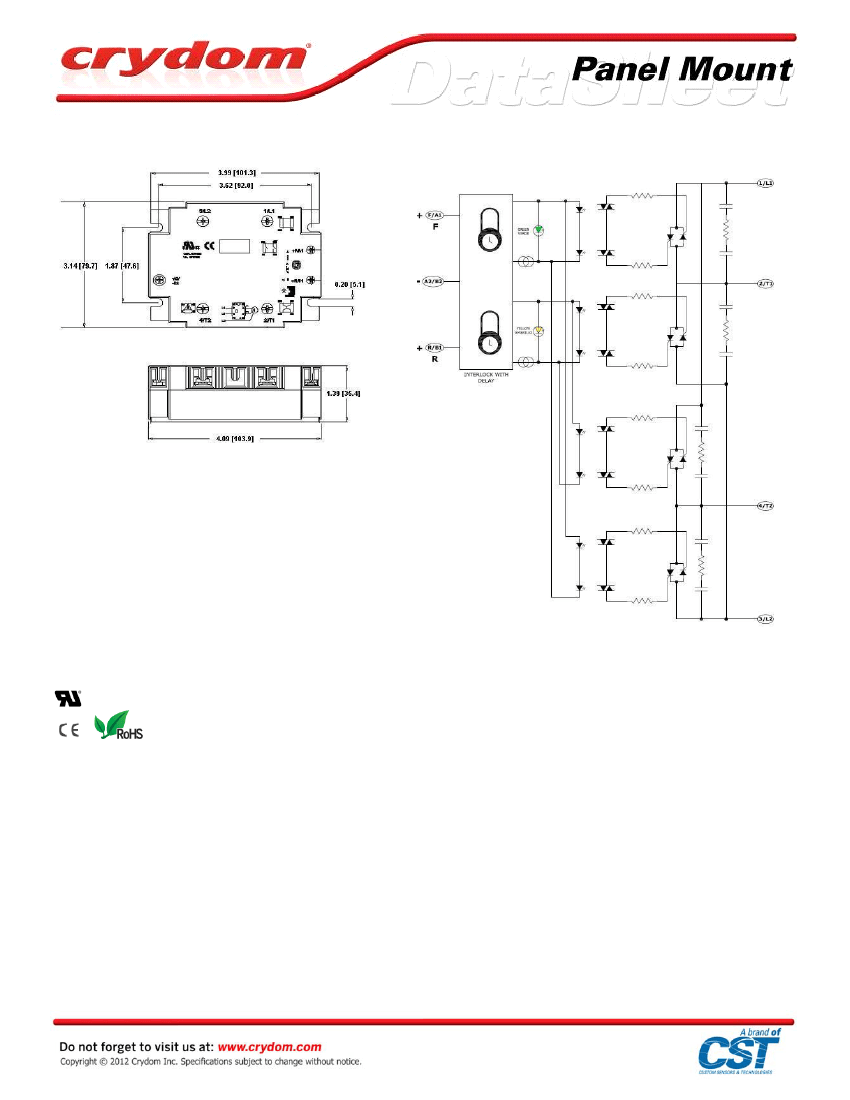

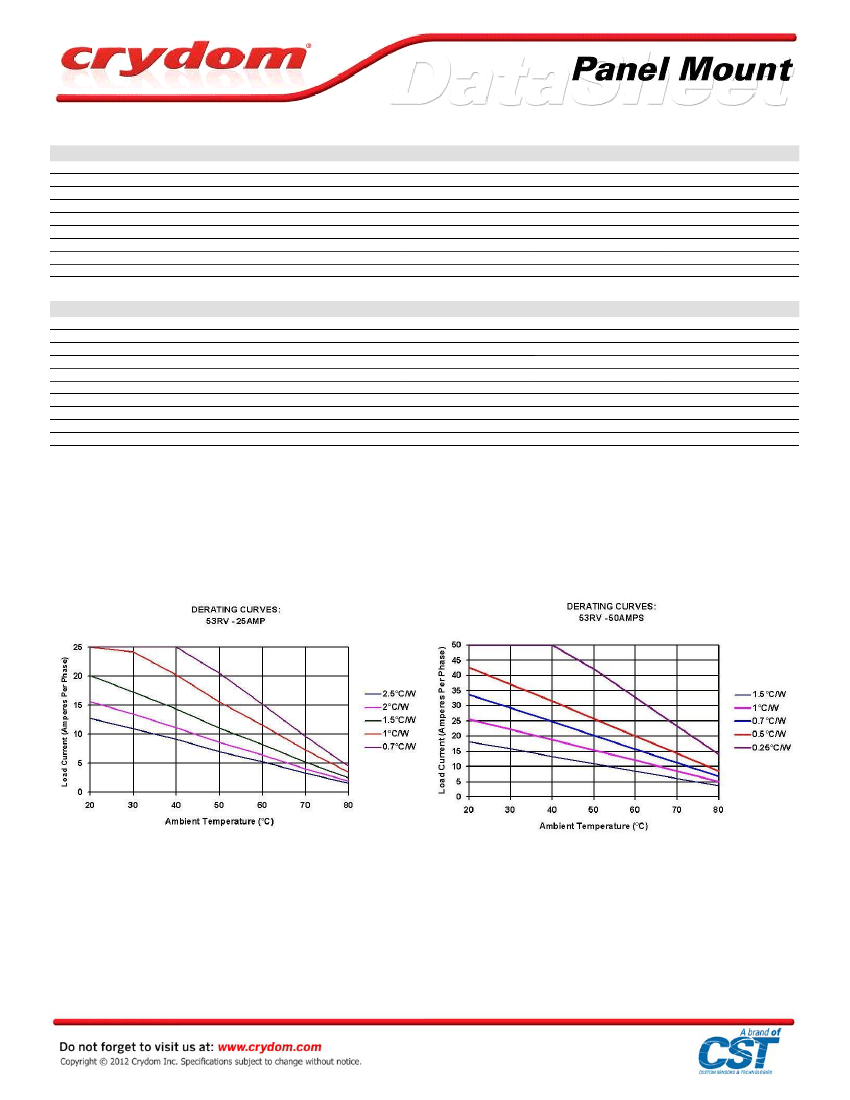

THERMAL DERATE INFORMATION
