ZA016LDCM1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> ZA016LDCM1

Preview

ZA016LDCM1: DescriptionAudio Indicators & Alerts 6 to 16 VDC 3300 +/- 500 Hz; CategoryTopical application Mechanical and electrical/engineering/automation; File Size38KB，1 Pages; ManufacturerMallory; Websitehttps://www.msdperformance.com/brands/mallory/

Download Datasheet Parametric View All

ZA016LDCM1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZA016LDCM1	-	-	View	Buy Now

ZA016LDCM1 Overview

Audio Indicators & Alerts 6 to 16 VDC 3300 +/- 500 Hz

ZA016LDCM1 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mallory
Product Category	Audio Indicators & Alerts
RoHS	Details
Product	Panel Alarms
Sound Pressure Level	95 dBA
Tone	Chime
Frequency	3.3 kHz
Voltage Rating	16 VDC
Current Rating	40 mA
Termination Style	Terminal Block
Diameter	30.74 mm
Mounting	Panel
Dimensions	30.74 mm L x 30.74 mm W x 43.45 mm H
Height	43.45 mm
Length	30.74 mm
Width	30.74 mm
Length - in	1.71 in
Length - mm	43.44 mm
Factory Pack Quantity	10
Unit Weight	1 oz

Preview

Download Datasheet

View All

Mallory Sonalert Products,Inc.

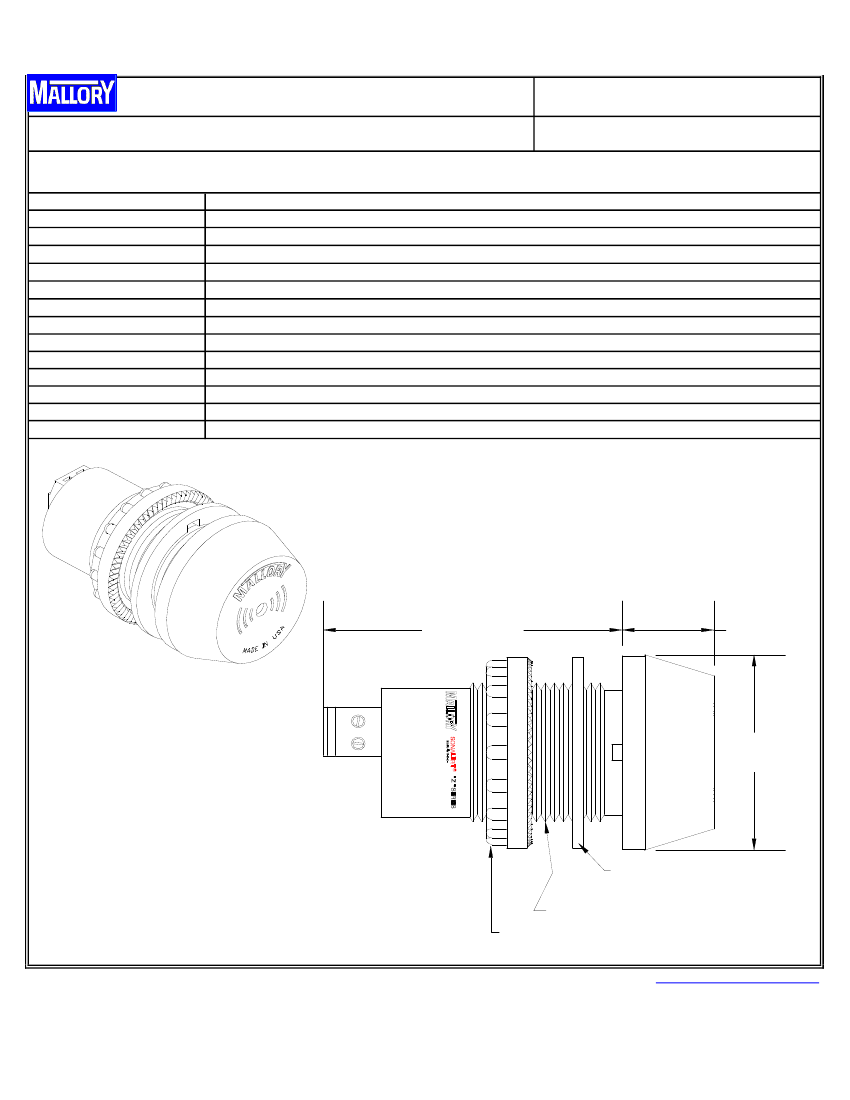

Sales Outline Drawing

Specifications:

Sound Level Category

Mode of Operation

Voltage Rating

Frequency

Loudness @ 2 FT

Current Draw

Housing Material

Storage Temperature

Operating Temperature

Panel Mounting

Knurled Nut

Weight (Typical)

NEMA 3R,4X, & 12

Options

Part #:

Revision:

ZA016LDCM1

C

Loud

Chime @ Once per 3 Seconds

6 to 16 VDC

3900 ± 500 Hz

85 to 95 dB(A) Typ.

40mA MAX

6/6 Nylon, Color: Black

-40° to +80° C

-30° to +65° C

Recommended hole size is 22.5 mm. Thread front will fit standard 22.5mm hole.

Used to attach part to panel. The max recommended torque is 10 in-lbs.

28 g

Approved with use of included gasket.

Please contact factory.

Dimensions:

Inches (mm)

cUL Recognized

ROHS Compliant

1.710 [43.44]

0.524 [13.31]

- +

1.210 [30.74]

Gasket

M22 x 1.5 Thread

<0.86 Maj. Dia.

Knurl nut
