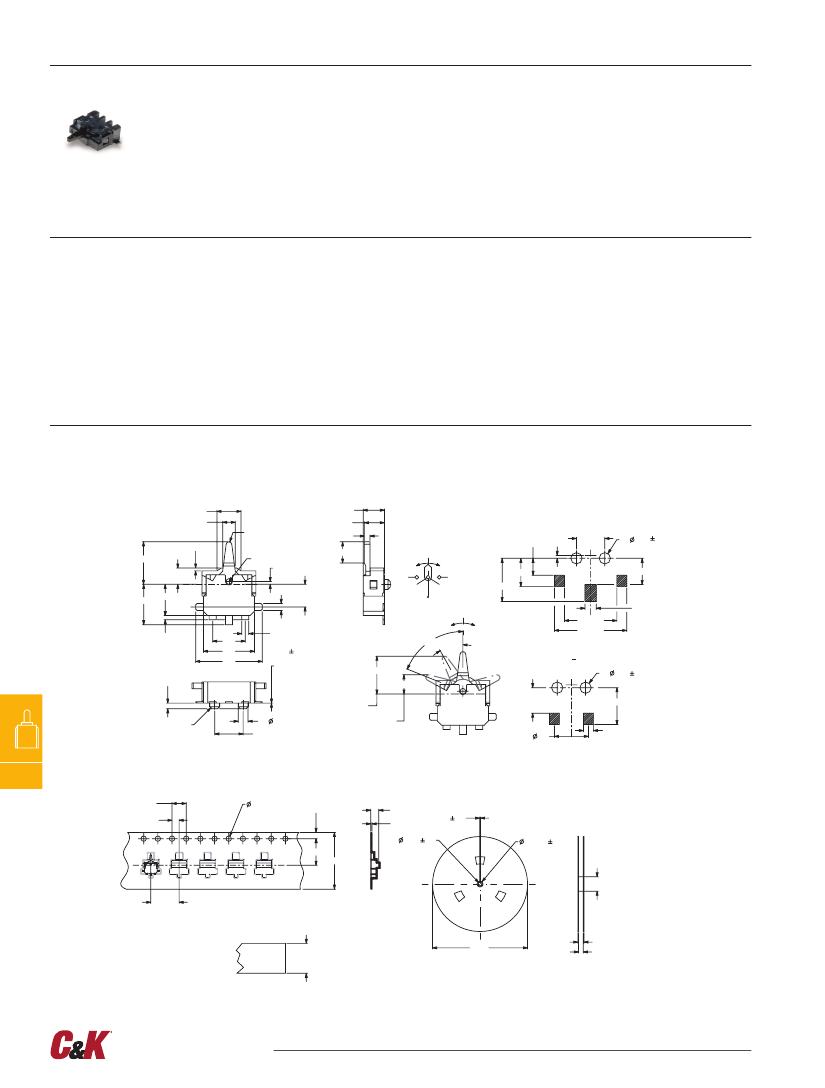

SDP Series
Micro Mini Pendulum SMT Detect Switch
Features/Benefits
•
SMT process compatible
•
Low profile
•
Right or left side actuated
•
Low actuation force
•
Low halogen / halogen free
Typical Applications
•
Consumer electronics
•
Computers
•
Medical devices
•
ATCA and MicroTCA devices
Specifications
CONTACT RATING: 5 VDC 1mA (0.1mA to 100mA max)
MECHANICAL AND ELECTRICAL LIFE: 50,000 cycles
CONTACT RESISTANCE: 500 m Ω max. initial.
INSULATION RESISTANCE: 100 M Ω (500VDC for 1 min.)
OPERATING TEMPERATURE: -20ºC to + 70ºC
STORAGE TEMPERATURE: -30ºC to + 80ºC
PACKAGING: Tape & reel 4,550 pieces
Materials
BASE: LCP (black)
COVER: PA 46 (black)
ACTUATOR: LCP (black)
MOVABLE BLADE: Stainless Steel, Ag over Ni plating.
TERMINALS: Phosphor Bronze, Ag over Ni plating.
SOLDERABILITY: Lead free compatible - No clean.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
Complete part numbers for SDP Series are shown below.
SDP002
1,7
0,89
R0,2
0,2
3
1,15
2,85 2,2
2X 0,5
3X 0,5
PIVOT
0,2
1,6
1,5±0,1
1,42
0,4
1,5
1
B
A
2
3 COM
B
68,3°
29,2°
A
3,7±0,1
5,1±0,1
2±0,1
3,05±0,1
0,8±0,1
1,85±0,1
1,2±0,1 0,2
2±0,05
2X 0,8 0,05
HOLES
0,3
2,3
3,6
4,7
0,4±0,1
5X 0 0,05
Terminal height
within 0,08 to
mounting surface
REFERENCE PCB MOUNTING
2,67±0,2
1,36
1,8
1
3
2
2,4
2X 0,7
2X 0,8 0,05
2,6
2X 0,15
CHAMFER
0
2X 0,7
-0,07
2±0,05
ON STARTING
POSITION
MAX TRAVEL
NO PCB TRACES SHALL BE PLACED IN SHADED AREAS
E
Detect
4±0,1
2±0,1
+0,1
1,50
1,75±0,1
(2,3)
(0,4)
13.0 0.5
7,5
16±0,3
50.0
8±0,1
SECTION A-A
2.0 0.5
21.0
0.8
13.0
COVER TAPE
380.0
REEL
NOT TO SCALE
21.0
18.0
Dimensions are shown: mm
Specifications and dimensions subject to change
E–16
www.ckswitches.com
