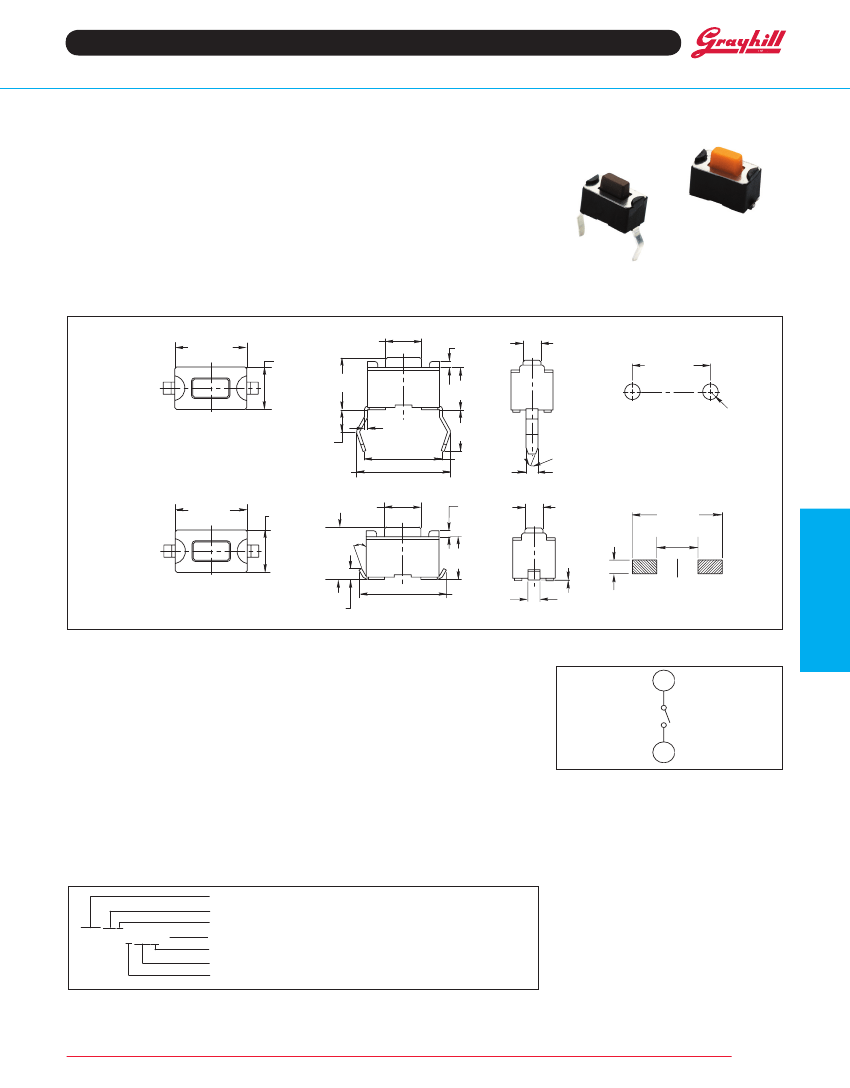

Non-Washable Tactile Switches
SErIES 95c
6mm x 3.5mm
FEaturES
• Excellent Tactile Feedback
• Thru-hole and Gull Wing Versions
• Surface Mount Versions Compatible
with SMT Assembly Including Infra-
red and Vapor Phase
• Ultraminiature and Lightweight
Structure Suitable for High Density
Mounting
applIcatIONS
Used in applications such as consumer
electronics, audio equipment, PCs, VCRs,
cable boxes, modems, communications
equipment, controls, security and alarm
equipment, and test and measurement
equipment.
thru-Hole, 160g, Brown
actuator
Gull Wing, 320g,
Orange actuator
DIMENSIONS
in inches (and millimeters)
Thru-Hole
Top View
.236 (6,00)
C
L
.138
(3,50)
.118
(3,00)
"H" DIM.
±
.008
("H" DIM.
±
0,20)
Front View
C
L
.020
(0,50) MAX.
.138
(3,50)
P.C.B. LAYOUT
.010 (0,25)
.071 +0.0-0.20
(1,80 +0,0-0,50)
.311
±
0.20
(7,90
±
0,50)
.138
±0.20
(3,50
±0,50)
.256
±0.20
(6,50
±0,50)
.020 (0,51)
.039 (1,00)
2xØ.051
±.002
(2xØ1,30
±0,05)
Side View
C
L
.059 (1,50)
.256
±
.004
(6,50
±
0,10)
Gull Wing
.236 (6,00)
C
L
.118
.138
(3,00)
(3,50)
"H" DIM.
±
.008 30˚
("H" DIM.
±
0,20)
See
Ordering
Information
C
L
.002
(0,05)
MAX.
.138
(3,50)
.059 (1,50)
C
L
.002
(0,05)
MAX.
.063
(1,60)
.291 (7,40)
.134 (3,40)
Tact Switches
.283 (7,20)
.035 (0,90)
Unless otherwise specified, dimension tolerances are ±0.010.
.039 (1,00)
P.C.B. LAYOUT
SpEcIFIcatIONS
Materials
Base:
UL94V-0 Nylon thermoplastic
cover: Stainless steel
actuator:
UL94V-0 Nylon thermoplastic
terminal: Brass with silver-plating
contact: Stainless steel with silver-plating
Dielectric Strength:
No dielectric breakdown
after 250V after one minute
contact arrangement: single pole, single
throw
cIrcuItry
T1
Electrical
Environmental
T2
rating:
50mA, 12 Vdc
life: 50,000 cycles
actuator travel: .010” + .008”/ - .004”
contact resistance: 100 mΩ max.
Insulation resistance: 100 MΩ
min
at 500Vdc
Operating temperature range: -25 to 70°C
Storage temperature range:
-30 to 80°C
Mechanical Shock:
MIL-STD-202F, Method
213B, Test Condition A. Gravity: 50G (peak
value), 11 msec. Direction and times: 6 sides and
3 times in each direction. High reliability.
Vibration: MIL-STD-202F, Method 201A. Passed
6 hours (2 hours in each) of three perpendicular
planes at a cycle of 10-55-10Hz/minute.
Soldering process
OrDErING INFOrMatION
Series
Size:
04 = 3.5mm x 6mm
Height (“H”):
A = .169 (4,30), B = .197 (5,00)
roHS compliant
packaging:
Blank = Tube, R = Tape and Reel (see pkg note)
terminal Style:
Blank = Thru-Hole, GW = Gull Wing
Operating Force:
3 = 160g (brown), 5 = 320g (orange)
95c04a3GWrt
Hand Soldering: Use a soldering iron of 30 watts,
controlled at 350°C for 5 seconds maximum
while applying solder.
reflow Soldering
(surface mount versions only):
Peak temperature 260°C (500°F).
Wave Soldering:
260°C (500°F) max. for 5
seconds. Subject to P.C.B. .063 in. (1,6mm)
thickness.
packaging
Thru-Hole: 135 pcs/tube. Surface Mount: 135
pcs/tube, 1800 pcs/reel (.169” height), 1600
pcs/reel (.197” height).
available from your local Grayhill component Distributor.
For prices and discounts, contact a local Sales Office, an authorized local distributor, or Grayhill.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
