TCS426 datasheet, PDF - EEWORLD Datasheet

TCS426: Description1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8; Categorysemiconductor Analog mixed-signal IC; File Size939KB，5 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

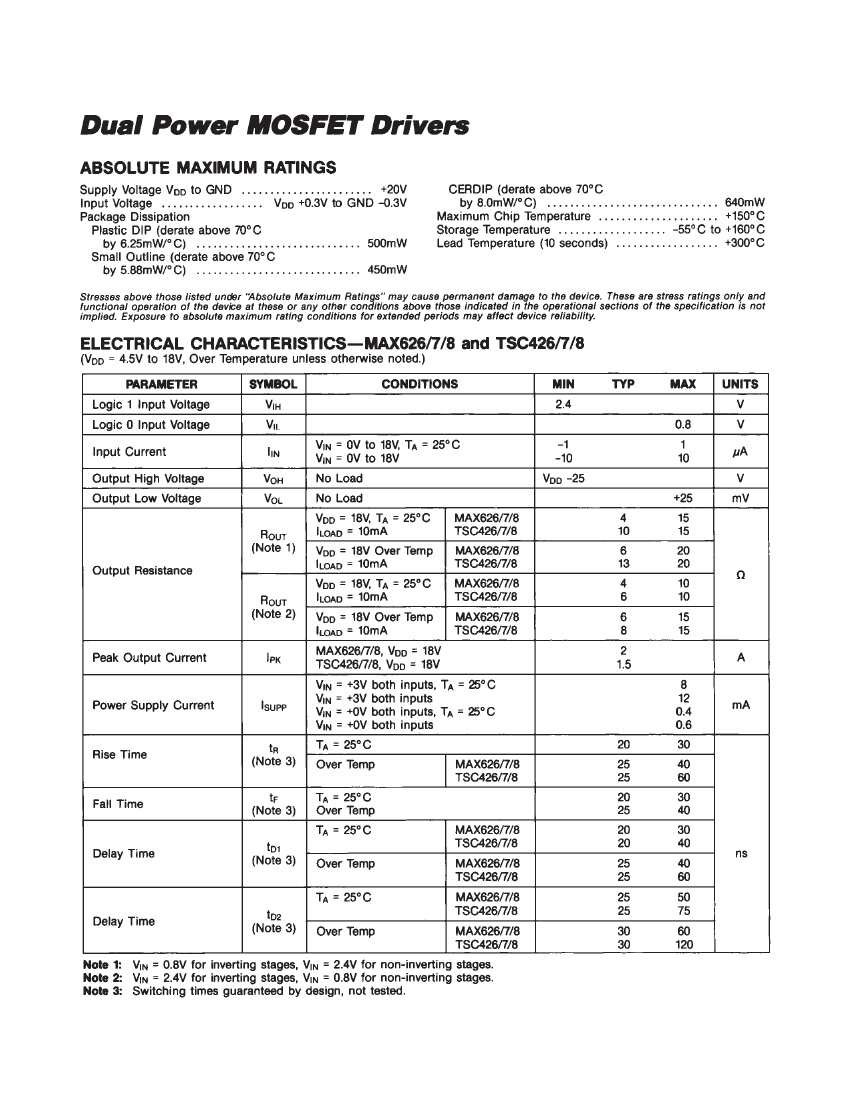

TCS426 Overview

1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8

Parameter Name	Attribute value
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Maximum supply voltage 1	18 V
Minimum supply voltage 1	4.5 V
On time	0.1200 us
Off time	0.0600 us
Processing package description	0.150 INCH, MS-012AA, SOIC-8
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
Interface Type	BUF OR INV BASED MOSFET DRIVER
Rated output peak current limit	1.5 A

AVAILAB

LE

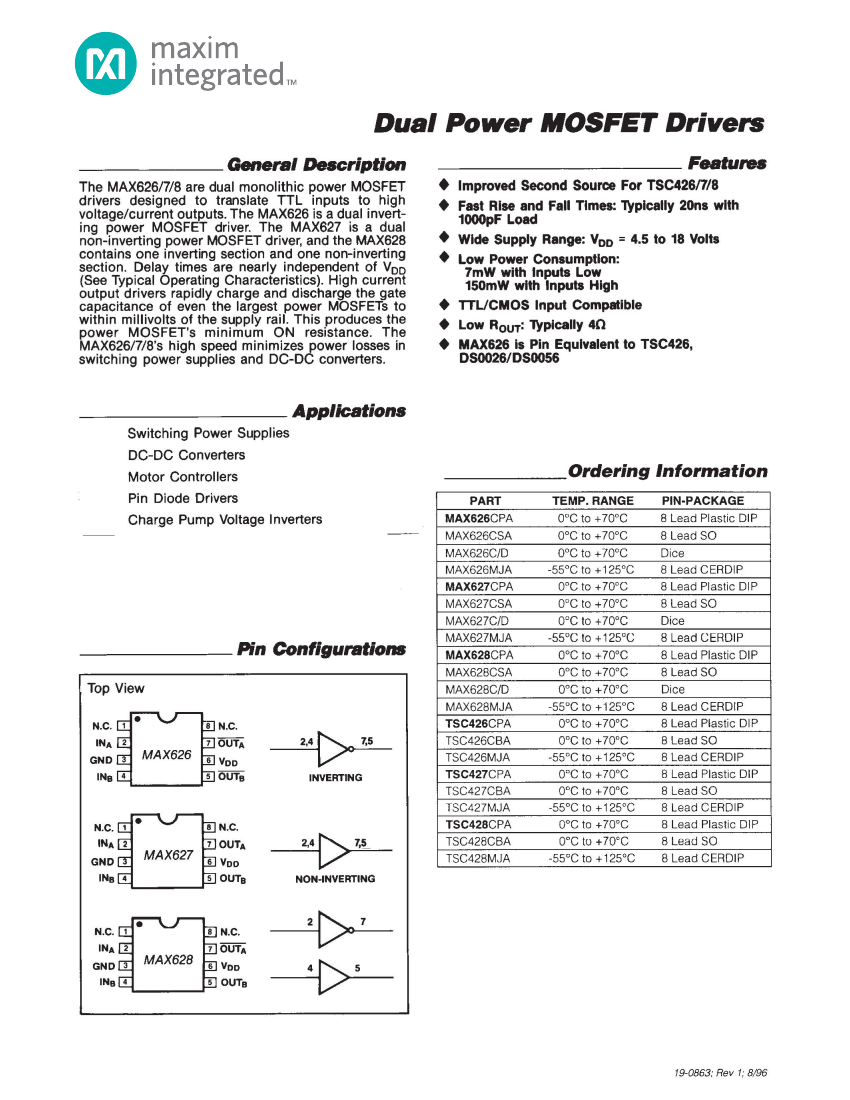

MAX626/7/8-TSC426/7/8

Functional Diagrams

Pin Configu

ear at end of data sheet.

Functional Diagrams continued at end of data sheet.

UCSP is a trademark of Maxim Integrated Products, Inc.

For pricing, delivery, and ordering information, please contact Maxim Direct

at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
