Datasheet> All Categories > Mechanical and electronic products> switch> GF-326-0080

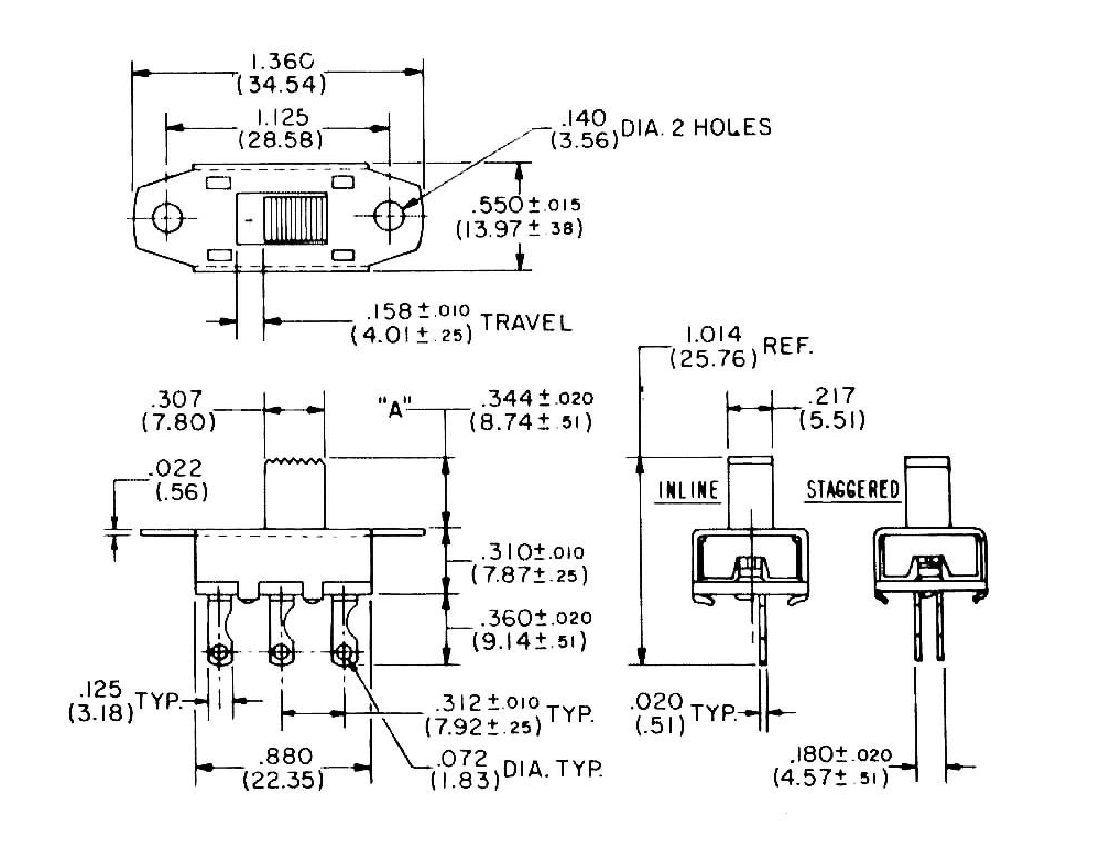

Preview

GF-326-0080: DescriptionSlide Switches Std Slide Switch; CategoryMechanical and electronic products switch; File Size208KB，1 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GF-326-0080 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GF-326-0080	-	-	View	Buy Now

GF-326-0080 Overview

Slide Switches Std Slide Switch

GF-326-0080 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CW Industries
Reach Compliance Code	compliant
Actuator color	BLACK
Actuator length	0.031 inch
Actuator material	NYLON
Actuator type	SLIDE
body width	13.97 mm
body height	7.874 mm
Body length or diameter	34.544 mm
Center contact plating	SILVER
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@125VDC
Contact function	ON-ON
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	125 V
Electrical life	6000 Cycle(s)
Shell material	COLD ROLLED STEEL
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	1
Maximum operating temperature	104 °C
Minimum operating temperature	-10 °C
surface mount	NO
switch function	DPDT
Terminal length	0.3 inch
Terminal material	COPPER
Termination type	WIRE WRAP
Base Number Matches	1

Preview

Download Datasheet

View All

GF-326-0080 Related Products

	GF-326-0080	GF-326-0034	GF-326-0149	GF-326-0217	GF-326-0150	GF-326-0127
Description	Slide Switches Std Slide Switch	Slide Switches Std Slide Switch	Slide Switches Std Slide Switch	Slide Switches	Slide Switches Std Slide Switch	Slide Switches Std Slide Switch
Maker	CW Industries	CW Industries	CW Industries	CW Industries	CW Industries	CW Industries
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Actuator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Actuator length	0.031 inch	0.188 inch	0.031 inch	0.344 inch	0.344 inch	0.031 inch
Actuator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE
body width	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm
body height	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm
Body length or diameter	34.544 mm	34.544 mm	34.544 mm	34.544 mm	34.544 mm	34.544 mm
Center contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	3A@125VAC	3A@125VAC	3A@125VAC	3A@125VAC	3A@125VAC	3A@125VAC
Maximum contact current (AC)	3 A	3 A	3 A	3 A	3 A	3 A
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	0.5A@125VDC	0.5A@125VDC	0.5A@125VDC	0.5A@125VDC	0.5A@125VDC	0.5A@125VDC
Contact function	ON-ON	ON-ON	ON-ON	ON-ON	ON-ON	ON-ON
Contact resistance	0.01 mΩ	0.01 mΩ	0.01 mΩ	0.01 mΩ	0.01 mΩ	0.01 mΩ
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V
Maximum contact voltage (DC)	125 V	125 V	125 V	125 V	125 V	125 V
Electrical life	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)
Shell material	COLD ROLLED STEEL	COLD ROLLED STEEL	COLD ROLLED STEEL	COLD ROLLED STEEL	COLD ROLLED STEEL	COLD ROLLED STEEL
Installation features	THROUGH HOLE-STRAIGHT	PANEL MOUNT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	1	1	1	1	1	1
Maximum operating temperature	104 °C	104 °C	104 °C	104 °C	104 °C	104 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
surface mount	NO	NO	NO	NO	NO	NO
switch function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Terminal length	0.3 inch	0.36 inch	0.36 inch	0.312 inch	0.572 inch	0.3 inch
Terminal material	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
Termination type	WIRE WRAP	SOLDER LUG	SOLDER LUG	WIRE WRAP	WIRE WRAP	WIRE WRAP
Base Number Matches	1	1	1	1	-	-
