TDA6612-5X datasheet, PDF - EEWORLD Datasheet

TDA6612-5X: DescriptionTV-STEREO-SOUND; CategoryAnalog mixed-signal IC Consumption circuit; File Size2MB，47 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

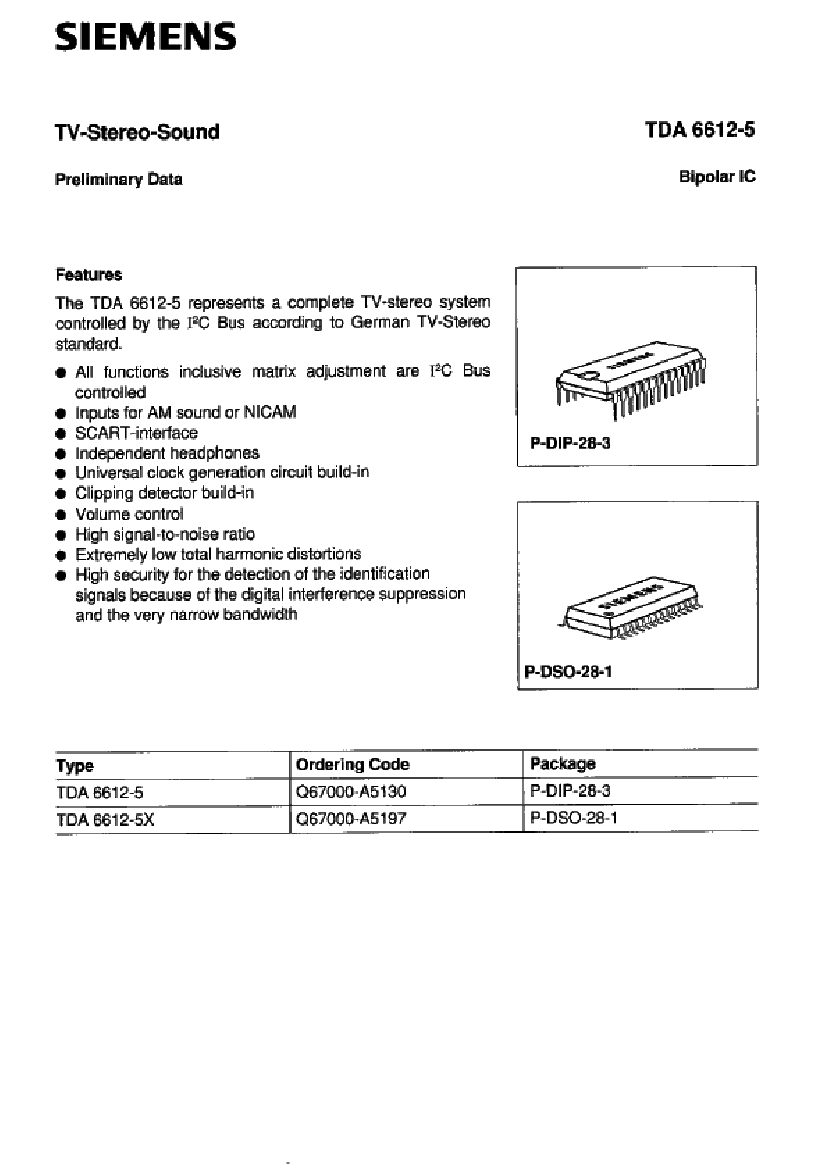

TDA6612-5X Overview

TV-STEREO-SOUND

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
channel separation	50 dB
Commercial integrated circuit types	TONE CONTROL CIRCUIT
harmonic distortion	0.01%
JESD-30 code	R-PDSO-G28
Number of frequency bands	2
Number of channels	2
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	80 mA
Maximum supply voltage (Vsup)	13.2 V
Minimum supply voltage (Vsup)	10 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

	TDA6612-5X	TDA6612-5
Description	TV-STEREO-SOUND	TV-STEREO-SOUND
Maker	SIEMENS	SIEMENS
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
channel separation	50 dB	50 dB
Commercial integrated circuit types	TONE CONTROL CIRCUIT	TONE CONTROL CIRCUIT
harmonic distortion	0.01%	0.01%
JESD-30 code	R-PDSO-G28	R-PDIP-T28
Number of frequency bands	2	2
Number of channels	2	2
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum slew rate	80 mA	80 mA
Maximum supply voltage (Vsup)	13.2 V	13.2 V
Minimum supply voltage (Vsup)	10 V	10 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
