ZCMD21L2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> ZCMD21L2

ZCMD21L2: DescriptionLimit Switches LIMIT SWITCH 240VAC 5A METAL ZCMD; CategoryTopical application Mechanical and electrical/engineering/automation; File Size58KB，2 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

ZCMD21L2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZCMD21L2	-	-	View	Buy Now

ZCMD21L2 Overview

Limit Switches LIMIT SWITCH 240VAC 5A METAL ZCMD

ZCMD21L2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SCHNEIDER ELECTRIC
Product Category	Limit Switches
Contact Form	SPDT
Current Rating	6 A
Voltage Rating AC	240 VAC
Voltage Rating DC	250 VDC
Termination Style	Wire Leads
Packaging	Bulk
Operating Temperature Range	- 40 C to + 70 C
Type	Snap Action
Switch Type	Limit Switches
Factory Pack Quantity	1

Preview

Download Datasheet

View All

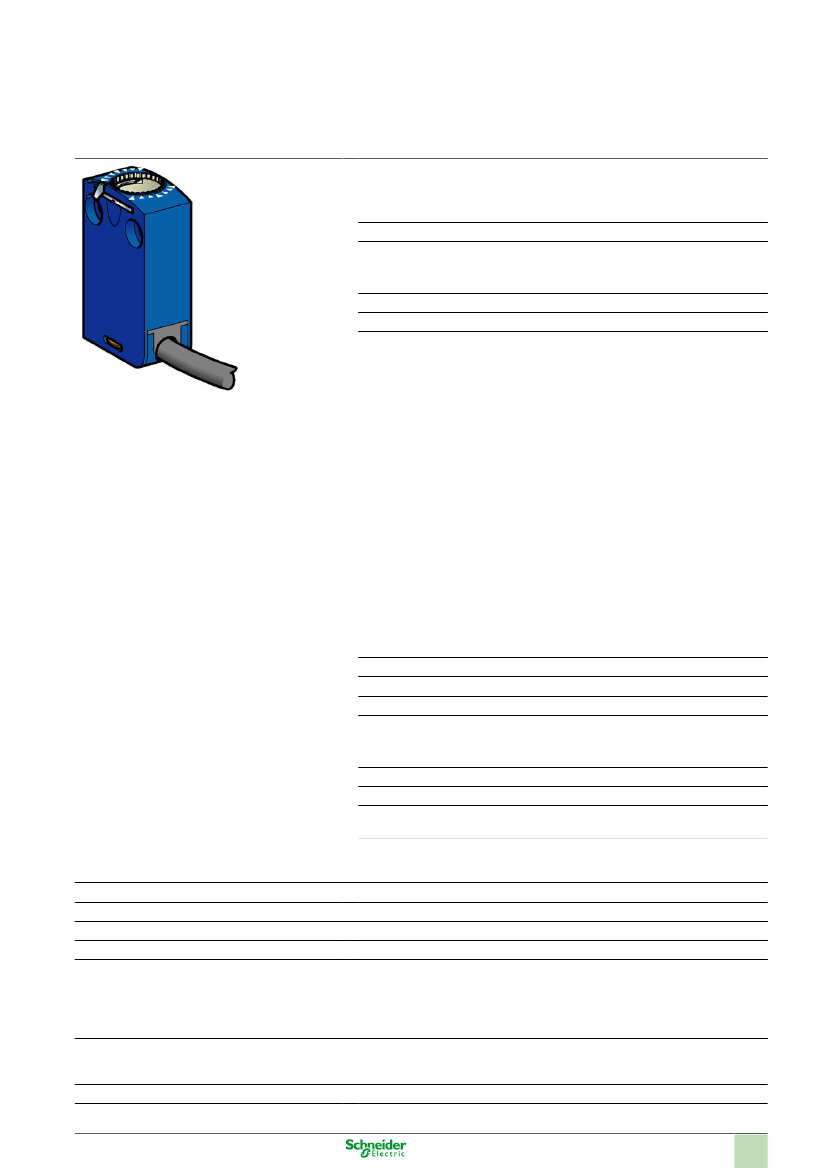

Product data sheet

Characteristics

ZCMD21L2

limit switch body ZCMD - 1NO+1NC - silver -

snap action - connection - 2m

Main

Range of product

Series name

Product or component

type

Device short name

Body type

Product compatibility

Associated head

OsiSense XC

Standard format

Limit switch body

ZCMD

Fixed

XCMD

ZCE01

ZCE02

ZCE06

ZCE07

ZCE08

ZCE09

ZCE10

ZCE11

ZCE13

ZCE14

ZCE21

ZCE24

ZCE27

ZCE28

ZCE29

ZCE62

ZCE63

ZCE64

ZCE65

ZCE66

ZCE67

ZCEF0

ZCEF2

ZCEG1

Removable cable

1 NO + 1 NC

Snap action

Silver plated contacts

With

0.01 m/min

Electrical connection

Cable length

Number of poles

Contacts type and com-

position

Contacts operation

Contacts material

Positive opening

Minimum actuation

speed

Complementary

Design

Body material

Cable composition

Wire insulation material

Contacts insulation form

Contact code designation

Miniature

Zamak

5 x 0.75 mm²

PvR

B300 , AC-15 (Ue = 240 V , Ie = 1.5 A) conforming to EN/IEC 60947-5-1 ap-

pendix A

R300 , DC-13 (Ue = 250 V , Ie = 0.1 A) conforming to EN/IEC 60947-5-1 ap-

pendix A

300 V degree of pollution 3 conforming to UL 508

300 V degree of pollution 3 conforming to CSA C22-2 No 14

400 V degree of pollution 3 conforming to IEC 60947-5-1

< 25 mOhm conforming to IEC 60255-7 category 3

[Ui] rated insulation voltage

Resistance across terminals

Mar 13, 2014

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
