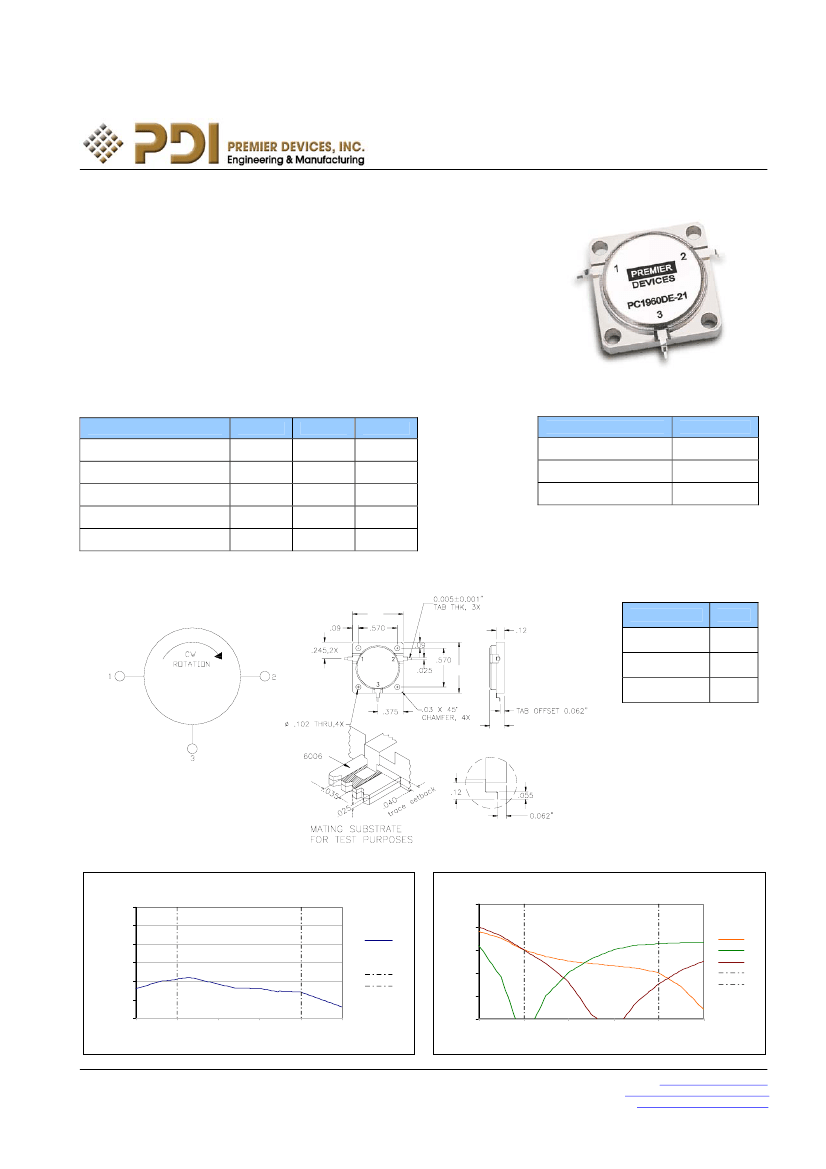

PC1960DE-21

Features

•

Low Cost

Industry Standard 0.75 Inch Drop-in package

Designed for Wireless Telecom Systems

50 Ohms Characteristic Impedance

The PC1960DE-21 is a small low cost drop-in circulator designed

for applications in high performance linear power amplifiers for

wireless base stations. These circulators feature a robust

construction for high reliability with excellent IMD performance.

CCW rotation and special tab offsets available on request.

S-Parameters are also available on request.

DROP-IN CIRCULATOR

Description

Specifications

Parameter

Frequency Range (MHz)

Insertion Loss (dB)

Isolation (dB)

Return Loss (dB)

IMD (dBc) 2T x 37.5 Watts

-70

Minimum

1930

<. 22

>30

>25

-75

Typical

Maximum

1990

.30

Absolute Maximum Ratings

Parameter

Power

Operating Temperature

Storage Temperature

Maximum

100 Watts CW

-40 to +85

°C

-40 to +85

°C

Note: Typical values represent Mid-band performance @ 25°C.

Schematic

.75

Package

Pin Functions

Function

INPUT

.75

OUTPUT

TERMINATED

.25

MAX.

Typical Test Data – Insertion Loss

Insertion Loss

0.00

-0.05

-0.10

-0.15

-0.20

-0.25

-0.30

1910

S21

Typical Test Data – Return Loss and Isolation

Re turn Loss and Isolation

-20

-25

S11

-30

-35

-40

-45

1910

S22

S12

1930

1950

1970

1990

2010

1930

1950

1970

1990

2010

Frequency (MHz)

Specifications and information on this data sheet are subject to change without notice.

1860 Hartog Drive, San Jose, California 95131 USA

Leffelholzstr. 20, D-90441, Nurnberg, Germany

2/1-2F, No.99 Lane 2535 Gudai Rd, Shanghai, China PC 201100

Tel: 001-408-436-7720

Tel: +49(0)911/9411 233

Tel: (86)21-5416-8648

Fax: 001-408-436-7689

Fax: +49(0)911/9411 198

Fax: (86)21-5416-8753

Email:

Sales@premierdevices.com

Email:

Sales.germany@premierdevices.com

Email:

Sales.china@premierdevices.com
