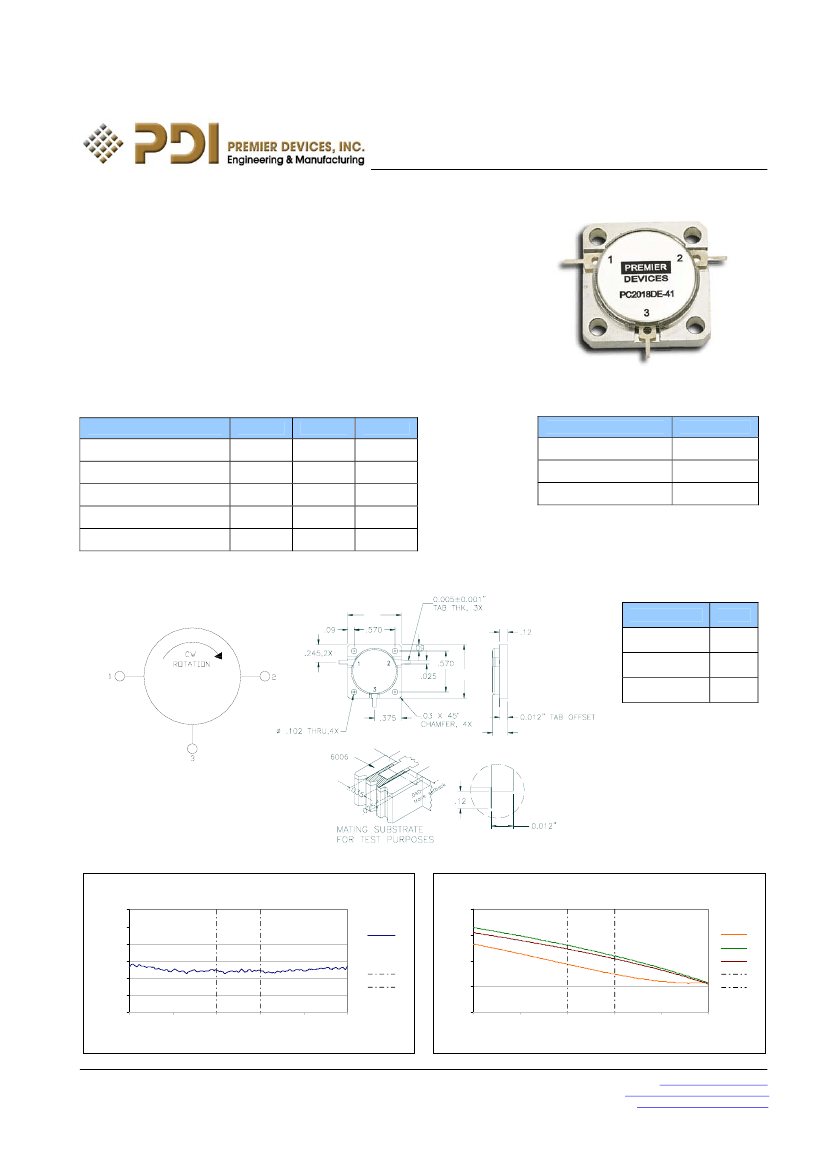

PC2018DE-41

Features

•

Low Cost

Industry Standard 0.75 Inch Drop-in package

Designed for Wireless Telecom Systems

50 Ohms Characteristic Impedance

The PC2018DE-41 is a small low cost drop-in circulator designed

for applications in high performance linear power amplifiers for

wireless base stations. These circulators feature a robust

construction for high reliability with excellent IMD performance.

CCW rotation and special tab offsets available on request.

S-Parameters are also available on request.

DROP-IN CIRCULATOR

Description

Specifications

Parameter

Frequency Range (MHz)

Insertion Loss (dB)

Isolation (dB)

Return Loss (dB)

IMD (dBc) 2T x 37.5 Watts

-70

Minimum

2010

<. 18

>25

-75

Typical

Maximum

2025

.30

Absolute Maximum Ratings

Parameter

Power

Operating Temperature

Storage Temperature

Maximum

100 Watts CW

-40 to +85

°C

-40 to +85

°C

Note: Typical values represent Mid-band performance @ 25°C.

Schematic

.75

Package

Pin Functions

Function

INPUT

.75

OUTPUT

TERMINATED

.25

MAX.

Typical Test Data – Insertion Loss

Insertion Loss

0.00

-0.05

S21

-0.10

-0.15

-0.20

Typical Test Data – Return Loss and Isolation

Return Loss and Isolation

-20

-25

-30

-35

S11

S22

S12

-0.25

-0.30

1980

1995

2010

2025

2040

2055

-40

1980

1995

2010

2025

2040

2055

Frequency (MHz)

Specifications and information on this data sheet are subject to change without notice..

1860 Hartog Drive, San Jose, California 95131 USA

Leffelholzstr. 20, D-90441, Nurnberg, Germany

2/1-2F, No.99 Lane 2535 Gudai Rd, Shanghai, China PC 201100

Tel: 001-408-436-7720

Tel: +49(0)911/9411 233

Tel: (86)21-5416-8648

Fax: 001-408-436-7689

Fax: +49(0)911/9411 198

Fax: (86)21-5416-8753

Email:

Sales@premierdevices.com

Email:

Sales.germany@premierdevices.com

Email:

Sales.china@premierdevices.com
