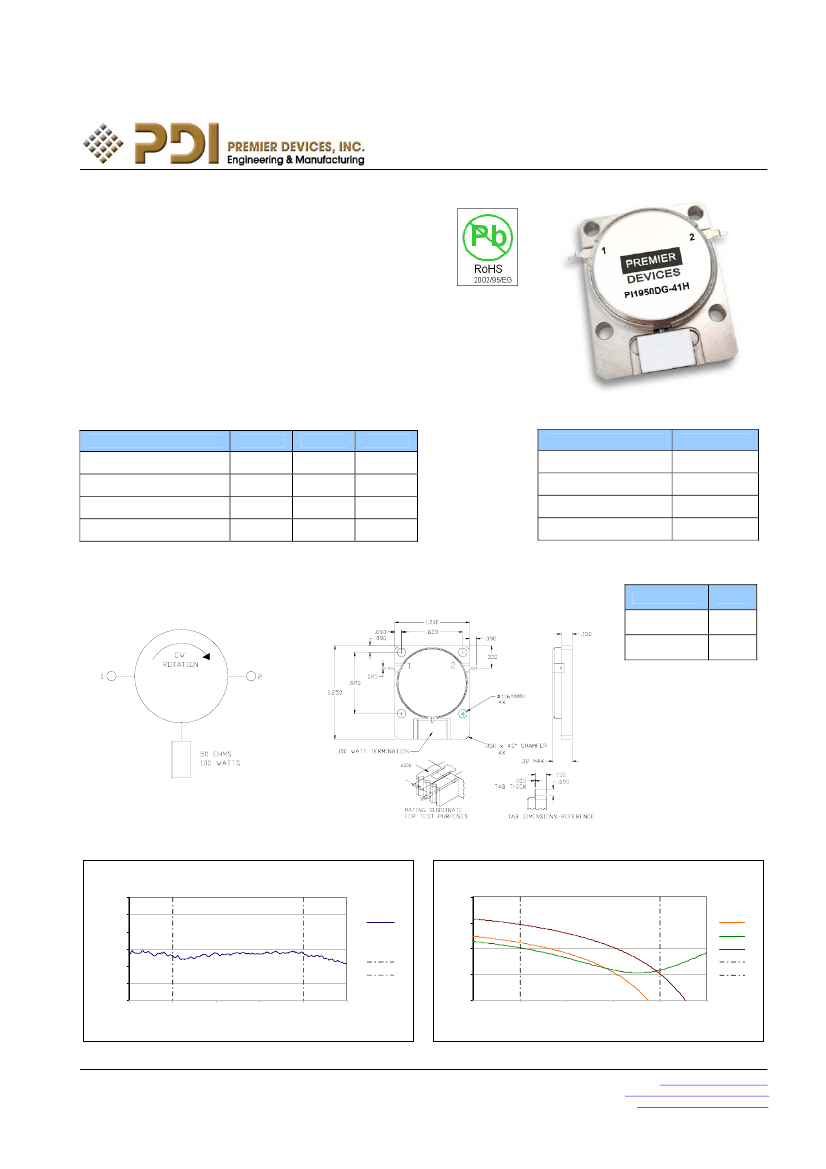

PI1950DG-41H
Features
•
•
•
•
Low Cost and
RoHS
Compliant
Industry Standard 1 Inch Drop-in package
Designed for Wireless Telecom Systems
50 Ohms Characteristic Impedance
The PI1950DG-41H is a small, low cost, High Power Drop-in
Isolator designed for applications in high performance linear
power amplifiers for wireless base stations. These Isolators feature
a robust construction for high reliability with excellent IMD performance.
These units are built Lead-Free and RoHS compliant.
CCW rotation and special tab offsets available on request.
S-Parameters are also available on request.
HIGH POWER DROP-IN ISOLATOR
Description
Specifications
Parameter
Frequency Range (MHz)
Insertion Loss (dB)
Isolation (dB)
Return Loss (dB)
23
23
Minimum
1920
.18
>25
>25
Typical
Maximum
1980
.25
Absolute Maximum Ratings
Parameter
Forward Power
Reverse Power
Operating Temperature
Storage Temperature
Maximum
100 Watts
100 Watts
-40 to +85
°C
-40 to +85
°C
Note: Typical values represent Mid-band performance @ 25°C.
Schematic
Package
Pin Functions
Function
INPUT
OUTPUT
Pin
1
2
Typical Test Data – Insertion Loss
Insertion Loss
0.00
-0.05
S21
-0.10
dB
-0.15
-0.20
Typical Test Data – Return Loss and Isolation
Return Loss and Isolation
-20
-25
dB
-30
-35
S11
S22
S12
-0.25
-0.30
1910
1930
1950
1970
1990
2010
-40
1910
1930
1950
1970
1990
2010
Frequency (MHz)
Frequency (MHz)
Specifications and information on this data sheet are subject to change without notice..
1860 Hartog Drive, San Jose, California 95131 USA
Leffelholzstr. 20, D-90441, Nurnberg, Germany
2/1-2F, No.99 Lane 2535 Gudai Rd, Shanghai, China PC 201100
Tel: 001-408-436-7720
Tel: +49(0)911/9411 233
Tel: (86)21-5416-8648
Fax: 001-408-436-7689
Fax: +49(0)911/9411 198
Fax: (86)21-5416-8753
