PI2140DG-22H: DescriptionHIGH POWER DROP-IN ISOL; File Size75KB，1 Pages; ManufacturerPREMIER DEVICES, INC.; Websitehttp://www.premierdevices.de/

Download Datasheet View All

PI2140DG-22H Overview

HIGH POWER DROP-IN ISOL

Preview

Download Datasheet

View All

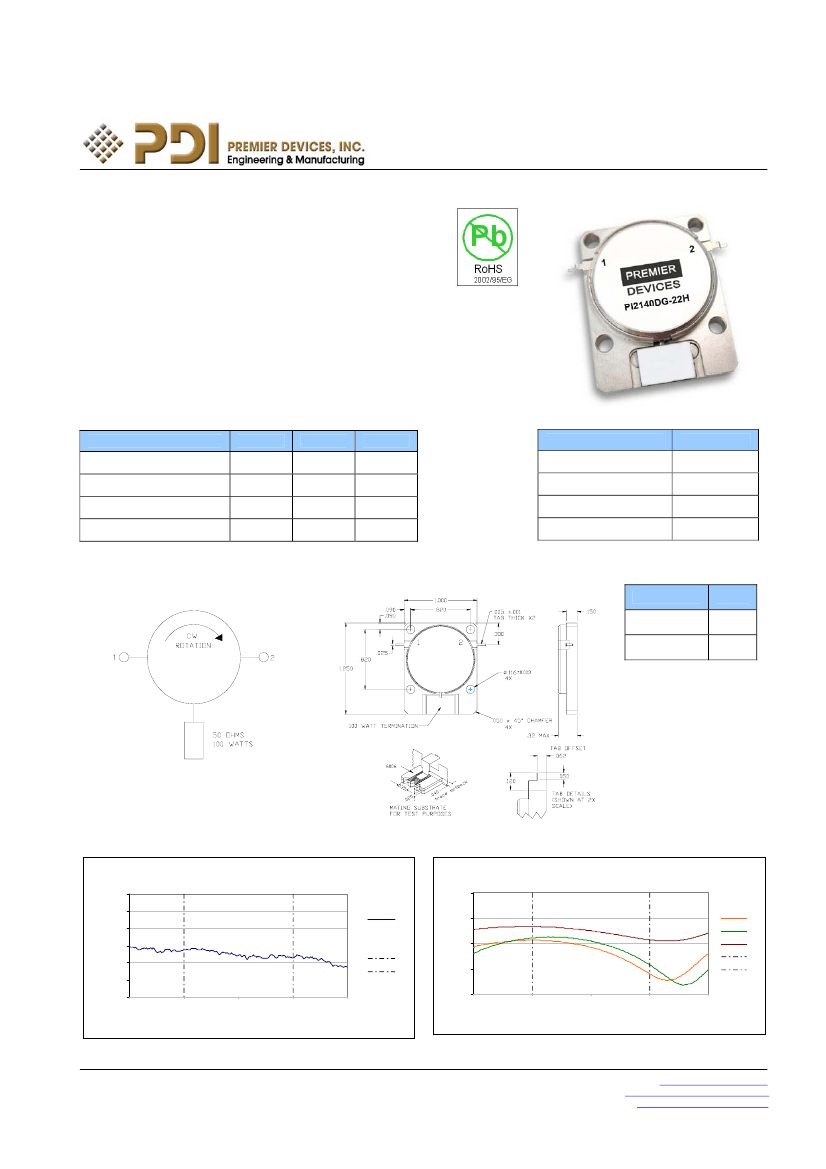

PI2140DG-22H

Features

•

Low Cost and

RoHS

Compliant

Industry Standard 1 Inch Drop-in package

Designed for Wireless Telecom Systems

50 Ohms Characteristic Impedance

The PI2140DG-22H is a small, low cost, High Power Drop-in

Isolator designed for applications in high performance linear

power amplifiers for wireless base stations. These Isolators feature

a robust construction for high reliability with excellent IMD performance.

These units are built Lead-Free and RoHS compliant.

CCW rotation and special tab offsets available on request.

S-Parameters are also available on request.

HIGH POWER DROP-IN ISOLATOR

Description

Specifications

Parameter

Frequency Range (MHz)

Insertion Loss (dB)

Isolation (dB)

Return Loss (dB)

Minimum

2110

.18

>25

Typical

Maximum

2170

.25

Absolute Maximum Ratings

Parameter

Forward Power

Reverse Power

Operating Temperature

Storage Temperature

Maximum

100 Watts

-40 to +85

°C

-40 to +85

°C

Note: Typical values represent Mid-band performance @ 25°C.

Schematic

Package

Pin Functions

Function

INPUT

OUTPUT

Typical Test Data – Insertion Loss

Insertion Loss

0.00

-0.05

S21

-0.10

-0.15

-0.20

-0.25

-0.30

2050

Typical Test Data – Return Loss and Isolation

Return Loss and Isolation

-20

-25

-30

-35

-40

2050

S11

S22

S12

2100

2150

Frequency (MHz)

2200

2250

2100

2150

Frequency (MHz)

2200

2250

Specifications and information on this data sheet are subject to change without notice..

1860 Hartog Drive, San Jose, California 95131 USA

Leffelholzstr. 20, D-90441, Nurnberg, Germany

2/1-2F, No.99 Lane 2535 Gudai Rd, Shanghai, China PC 201100

Tel: 001-408-436-7720

Tel: +49(0)911/9411 233

Tel: (86)21-5416-8648

Fax: 001-408-436-7689

Fax: +49(0)911/9411 198

Fax: (86)21-5416-8753
