520-021: DescriptionMounting Hardware Perm-O-Pad Round TO-5 Mnt White; CategoryTopical application Mechanical and electrical/engineering/automation; File Size37KB，1 Pages; ManufacturerBivar

Download Datasheet Parametric View All

520-021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	520-021	-	-	View	Buy Now

520-021 Overview

Mounting Hardware Perm-O-Pad Round TO-5 Mnt White

520-021 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	Mounting Hardware
RoHS	Details
Product	Component Mounts
Type	Integrated Circuit
Material	Nylon
Mounting Hole Size	1.1 mm
Outside Diameter	8.8 mm
Thickness	0.5 mm
Color	White
Packaging	Bulk
Factory Pack Quantity	500
Unit Weight	0.001305 oz

Preview

Download Datasheet

View All

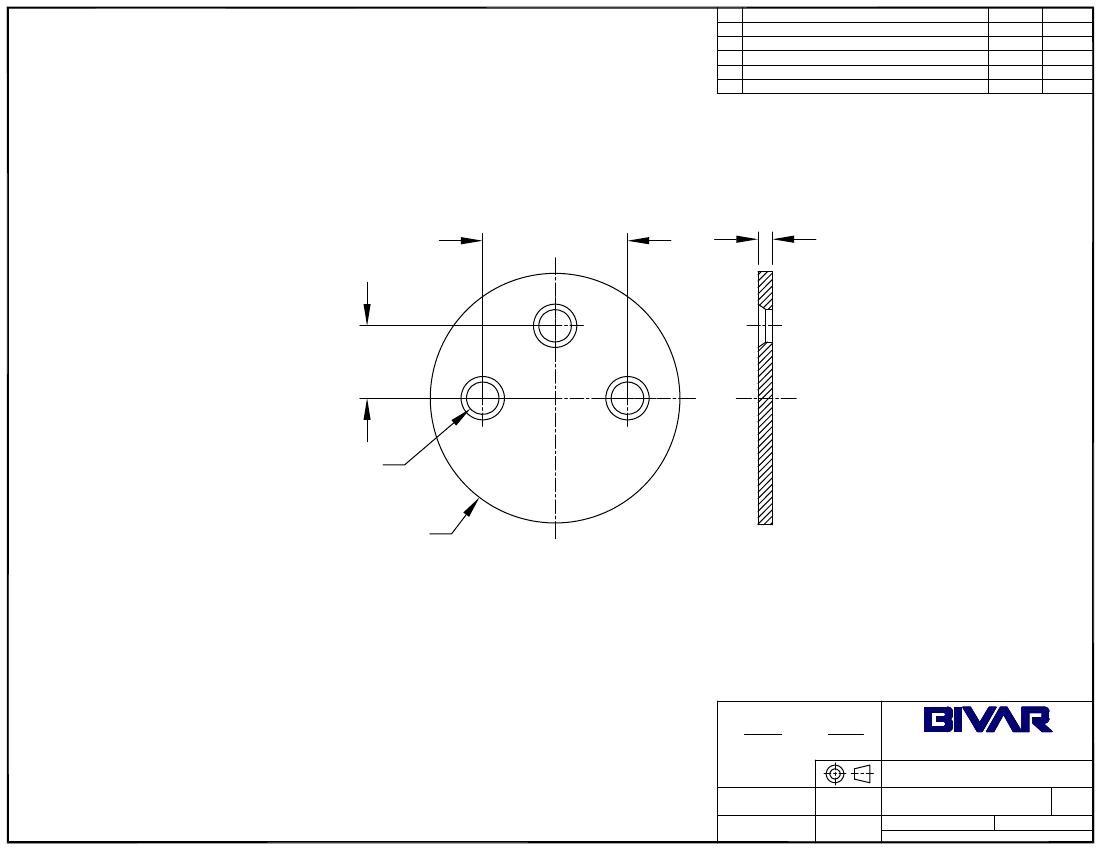

REV.

DESCRIPTION

DATE

APPROVED

B

C

Engineering Update w/o Changes

Removed Material Code

02/23/04

05/22/16

M. C.

J. C.

0.200 [5.1mm]

0.020 [0.5mm]

0.100 [2.5mm]

Ø.045 [Ø1.1mm]

w/ Ø.060 C'SINK

TYP.

Ø.345 [Ø8.8mm]

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

.X

.XX

.XXX

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

PERM-O-PAD TO-5 MOUNT

DATE:

2. MATERIAL: NYLON 6/6, 94V-2, WHITE.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

DESIGNED:

PART NO:

REVISION:

S. Irving

CHECKED:

09/15/98

DATE:

520-021

C

M. Chen

02/07/03

CAGE CODE : 32559

SHEET #

1

OF

1

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
