Product data sheet
Characteristics
ZB6EB5A

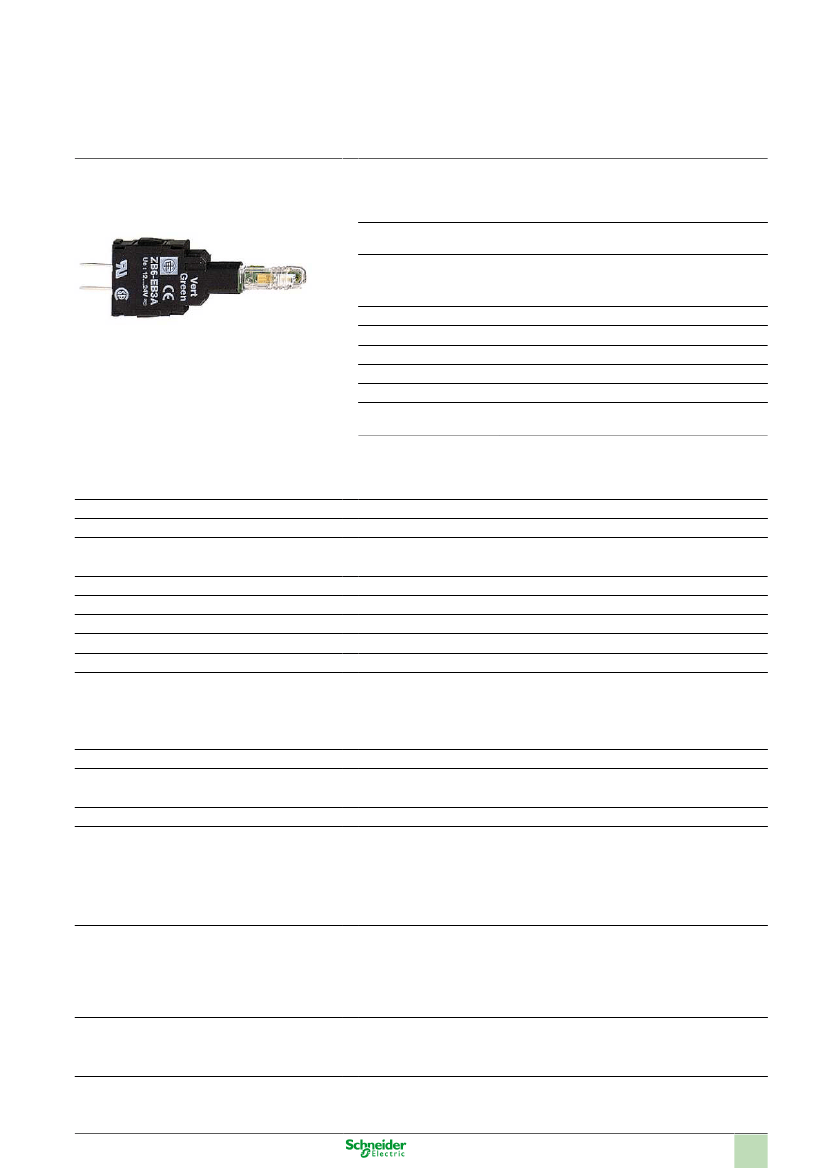

yellow light block with body/fixing collar with
integral LED 12...24V
Main
Range of product
Product or component
type
Device short name
Sale per indivisible
quantity
Connections - terminals
Light source
Bulb base
Light block supply
Light source colour
[Us] rated supply volt-
age
Harmony XB6
Complete body for pilot lights
ZB6
5
Pins for printed circuit board (1 x 0.5 mm)
LED
Integral LED
Direct
Yellow
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
12...24 V AC/DC
Complementary
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Operating position
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Signalling type
Supply voltage limits
Current consumption
Surge withstand
16 mm
58 mm
(X1-X2)PL
0.003 kg
Any position
250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
4 kV conforming to EN 60947-1
Steady
6...30 V AC/DC
15 mA
2 kV in free air conforming to IEC 61000-4-5
1 kV in contact conforming to IEC 61000-4-5
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
Standards
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
CCC
CSA
GOST
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
+/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC
60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC
60068-2-27
2 kV conforming to IEC 61000-4-4
10 V/m conforming to IEC 61000-4-3
Product certifications
Vibration resistance
Shock resistance
Resistance to fast transients
Resistance to electromagnetic fields
Feb 18, 2018
1
Resistance to electrostatic discharge
Electromagnetic emission
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
Class B conforming to IEC 55011
2
Product data sheet
Mounting and Clearance
ZB6EB5A
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection

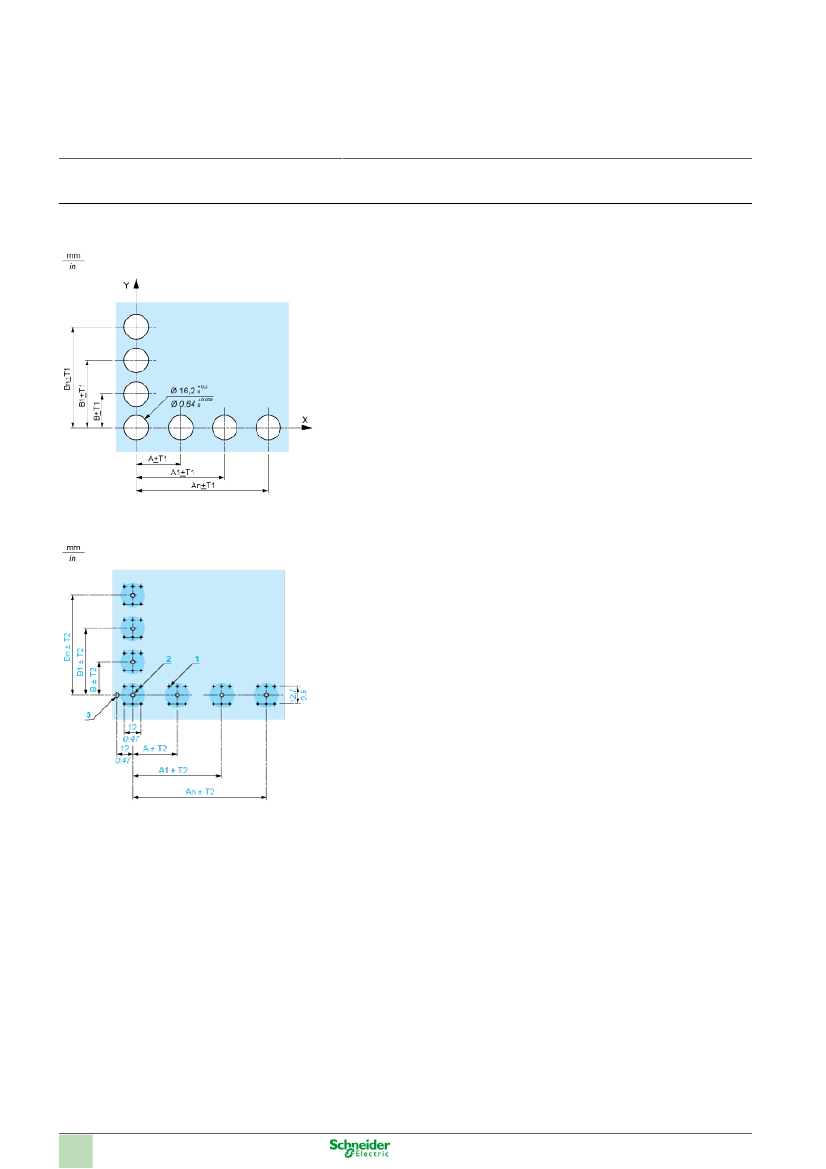

Front Panel Cut-out (Viewed from Installer’s Side)
Printed Circuit Board Drillings (Viewed from Electrical Block Side)
A
B
(1)
(2)
(3)
24 mm/0.94 in. minimum for rectangular heads, 18 mm/0.71 in. minimum for square or circular heads
18 mm/0.71 in. minimum
6 x Ø 1.1 mm / 6 x Ø 0.04 in. holes.
0
0
1 x Ø 2.6
-0.2
mm / 1 x Ø 0.10 -
-0.008
in. hole for locating pin, only when using socket adaptor ZB6Y010.
1 x Ø 3.2
-0.2
mm / 1 x Ø 0.13
-0.008
in. hole for fixing of printed circuit board onto the front panel using body bracket ZB6Y011.
This hole must be drilled on the left-hand side, when heads are positioned at the normal angle. Fit a body bracket ZB6Y011 every
72 mm/2.83 in. maximum for cut-outs on 24 mm/0.94 in. centres (rectangular heads) and 54 mm/2.13 in. maximum for cut-outs on
18 mm/0.71 in. centres (square or circular heads).
0
0
General tolerances of the panel and printed circuit board: T1, T2: T1 + T2 = 0.3 mm/0.01 in. maximum.
Installation precautions:
Thickness of printed circuit board: 1.6 mm/0.06 in. minimum.
4
