841CS5-UNI: DescriptionTime Delay & Timing Relays Current Sensing Rly SPDT, 15 Amp Rating; CategoryTopical application Mechanical and electrical/engineering/automation; File Size318KB，4 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric Compare View All

841CS5-UNI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	841CS5-UNI	-	-	View	Buy Now

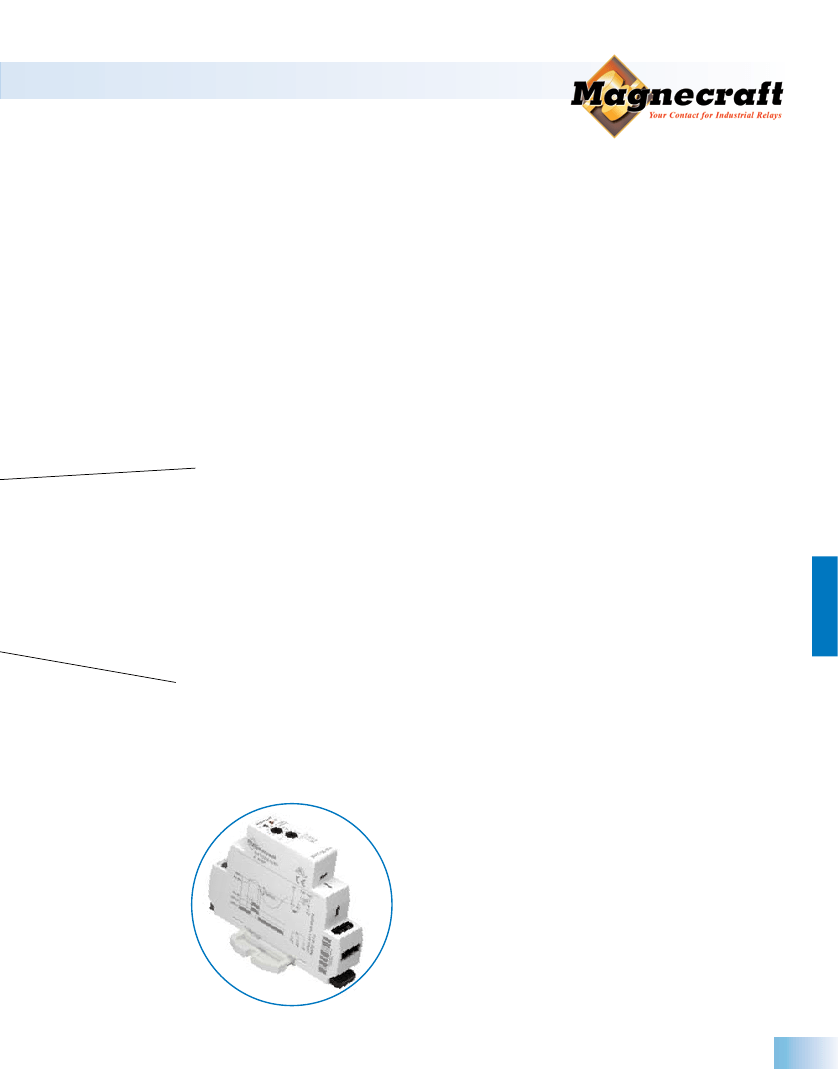

Time Delay & Timing Relays Current Sensing Rly SPDT, 15 Amp Rating

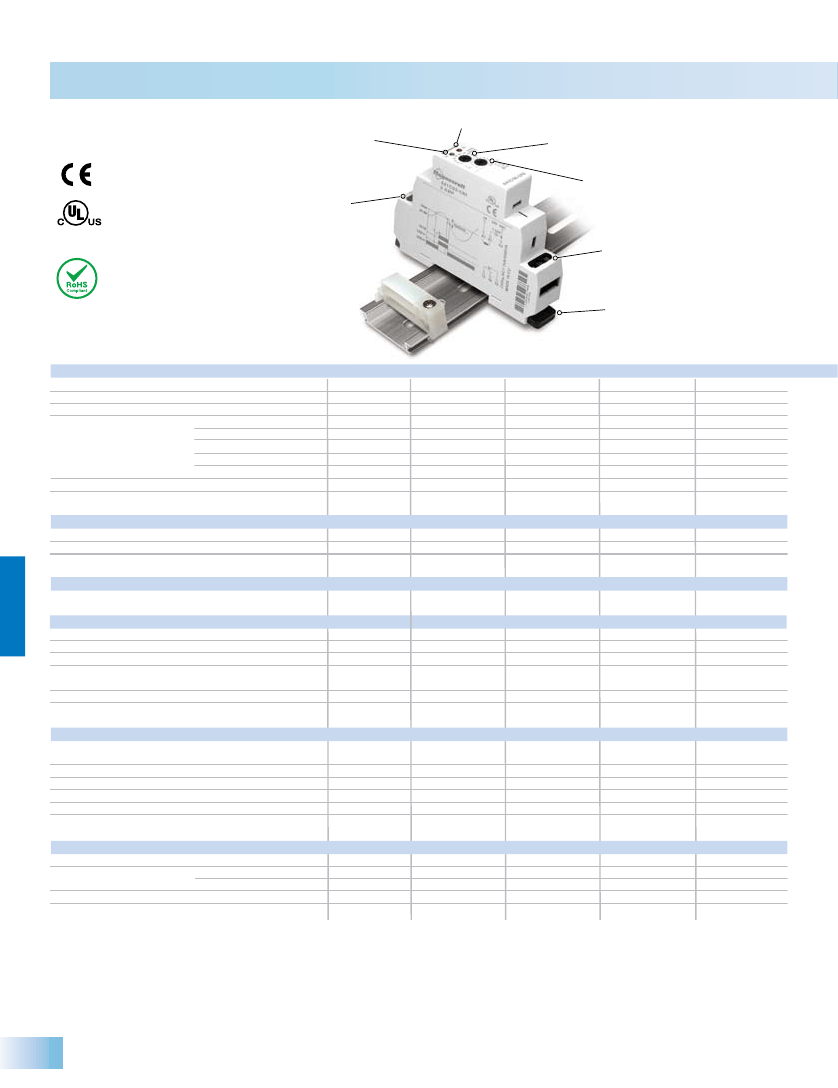

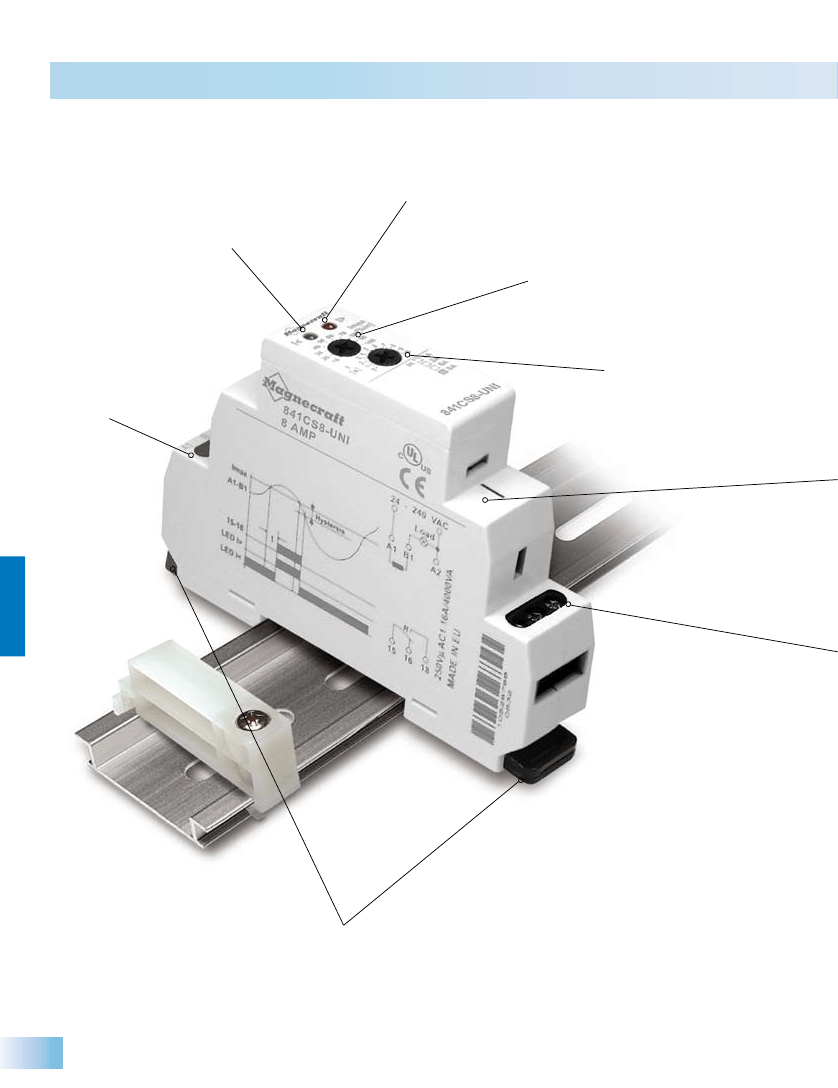

Advantages of the 841 Current Sensing Relay

Output Indication

Red LED Light.

Input Indication

Green LED Light.

Current Sensing Adjustment Knob

Sense Anywhere from 10% to 100%

of the Rated Sensing Current.

Input Terminals

Accepts up to a

14 AWG Wire.

Time delay

Delay the Transfer of

Contacts from

0 to 10 Secs.

SECTION 5

DIN Rail Mounting

Mounts Directly On a DIN Rail.

5/10

M a gn e c r a ft S o lu t io n G ui de 1 0 5 A

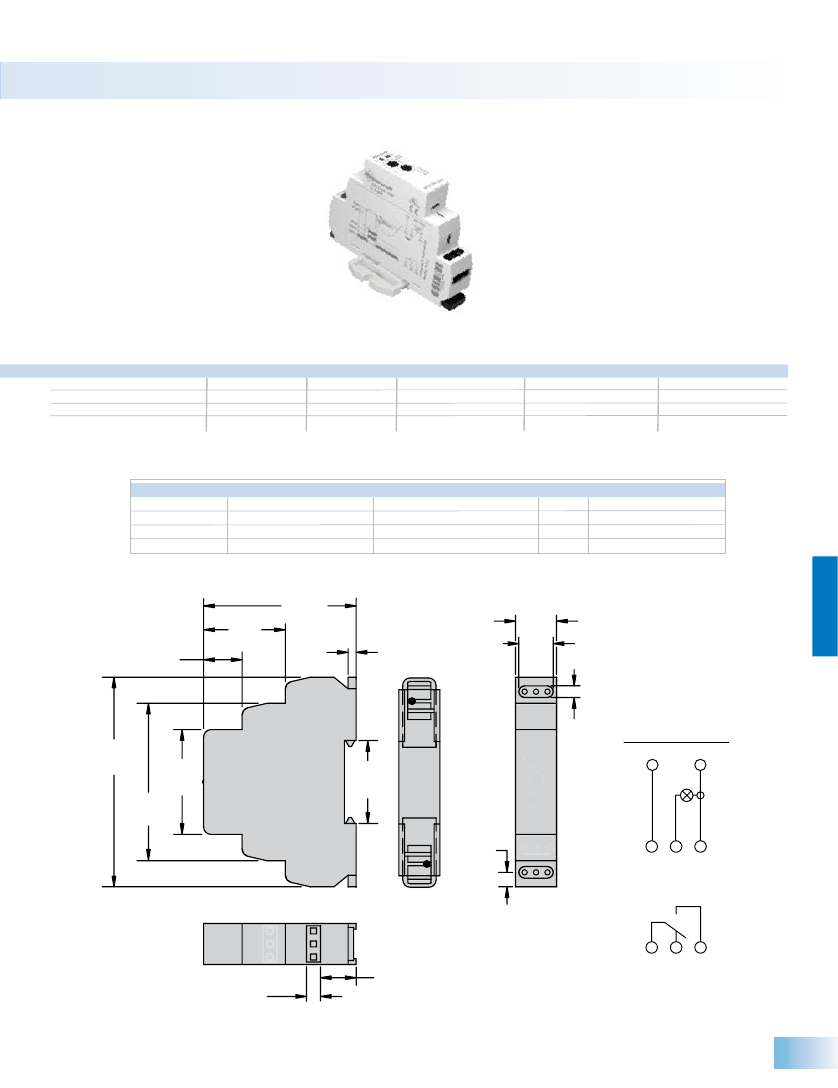

	841CS5-UNI	841CS8-UNI	841CS2-UNI	841CS1-UNI
Description	Time Delay & Timing Relays Current Sensing Rly SPDT, 15 Amp Rating	Time Delay & Timing Relays Current Sensing Rly SPDT, 15 Amp Rating	Time Delay & Timing Relays Current Sensing Rly SPDT, 15 Amp Rating	Time Delay & Timing Relays Current Sensing Rly SPDT, 15 Amp Rating
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC
Product Category	Time Delay & Timing Relays	Time Delay & Timing Relays	Time Delay & Timing Relays	Time Delay & Timing Relays
Display Type	LED	LED	LED	LED
Termination Style	Quick Connect Terminal	Quick Connect Terminal	Quick Connect Terminal	Quick Connect Terminal
Operating Supply Voltage	24 VAC to 240 VAC	24 VAC to 240 VAC	24 VAC to 240 VAC	24 VAC to 240 VAC
Timing Range	0.1 s to 10 s	0.1 s to 10 s	0.1 s to 10 s	0.1 s to 10 s
Contact Rating	15 A	15 A	15 A	15 A
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)
Features	A - On Delay (Power On)	A - On Delay (Power On)	A - On Delay (Power On)	A - On Delay (Power On)
Power Rating	1.5 VA	1.5 VA	1.5 VA	1.5 VA
Contact Material	Silver Alloy	Silver Alloy	Silver Alloy	Silver Alloy
Dielectric Strength	2.5 kVAC	2.5 kVAC	2.5 kVAC	2.5 kVAC
Factory Pack Quantity	10	10	10	10
