AST-02308MR-R

Description
Speakers & Transducers MYLAR PCB 500-4000Hz
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size272KB,1 Pages
ManufacturerProjects Unlimited, Inc.
Websitehttp://www.pui.com/
Download Datasheet Parametric View All

AST-02308MR-R Online Shopping

Suppliers Part Number Price MOQ In stock
AST-02308MR-R - - View Buy Now

AST-02308MR-R Overview

Speakers & Transducers MYLAR PCB 500-4000Hz

AST-02308MR-R Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerProjects Unlimited, Inc.
Product CategorySpeakers & Transducers
RoHSDetails
ProductSpeakers
TypeElectromagnetic
Frequency20 kHz
Sound Pressure Level75 dBA
Impedance8 Ohms
Power Rating100 mW (1/10 W)
ShapeRound
Termination StyleSolder Pin
Diameter23 mm
Depth8.5 mm
Magnet MaterialFerrite
Cone MaterialMylar
PackagingTray
Maximum Operating Temperature+ 60 C
Minimum Operating Temperature- 20 C
Factory Pack Quantity50
SPECIFICATIONS
PARAMETERS
RATED INPUT POWER
MAX INPUT POWER
IMPEDANCE
OUTPUT SPL @ 0.1W/0.5M
(AT 1.2, 1.5, 1.6, 1.8 kHz)
DISTORTION (MAX.)
RESONANT FREQUENCY
FREQUENCY RANGE
HOUSING MATERIAL
CONE MATERIAL
MAGNET MATERIAL
OPERATING TEMPERATURE
WEIGHT
VALUES
0.1
0.2
8 ± 20%
75 ± 3
5%
1,500 ± 20%
600 ~ 20,000
ABS
MYLAR
NdFeB
-20 ~ +60
3.2
UNITS
W
W
OHM
dBA
-
Hz
Hz
-
-
-
°C
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
LTR
-
A
B
C
D
E
DESCRIPTION
REVISION HISTORY
DATE
4/19/2006
11/19/2007
2/25/2009
1/5/2011
6/28/2011
12/23/2011
APPROVED
B.R.
B.R.
B.R.
C.W.
M.L.
©2003, Projects Unlimited Inc.
RELEASED FROM ENGINEERING
REVISED POWER RATINGS
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
ADDED NOTE 4
REVISED MAGNET MATERIAL
REVISED HOUSING MATERIAL

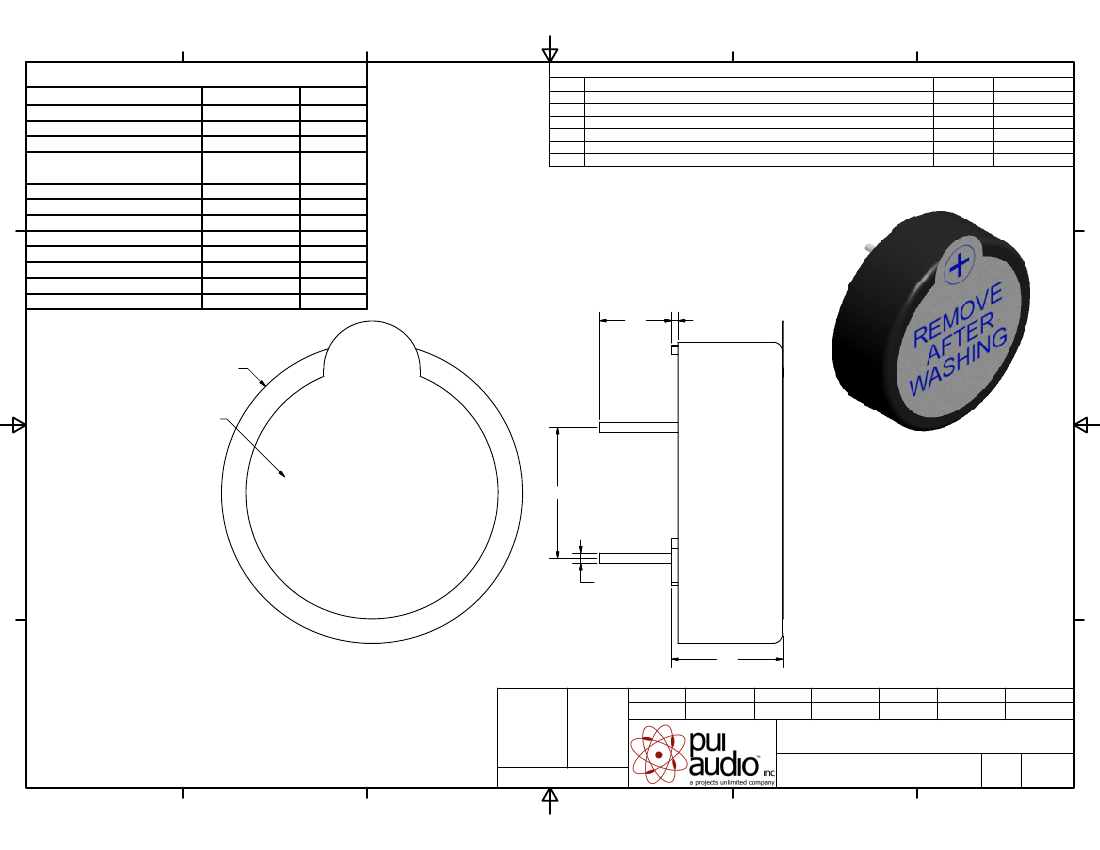

5.5
0.5
23
REMOVABLE
WASH TAB
10
0.8 (2)
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
4. HAND SOLDER ONLY.
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
8.5
Designed by
Date
Checked by
Date
Approved by
Date
Drawn Date
SIZE
B.R.
4/19/2006
B.R.
4/19/2006
E.P.
4/19/2006 2/25/2009
A3
AST-02308MR-R
Speaker
Edition
Sheet
AST-02308MR-R.idw
-
1/1
