Last Update:
12-26-05

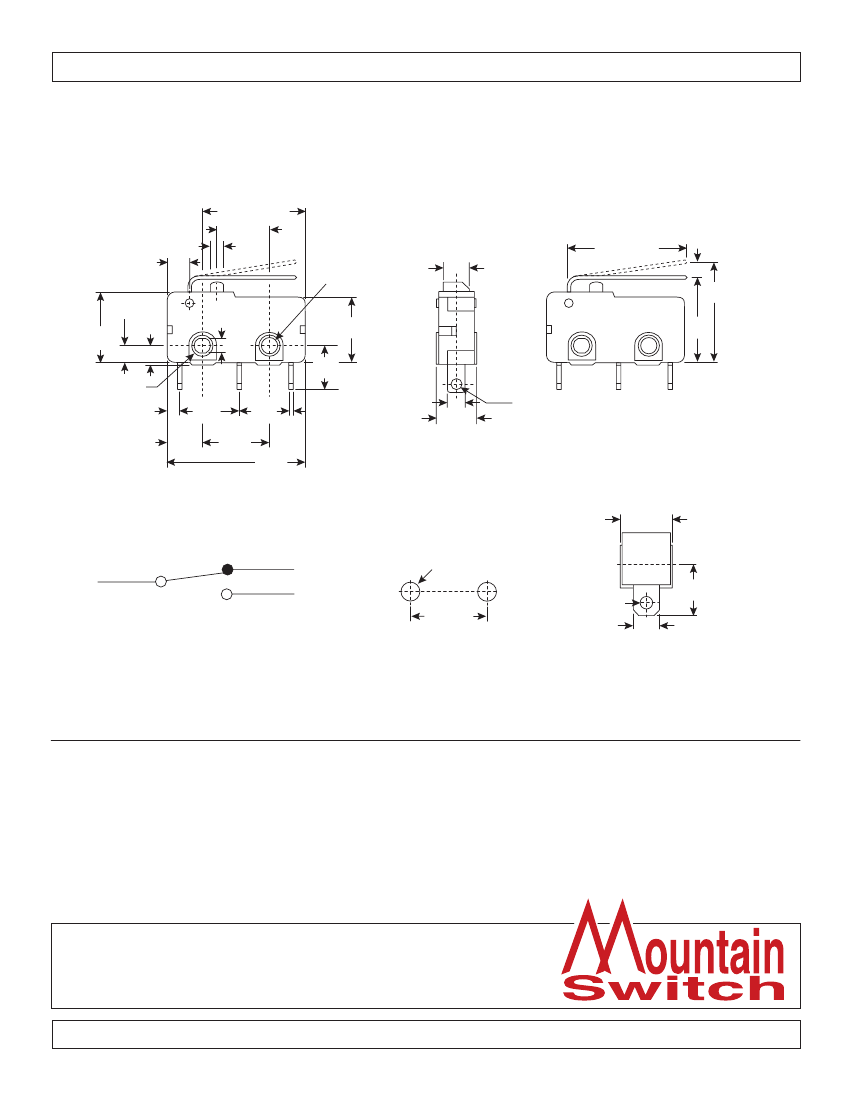

Dimensions: mm (In.)
Ref. #:
MS-100680
14.70 (.578)
3.20
(.126)
7.50 (.295)
2
(.079)
ø2.40±.10
(ø.09±.004)
3.55 (.14)
16.60 (.653)
PT
FP
2.40
(.09)
C
NO
NC
9.50
(.374)
6.40
(.252)
3.20
(.126)
6.40
(.252)
OP
2.50
(.098) 2.90
(.114)
10.20
(.401)
ø2.50
(ø.098)
1.60
(.062)
8.80
(.346)
5.10
(.20)
7.30
(.287)
ø1.60
(ø.06)
9.50
(.374)
.60
(.023)
19.80
(.779)
6.40 (.252)
2-ø2.40 (ø.09)
mounting holes
or M2.3 screw holes
ø1.60
(ø.063)
Holes
3.20 (.126)
Contact Configuration
Mounting Holes
Solder Terminal
6.40
(.252)
N.C.
COM.
N.O.
9.50±.10
(.374±.004)
Mechanical Specifications:
•
Operating Frequency: 120 operations/min
•
Life: 10,000,000 operation min.
Note:
•
RoHS compliant and process
compatible with 260˚ solder.
Electrical Specifications:
•
Operating Frequency: 10~30 operations/min
•
Life: 6,000~100,000 operations
•
Rating: 10.1A/125VAC/250VAC
•
Contact Resistance: 30mΩ max.
•
Insulation Resistance: 100mΩ min. @ 500VDC
•
Dielectric Strength: 1,000VAC RMS (50-60HZ)
Operating
Characteristics:
•
OF Max. (g): 55
•
Op (mm): 11.8 ±0.9
•
PT Max. (mm): 4.0
•
OT Min. (mm): 0.6
•
MD Max. (mm): 0.8
•
FP Max. (mm): 14.9
•
RF Min. (g): 13
Sub-Miniature Snap Switch
101-61-10-055ST-EV
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
