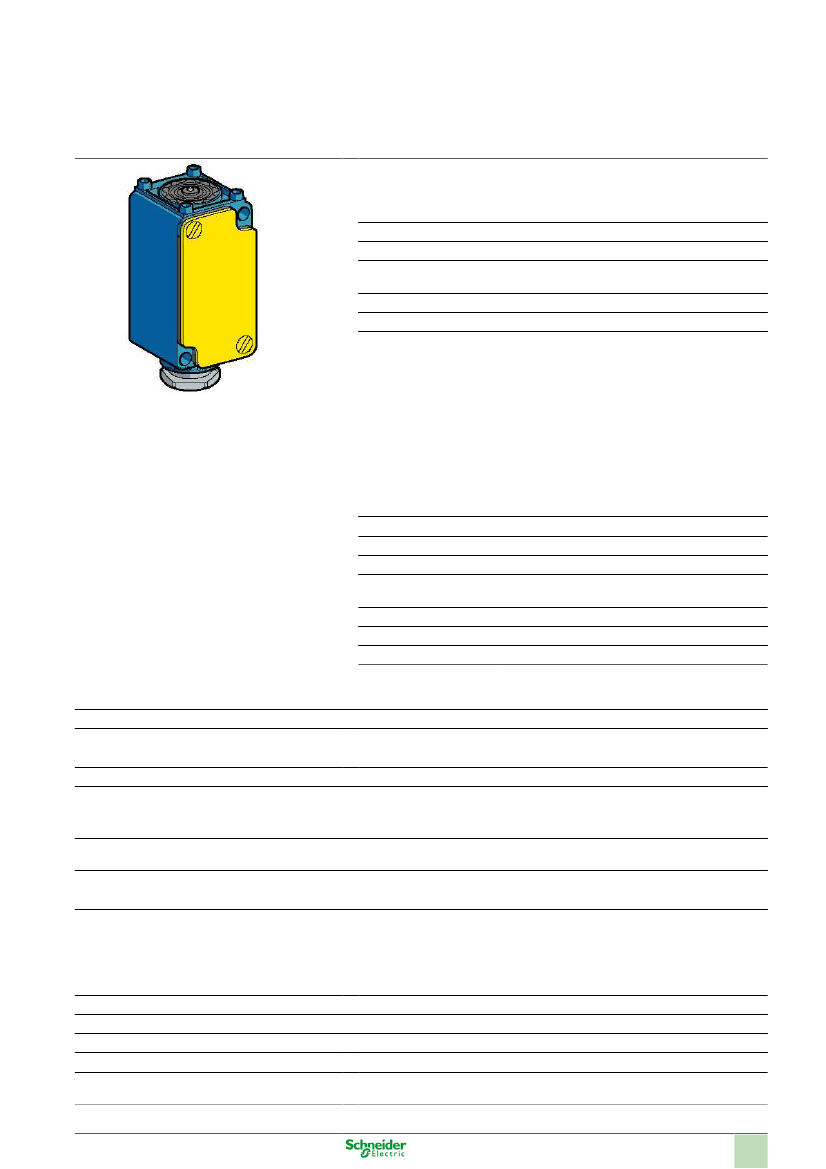

Product data sheet
Characteristics
ZC2JC1H29
limit switch body ZC2J - fixed - without display -
1C/O - M20
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Series name
Product or component
type
Device short name
Body type
Product compatibility
Associated head
Commercialised
OsiSense XC
Standard format
Limit switch body
ZC2J
Fixed
XC2J
ZC2JE01
ZC2JE02
ZC2JE03
ZC2JE05
ZC2JE09
ZC2JE61
ZC2JE62
ZC2JE63
ZC2JE64
ZC2JE65
ZC2JE66
ZC2JE70
Metal
1 entry tapped for M20 x 1.5 cable gland
1
1 C/O
Snap action
1 1 position
Silver plated contacts
Body material
Cable entry
Number of poles
Contacts type and
composition
Contacts operation
Number of steps
Contacts material
Complementary
Local display
Electrical connection
Positive opening
Minimum actuation speed
[Ie] rated operational current
[Ithe] conventional enclosed thermal current
[Ui] rated insulation voltage
Resistance across terminals
Short circuit protection
Electrical durability
Without
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Without
0.01 m/min
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
10 A
300 V conforming to CSA C22.2 No 14 contact block
500 V conforming to IEC 60947-1 contact block
0.25 mOhm conforming to IEC 60255-7 category 3
10 A by gG cartridge fuse
5000000 cycles, DC-13 48 V, 7 W, operating rate: < 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W, operating rate: < 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 120 V, 4 W, operating rate: < 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
1.57 in (40 mm)
3.19 in (81 mm)
1.61 in (41 mm)
0.78 lb(US) (0.355 kg)
(11-12)NC
(13-14)NO
Width
Height
Depth
Product weight
Terminals description ISO n°1
Feb 28, 2016
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Environment
IP degree of protection
IK degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Environmental characteristic
IP65
IK08
-13...158 °F (-25...70 °C) for standard environment
-40...158 °F (-40...70 °C)
Standard environment
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22449 - LIMIT SWITCHES,ACCESSORIES
T
003389110833638
1
0.80
Non-Stock - Not normally stocked in distribution facility
N
FR
Offer Sustainability
Sustainable offer status
RoHS
REACh
Product environmental profile
Product end of life instructions
Not Green Premium product
Will be Compliant on 3Q2013
Reference not containing SVHC above the threshold
Available
Download Product Environmental
Need no specific recycling operations
Contractual warranty
Period
18 months
2
