PV2F240NNM01: DescriptionPushbutton Switches 0-2A 48VDC Off (On) 16mm Flat 1 Pole; CategoryMechanical and electronic products switch; File Size185KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

PV2F240NNM01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PV2F240NNM01	-	-	View	Buy Now

PV2F240NNM01 Overview

Pushbutton Switches 0-2A 48VDC Off (On) 16mm Flat 1 Pole

PV2F240NNM01 Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.059 inch
Actuator material	BRASS
Actuator stroke	1.4986 mm
Actuator type	PUSHBUTTON
Casing diameter	0.622 inch
Casing type	M16X1
center contact material	BRASS
Center contact plating	SILVER
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@48VDC
Contact function	OFF-(ON)
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	48 V
Dielectric withstand voltage	2000VAC V
Electrical life	200000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	PV2F240NNM01
Installation features	PANEL MOUNT
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.197 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

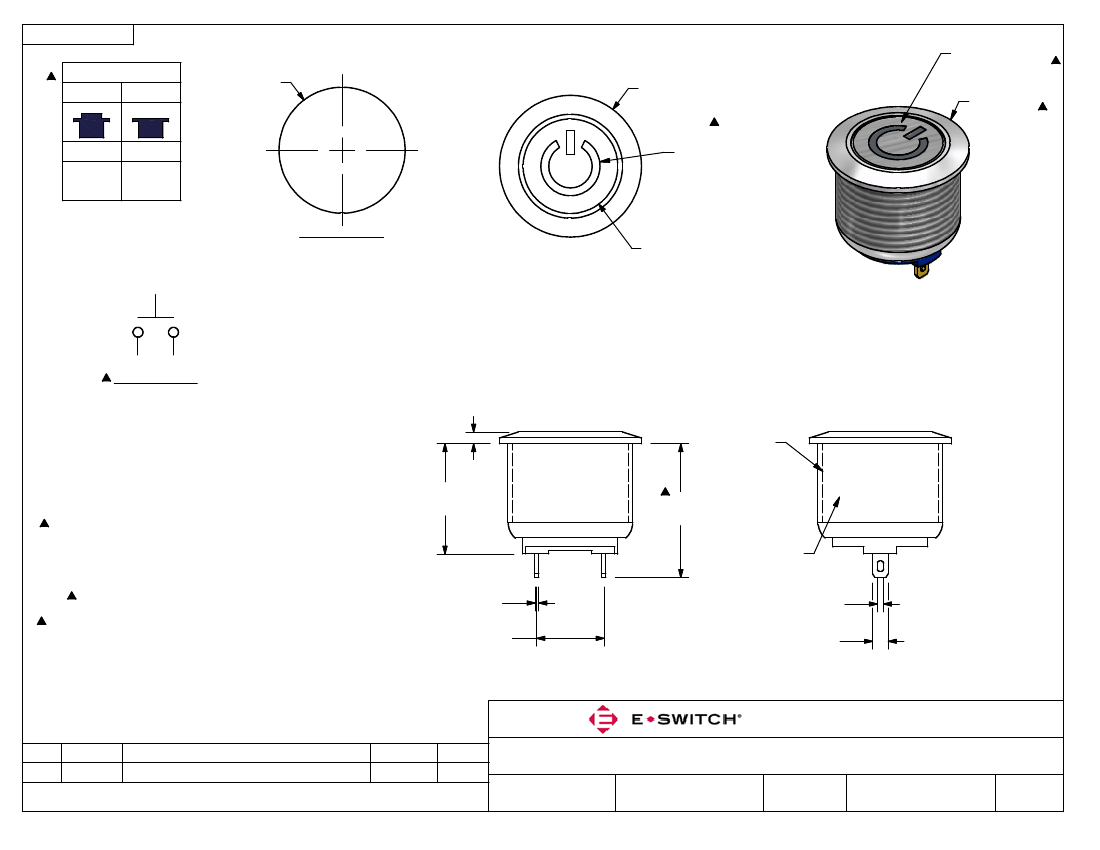

SHEET 1 OF 1

FLAT ACTUATOR

FINISH: NICKEL

SWITCH FUNCTION

POS. 1

POS. 2

n

16.00

n

18.00

[.709 in]

[.630 in]

BODY FINISH:

NICKEL

OFF

OPEN

(ON)

1-2

M01 MARKING

LASER ETCHED

IEC 5009

POWER SYMBOL

(ON) = MOMENTARY

PANEL CUTOUT

MAX. PANEL THICKNESS 6.0mm

n

12.00

[.472 in]

1

2

CIRCUIT: SPST

1.50

`

.50

[.059

`

.020

in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6: TRAVEL: 1.5 ± 0.2mm

7. ELECTRIC LIFE: 200,000 MAKE-AND-BREAK CYCLES

8. INSULATION RESISTANCE: 1,000 M MIN.

9. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

10. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC

11. OPERATING TEMP.: -20° to 55°C

C

12. DENOTES CRITICAL PARAMETER.

13. INGRESS PROTECTION: IP65

14. HARDWARE SUPPLIED: O-RING AND HEXNUT

15. 2002/95/EC (ROHS) COMPLIANT

M16x1.0

14.00

`

.50

[.551

`

.020

in]

17.00

`

.50

[.669

`

.020

in]

SEE NOTE 14

FOR HARDWARE

1

2

.80

[.031 in]

2.00

[.079 in]

2

.50

[.020 in]

8.50

[.335 in]

A

REV

20874

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

11/9/12

DATE

EBP

BY

TITLE

SCALE

PV2F240NNM01

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

11/9/2012

DR

DWG

REV

EBP

52-PV2F240NNM01

A
