Product data sheet
Characteristics

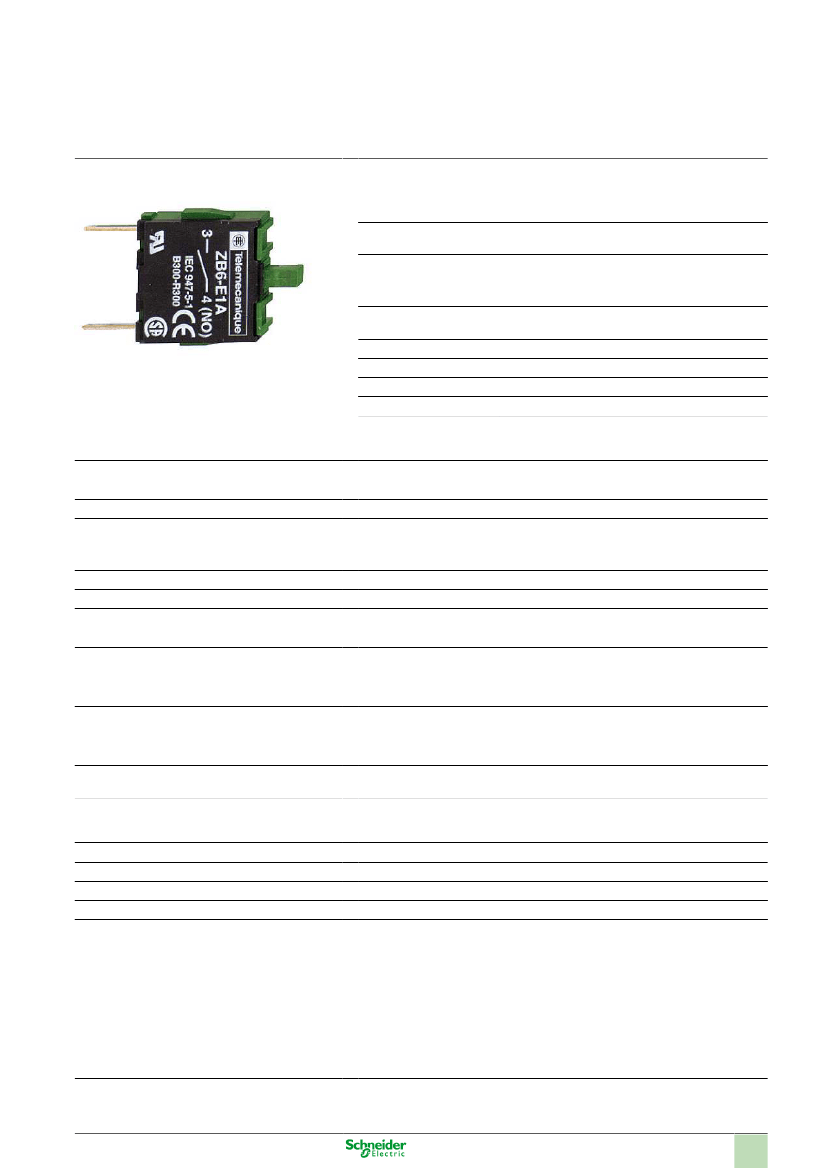

ZB6E1D
single contact block for head Ø16 1NO gold
flashed pins for PCB
Main
Range of product
Product or component
type
Device short name
Sale per indivisible
quantity
Contacts type and com-
position
Contacts operation
Contact block type
Connections - terminals
Contacts material
Harmony XB6
Contact block
ZB6
10
1 NO
Slow-break
Single
Pins for printed circuit board
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Gold flashed (Ag/Ni/Au) contacts
Complementary
Terminals description ISO n°1
Product weight
Positive opening
Operating travel
Operating force
Mechanical durability
Short circuit protection
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
(3-4)NO
0.004 kg
With positive opening conforming to EN/IEC 60947-5-1 appendix K
3.5 mm (total travel)
2 mm (NO changing electrical state)
1.6 N (NO changing electrical state)
5000000 cycles
6 A cartridge fuse type gG
250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
4 kV conforming to EN/IEC 60947-1
0.22 A at 125 V, DC-13, R300
0.1 A at 250 V, DC-13, R300
1.5 A at 240 V, AC-15, B300
3 A at 120 V, AC-15, B300
1000000 cycles, DC-13 at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 con-
forming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15 at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 con-
forming to EN/IEC 60947-5-1 appendix C
Λ = 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to EN/IEC
60947-5-4
Electrical durability
Electrical reliability IEC 60947-5-4
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
IP degree of protection
Standards
TC
-40...70 °C
-25...70 °C
IP65 conforming to IEC 60529
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
CCC
CSA
GOST
UL
Product certifications
Feb 20, 2018
1
Product data sheet
Mounting and Clearance
ZB6E1D
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection

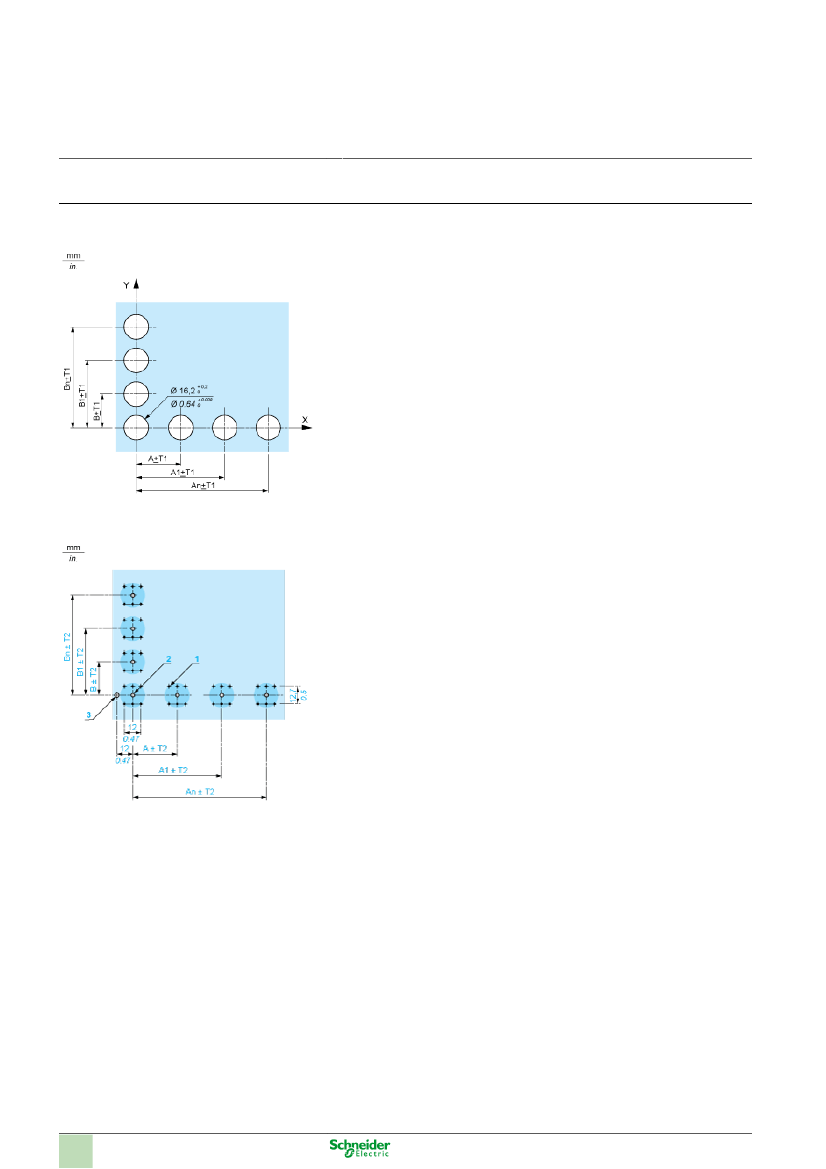

Front Panel Cut-out (Viewed from Installer’s Side)
Printed Circuit Board Drillings (Viewed from Electrical Block Side)
A
B
(1)
(2)
(3)
24 mm/0.94 in. minimum for rectangular heads, 18 mm/0.71 in. minimum for square or circular heads
18 mm/0.71 in. minimum
6 x Ø 1.1 mm / 6 x Ø 0.04 in. holes.
0
0
1 x Ø 2.6
-0.2
mm / 1 x Ø 0.10 -
-0.008
in. hole for locating pin, only when using socket adaptor ZB6Y010.
1 x Ø 3.2
-0.2
mm / 1 x Ø 0.13
-0.008
in. hole for fixing of printed circuit board onto the front panel using body bracket ZB6Y011.
This hole must be drilled on the left-hand side, when heads are positioned at the normal angle. Fit a body bracket ZB6Y011 every
72 mm/2.83 in. maximum for cut-outs on 24 mm/0.94 in. centres (rectangular heads) and 54 mm/2.13 in. maximum for cut-outs on
18 mm/0.71 in. centres (square or circular heads).
0
0
General tolerances of the panel and printed circuit board: T1, T2: T1 + T2 = 0.3 mm/0.01 in. maximum.
Installation precautions:
Thickness of printed circuit board: 1.6 mm/0.06 in. minimum.
