8579-1-15-80-21-14-10-0 datasheet, PDF

Datasheet> All Categories > The connector> 8579-1-15-80-21-14-10-0

8579-1-15-80-21-14-10-0: DescriptionCircuit Board Hardware - PCB; CategoryThe connector; File Size634KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8579-1-15-80-21-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8579-1-15-80-21-14-10-0	-	-	View	Buy Now

8579-1-15-80-21-14-10-0 Overview

Circuit Board Hardware - PCB

8579-1-15-80-21-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8579-1-15-80-21-14-10-0
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

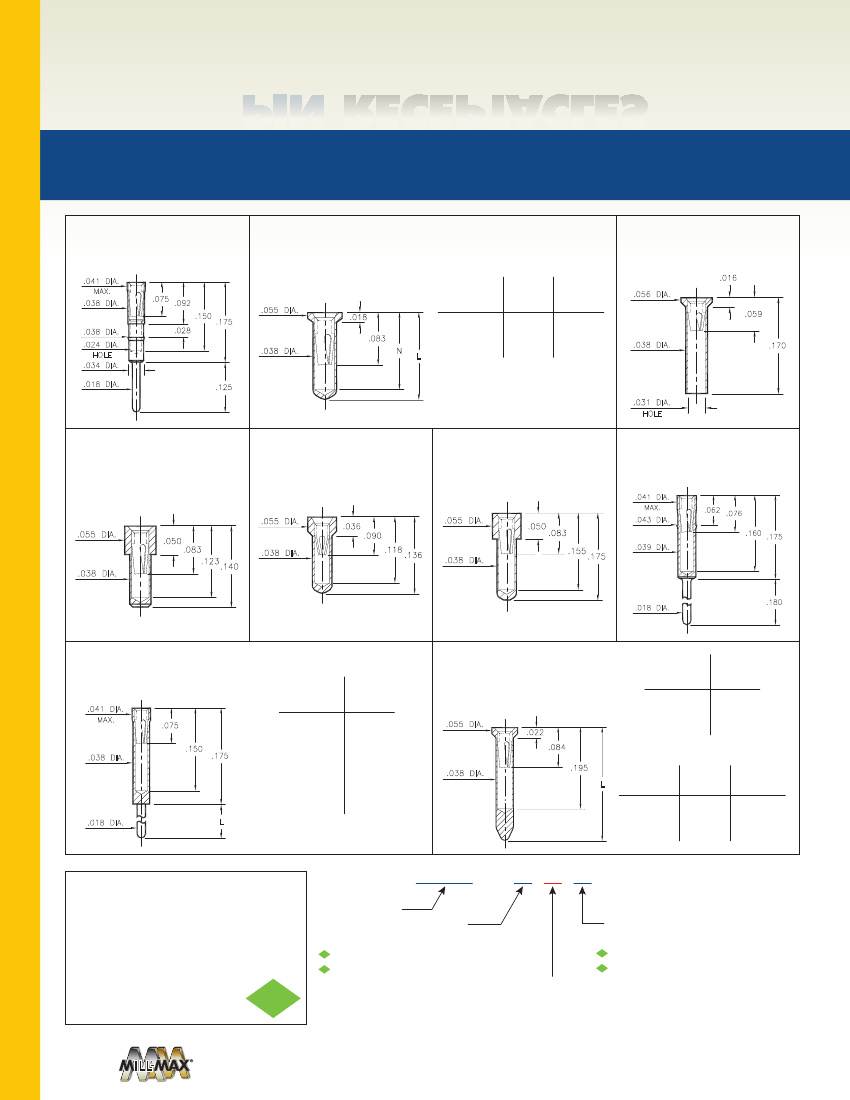

RECEPTACLES

FOR .015” - .018” DIAMETER PINS (#09 CONTACT)

FOR .015” - .020” DIAMETER PINS (#11 CONTACT)

AND .015” - .022” DIAMETER PINS (#21 CONTACT)

0467

.041 DIA.

MAX.

.038 DIA.

0467-0-15-XX-21-XX-04-0

Press-fit in .037 mounting hole

0552

0552-X-15-XX-X1-XX-10-0

.055 DIA.

.175

5522

Basic Part

Number

Length

Depth

.056 DIA.

Solder mount in .040 min. mounting hole

Also available on 16mm wide carrier tape:

1,500 parts per 13” reel

Order as: 0552-X-57-XX-X1-XX-10-0

.018

.083

.038 DIA.

5522-0-15-XX-09-XX-10-0

Solder mount in .040 min. mounting hole

.016

.075

.092

.150

.059

.038 DIA.

.024 DIA.

HOLE

.034 DIA.

.018 DIA.

.028

0552-1

0552-2

.136

.170

.120

.150

.038 DIA.

.170

.125

.031 DIA.

HOLE

0569

0569-0-15-XX-X1-XX-10-0

6023

Solder mount in .040 min. mounting hole

Also available on 16mm wide carrier tape:

2,000 parts per 13” reel

Order as: 0569-0-57-XX-X1-XX-10-0

6023-0-15-XX-21-XX-10-0

Solder mount in .040 min. mounting hole

6214

6214-0-15-XX-21-XX-10-0

Solder mount in .040 min. mounting hole

2086

.041 DIA.

MAX.

2086-0-15-XX-21-XX-04-0

Press-fit in .040 mounting hole

.055 DIA.

.036

.055 DIA.

.090

.118

.136

.050

.043 DIA.

.062 .076

.160

.175

.050

.083

.155

.039 DIA.

.083

.123

.038 DIA.

.140

.038 DIA.

.175

.018 DIA.

.180

0461

0461-X-15-XX-X1-XX-04-0

Solder mount in .020 min. mounting hole

.041 DIA.

MAX.

8579

8579-X-15-XX-X1-XX-10-0

Basic Part

Number

Length

Solder mount in .040 min. mounting hole

Also available on 24mm wide carrier tape

See chart for details

Order as: 8579-X-57-XX-X1-XX-10-0

.055 DIA.

.022

.084

.038 DIA.

.195

Basic Part

Number

Length

.075

.150

.038 DIA.

.175

0461-0

0461-1

0461-2

0461-3

0461-4

0461-5

.400

.275

.180

.125

.060

.440

8579-0

8579-1

.234

.295

T&R Packaging

Basic Part

Number

Tape

Width

Parts per

13” Reel

.018 DIA.

8579-0

8579-1

24mm

1,200

1,000

PAGE 158 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

μ”

TIN/LEAD OVER NICKEL

100

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#09, #11 or #21

CONTACT (DATA ON PAGES 250 & 251)

(For alternate contact choices, see group A on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
