D2W202F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> D2W202F

D2W202F: DescriptionSolid State Relays - PCB Mount PCB SIP SSR 280VAC 2A, 3-32VDC,ZC; CategoryLED optoelectronic/LED photoelectric; File Size565KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

D2W202F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D2W202F	-	-	View	Buy Now

D2W202F Overview

Solid State Relays - PCB Mount PCB SIP SSR 280VAC 2A, 3-32VDC,ZC

D2W202F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC, SIP-4
Reach Compliance Code	compliant
Other features	WITH ZERO CROSS OVER CIRCUIT, UL RECOGNIZED
control current	0.003 A
control voltage	3 V
input type	DC
Maximum insulation voltage	4000 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	2 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Output circuit type	Triac
total height	30 mm
total length	43 mm
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

DataSheet

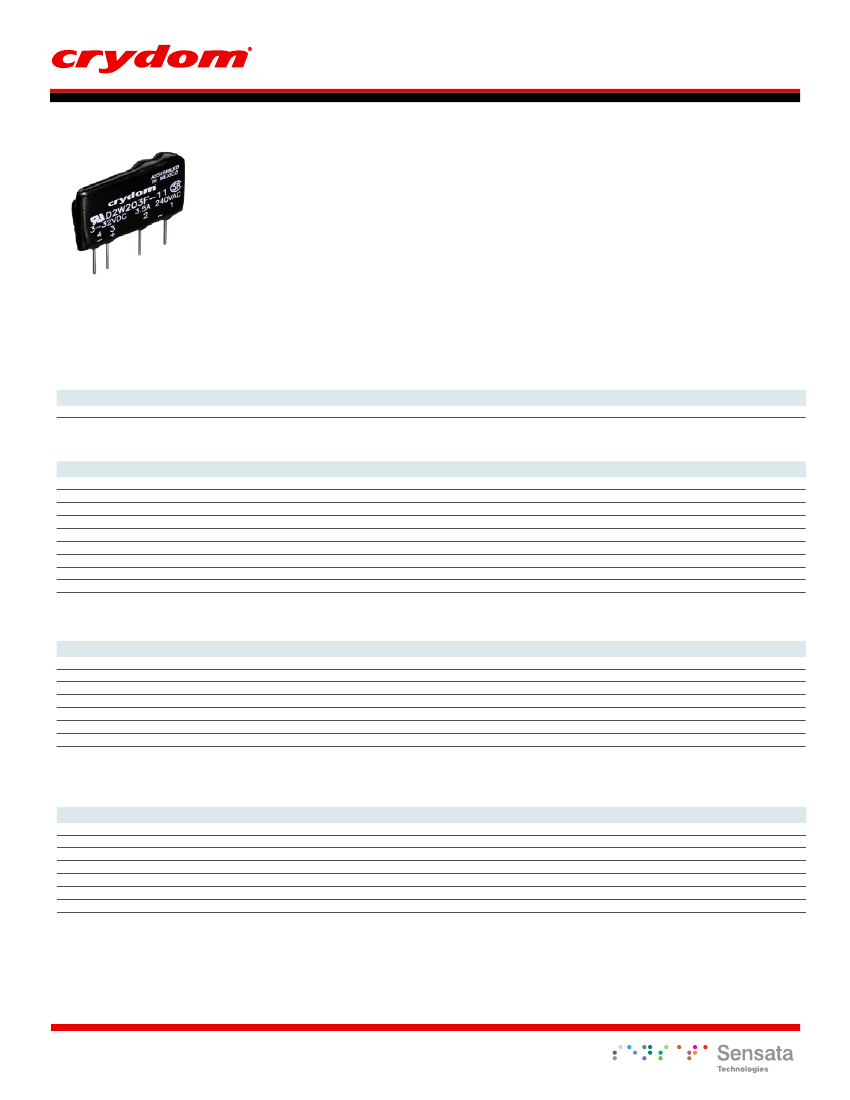

D2W Series

•

SIP SSR

•

Ratings to 3.5 A @ 280 VAC

•

DC control

•

Zero-crossing (resistive loads) output

•

Internal snubber network

PCB Mount

PRODUCT SELECTION

Control Voltage

3-32 VDC

D2W202F

D2W203F

3.5 A

D2W203F-11

OUTPUT SPECIFICATIONS

(1)

Description

Operating Voltage (47-63Hz) [Vrms]

24-280

600

200

0.06

1.4

0.5

24-280

600

200

0.06

1.4

0.5

3.5 A

24-280

600

200

3.5

0.06

1.4

0.5

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mA]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/ sec]

(3)

Maximum Load Current [Arms]

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Minimum Power Factor (with Maximum Load)

INPUT SPECIFICATIONS

(1)

Description

Control Voltage Range

Must Turn On Voltage

Typical Input Current @ 5 VDC

Nominal Input Impedance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [msec]

3.5-32 VDC

3.0 VDC

1.0 VDC

3.0 mA

1500 Ohm

1/2 Cycle

GENERAL SPECIFICATIONS

Description

Dielectric Strength, Input/Output/Base (50/60Hz)

(2)

Minimum Insulation Resistance (@ 500 VDC)

(2)

Maximum Capacitance, Input/Output

Ambient Operating Temperature Range

Ambient Storage Temperature Range

Weight (typical)

Encapsulation

Parameters

4000 Vrms

Ohm

10 pF

-30 to 80°C

-30 to 125°C

0.6 oz. (17g)

Thermally Conductive Epoxy

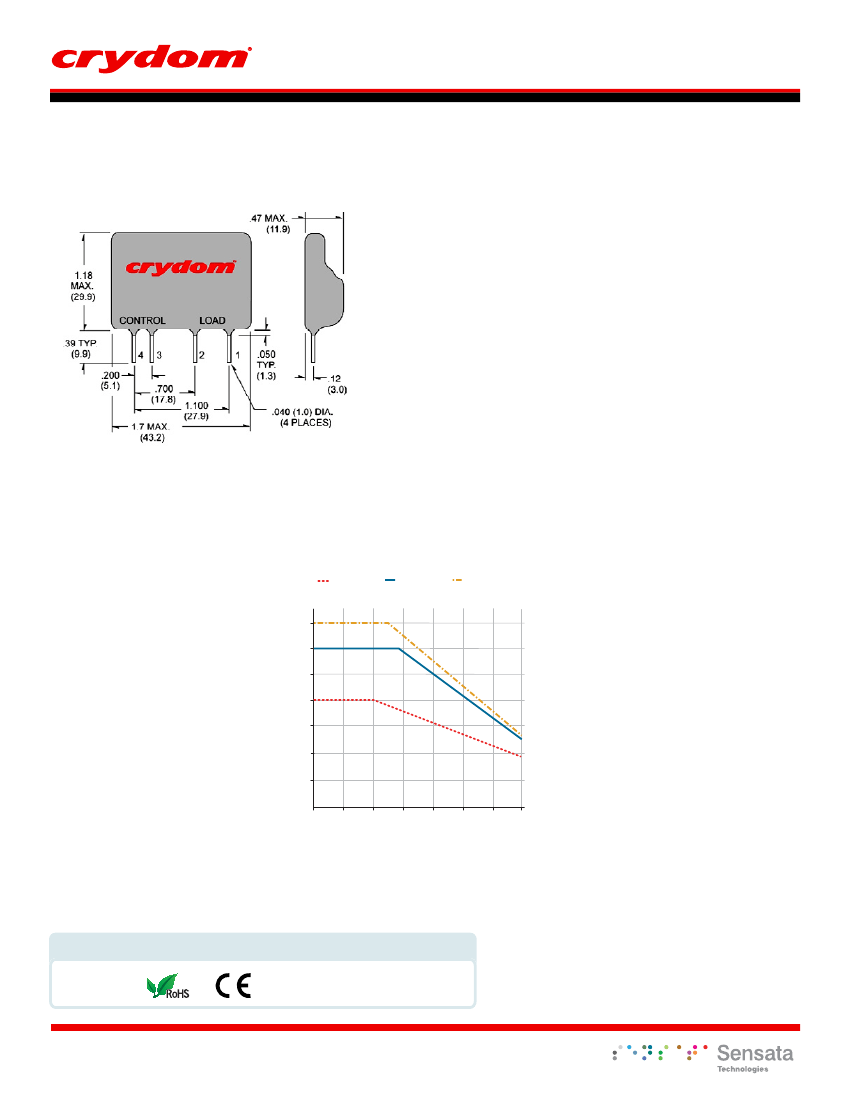

GENERAL NOTES

(1)

All parameters at 25°C unless otherwise speciﬁed.

(2)

Dielectric and insulation resistance are measured between input and output

(3)

Off-State dv/dt test method per EIA/NARM standard RS

Do not forget to visit us at:

www.crydom.com

D2W202F Related Products

	D2W202F
Description	Solid State Relays - PCB Mount PCB SIP SSR 280VAC 2A, 3-32VDC,ZC
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC, SIP-4
Reach Compliance Code	compliant
Other features	WITH ZERO CROSS OVER CIRCUIT, UL RECOGNIZED
control current	0.003 A
control voltage	3 V
input type	DC
Maximum insulation voltage	4000 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	2 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Output circuit type	Triac
total height	30 mm
total length	43 mm
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
