Series MR
Toggles
Half-Inch Diameter Process Sealed Rotaries
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
For MRA:
For MRF or MRK:
250mA @ 125V AC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Pushbuttons
Programmable Illuminated PB
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Range of Operating Torque:
Contact Timing:
Indexing:
Keylocks
10 milliohms maximum for MRA; 50 milliohms maximum for MRF & MRK
100 megohms minimum @ 500V DC
1,000V AC minimum for 1 minute minimum for MRA
500V AC minimum for 1 minute minimum for MRF & MRK
30,000 operations minimum
10,000 operations minimum
0.02 ~ 0.07Nm for MRA; 0.005 ~ 0.02Nm for MRF & MRK
Nonshorting (break-before-make)
MRA – self-cleaning, sliding contact; MRF & MRK – self-cleaning, rotary contactor disk
30°
Materials & Finishes
G
Slides
Shaft:
Stopper Plate:
Bushing/Housing:
Movable Contacts:
End Contacts & Terminals:
Common Contacts & Terminals:
Base:
Brass with nickel plating
Steel with zinc plating for MRA & MRK; polyamide cover with stopper for MRF
Zinc alloy with zinc plating
Copper with silver plating for MRA; phosphor bronze with gold plating for MRF & MRK
Brass with silver plating for MRA; phosphor bronze with gold plating for MRF & MRK
Brass with silver plating for MRA; phosphor bronze with gold plating for MRF & MRK
Diallyl phthalate for MRA; fiberglass reinforced polyamide for MRF & MRK
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Sealing:
Tilt
–10°C through +70°C (+14°F through +158°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 3 right angled directions, with 3 shocks in each direction)
MRK model meets IP67 of IEC60529 standards
Installation
Touch
Mounting Torque:
Cap Installation Force:
.686Nm (6.08 lb
•
in)
19.6 ~ 29.4N (4.41 ~ 6.61 lbf) for MRA & MRK
Processing
Indicators
Soldering Time & Temperature:
Cleaning:
Accessories
Wave Soldering for MRA: See Profile A in Supplement section.
Wave Soldering for MRF & MRK: See Profile B in Supplement section.
Manual Soldering for MRA: See Profile A in Supplement section.
Manual Soldering for MRF & MRK: See Profile B in Supplement section.
Automated cleaning recommended. Stopper plate, as well as washers for MRA & MRK, must be in
place to maintain automated cleaning. See Cleaning specifications in Supplement section.
Standards & Certifications
Supplement
MRA, MRF, & MRK models have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
G16
www.nkkswitches.com
Half-Inch Diameter Process Sealed Rotaries
Series MR
Toggles

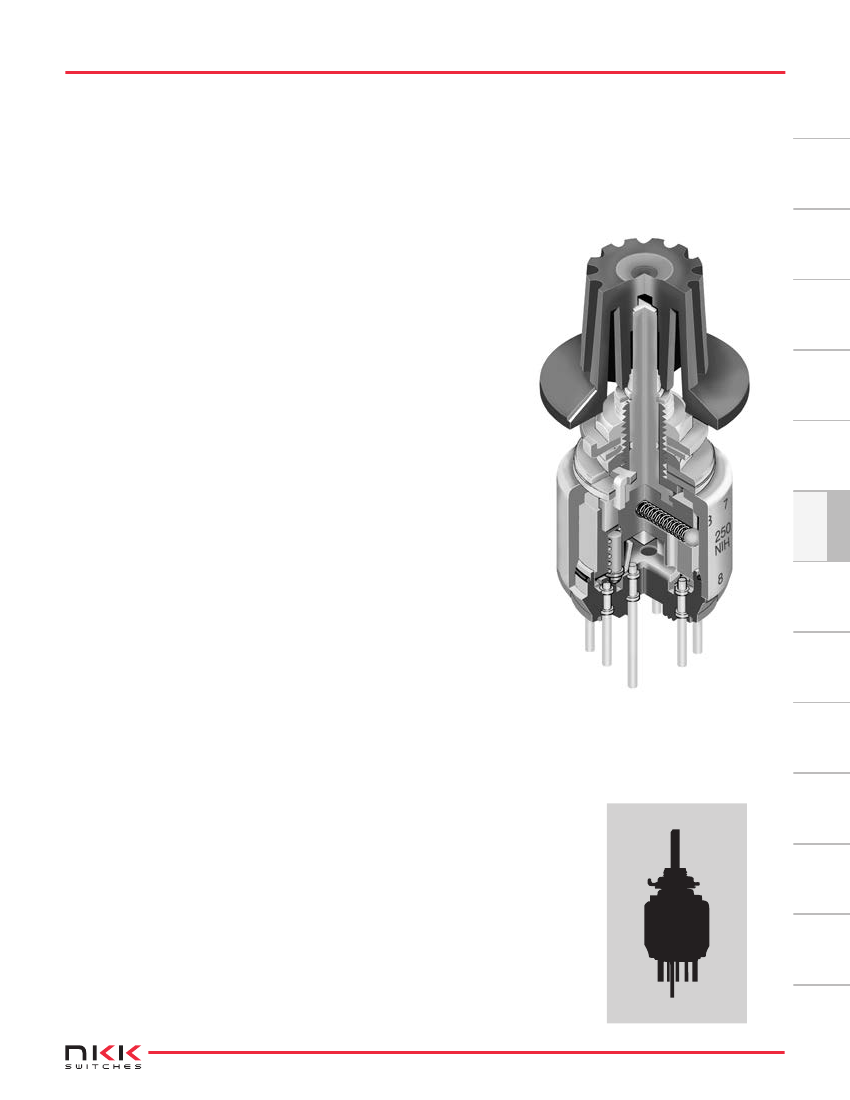

Positive detent mechanism for distinct feel and audible feedback.
Metal bushing and housing construction increases durability.
Adjustable stopper plate allows 2–12 position settings.
High contact reliability achieved by the self-cleaning
contact mechanism.
G
Break-before-make contact timing with sliding contacts
in MRA and rotary contactor disk in MRF and MRK
models.
Interior housing seal and molded-in PC terminals, plus shaft
rubber o-ring on MRA and MRK and polyamide cover on MRF
model, allow cleaning after automated soldering.
MRK model meets IP67 of IEC60529 specifications (similar to NEMA 4 & 13).
Actual Size
www.nkkswitches.com
G17
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Low profile body of MRF model accommodates space limitations
required for PCB mounting. For the MRA and MRK bushing
mount models, the range of behind panel body depths is .323”
to .669” (8.2mm to 17.0mm).
Rockers
Distinctive
Characteristics
Series MR
Toggles
Half-Inch Diameter Process Sealed Rotaries

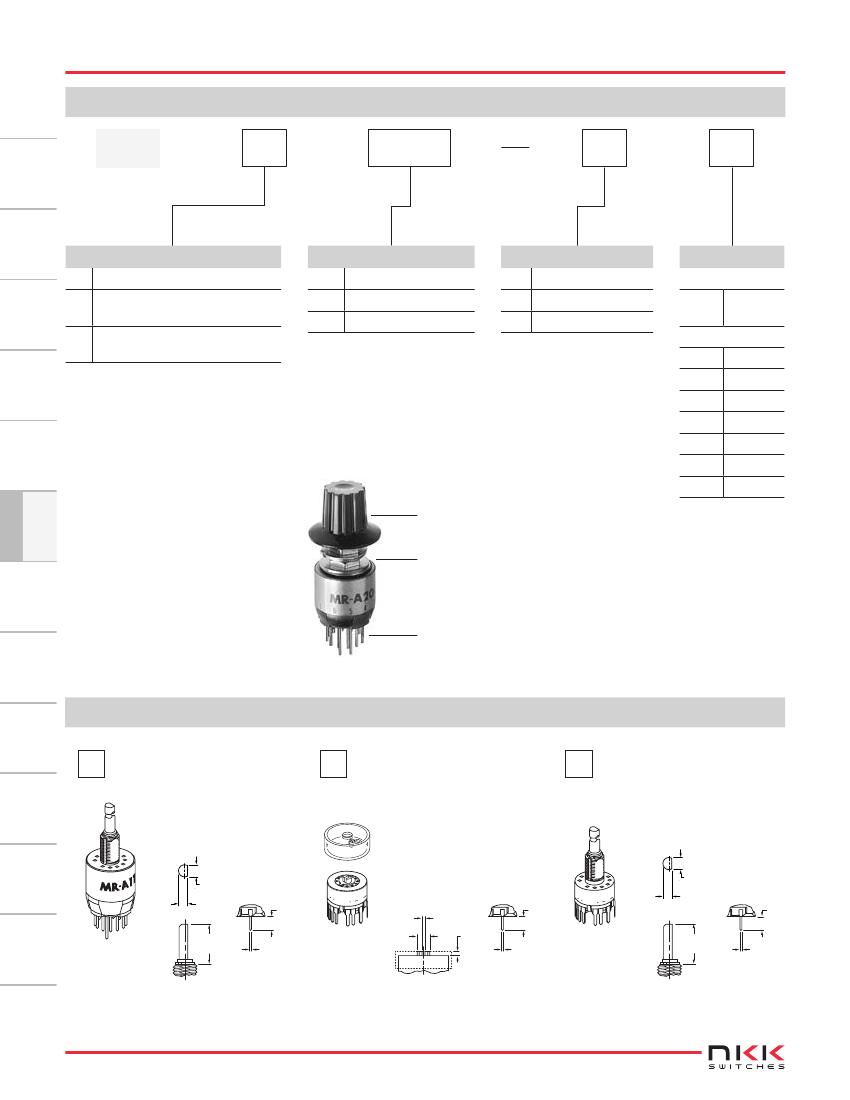

TYPICAL SWITCH ORDERING EXAMPLE
Pushbuttons
Rockers
MR
Actuators & Terminals
A
F
K
A
206
Poles & Circuits
112
206
403
SP with 2-12 Positions
DP with 2-6 Positions
4P with 2-3 Positions
A
B
C
A
Knobs
Plain Black
Small Color Tipped
Large Color Tipped
Colors
For Plain Knob
No
Code
A
B
C
Black
Programmable Illuminated PB
Shaft Actuated with PC Terminals
Low Profile Screwdriver Actuated
with PC Terminals
Low Profile Shaft Actuated with
PC Terminals
For Color Tipped
Black
White
Red
Yellow
Green
Blue
Gray
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
E
F
G
H
Keylocks
MRA206-A
Rotaries
G
Shaft Actuated with
Plain Black Knob
DP with 2-6
Adjustable Positions
Slides
PC Terminals
Tactiles
ACTUATORS & TERMINALS
Tilt
A
Touch
Shaft Actuated
with PC Terminals
F
Low Profile
Screwdriver Actuated
with PC Terminals
K
Low Profile
Shaft Actuated
with PC Terminals
Indicators
12
9
11
10
2
1
12
11
10
2
(3.5)
.138
1C
12
11
1 0
Accessories
(10.0)
.394
(0.5)
.020
Thk = (0.25)
.010
Supplement
Shaft
Terminal
G18
www.nkkswitches.com
10
11
12
(3.1)
.122
(2.28)
.090
2
3
6
4
5
M
R
-
12
2
(0.8)
.031
(3.15) Dia
.124
(1.0)
.039
(0.5)
.020
Thk = (0.25)
.010
(3.5)
.138
1 C
M
R
-
K
1
1
2
9
0
12
11
1
11
10
9
(3.1)
.122
(2.28)
.090
7
89
1
(3.5)
.138
(10.0)
.394
(0.5)
.020
Thk = (0.25)
.010
Slotted for
Screwdriver
Terminal
Shaft
Terminal
Half-Inch Diameter Process Sealed Rotaries
POLES & CIRCUITS
Pole
Model
MRA112
SP
MRF112
MRK112
MRA206
DP
MRF206
MRK206
MRA403
4P
MRF403
MRK403
Number of Positions
2–12
2–12
2–12
2–6
2–6
2–6
2–3
2–3
2–3
Stopper Settings
2, 3, 4, . . . 12
2, 3, 4, . . . 12
2, 3, 4, . . . 12
2, 3, 4, 5, 6
2, 3, 4, 5, 6
2, 3, 4, 5, 6
2, 3
2, 3
2, 3
Number of Terminals
1 COM, 12 LOAD
1 COM, 12 LOAD
1 COM, 12 LOAD
2 COM, 12 LOAD
2 COM, 12 LOAD
2 COM, 12 LOAD
4 COM, 12 LOAD
4 COM, 12 LOAD
4 COM, 12 LOAD
1
1
1
Series MR
Schematics
A
2 3 4 5 6
A
7 8 9 10 11 12
2 3 4 5 6
A
B
1
2 3 4 5
C
D
6
2 3 1
2 3
1
2 3 1
2
3

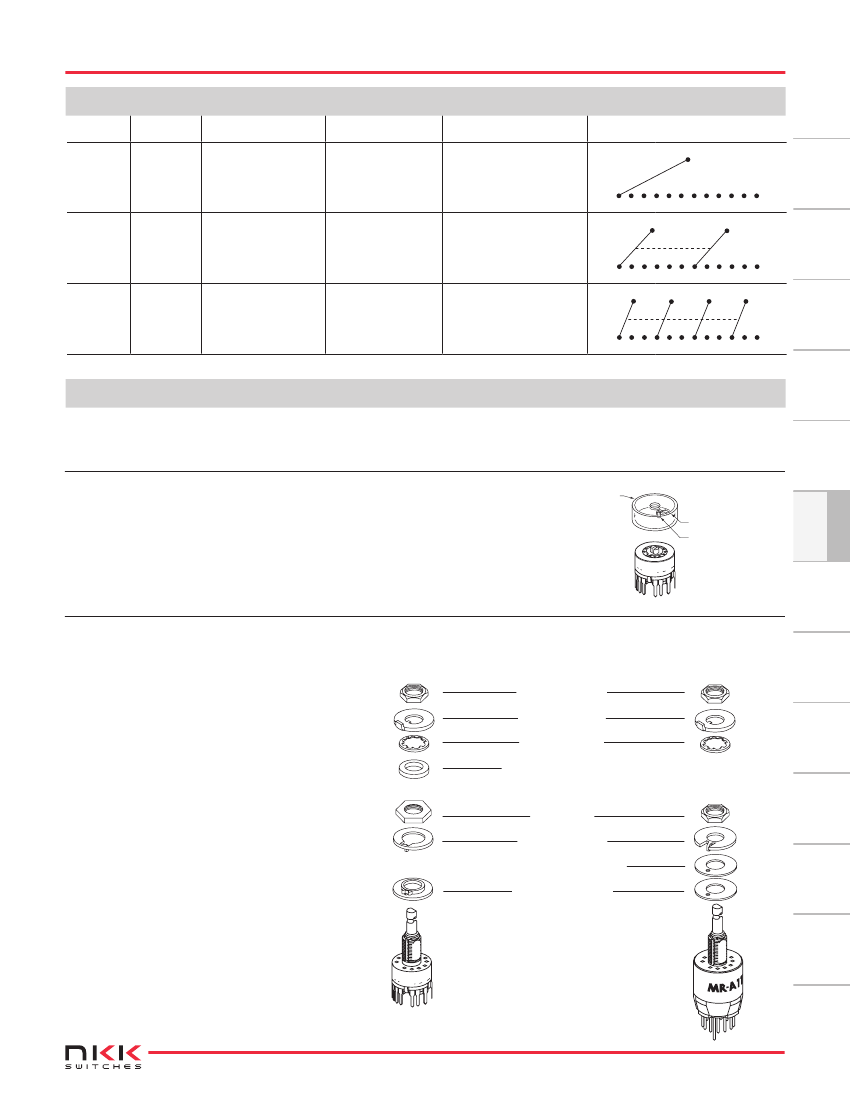

POSITION SETTING FOR MRA, MRF, & MRK MODELS
Each switch is supplied with the stopper set for the maximum number of positions allowed for that model. Prior to installation,
the desired position setting should be made. Contact factory for continuous rotation.
MRF Models
1. Remove the protective cover from the switch body.
2. Turn the shaft counterclockwise to the extreme left by using a screwdriver.
3. Inside the cover is a magnifying lens which would be positioned over the
number which is to be the maximum position used; when the cover is then
snapped into the switch, the projection beside the lens fits into the correct
hole for setting the stop.
Protective Cover
Lens
4
5
6
12
Projection
7
G
2
3
1
2
1C
12
11
1 0
M
R
-
MRK & MRA Models
1. Using the actuator knob, turn the shaft
counterclockwise to the extreme left. If
the shaft is not turned counterclockwise
to the extreme left, proper setting can-
not be achieved. At this extreme posi-
tion, the white line on the knob points
to the number 1 position shown on the
side of the switch.
2. Remove the knob from the shaft and
loosen the nut far enough to allow rais-
ing the stopper plate, plus washer(s),
for resetting to the desired position.
3. Note the position numbers on the side
of the switch; these correspond to the
terminal numbers and stopper holes.
Insert the stopper in the hole numbered
for the maximum desired number of
stop settings. Satisfactory switch func-
tioning cannot be assured if the stopper
plate is not properly positioned.
4. Tighten the nut (beveled side up) firmly
against the stopper plate.
Hex Face Nut
Locking Ring
Lockwasher
Rubber Ring (MRK)
Touch
12
Factory Assembled:
Hex Nut
Stopper Plate
Metal Washer (MRA)
Rubber Washer
12
2
1 C
M
R
-
K
1
1
2
9
0
12
11
1
11
10
9
9
11
10
1
12
11
www.nkkswitches.com
G19
Supplement
2
10
Accessories
Indicators
Tilt
Tactiles
Standard Mounting Hardware
Packaged Loose with Each Switch:
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
B
Rockers
89
10
11
Toggles
Series MR
Toggles
Half-Inch Diameter Process Sealed Rotaries

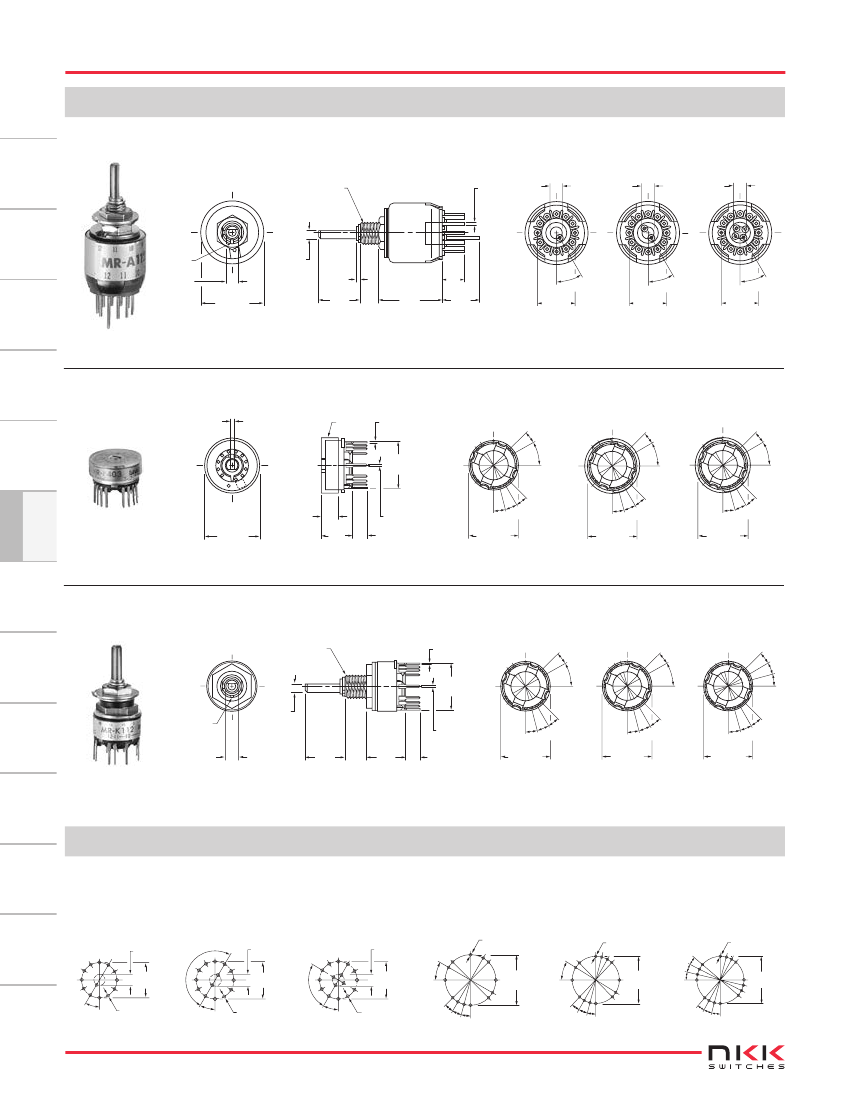

TYPICAL SWITCH DIMENSIONS
MRA • PC Terminals
Rockers
(0.8) Dia Typ
.031
1 Pole
(3.0) Dia
.118
2 Pole
(3.0) Dia
.118
4 Pole
(3.0) Dia
.118
M6 P0.75
Pushbuttons
B
5
B
5
4
4
D
C
12
A
1
2
6
A
1
2
3
A
3
3
1
2
Keyway
(3.1)
.122
(16.0) Dia
.630
(2.28)
.090
(1.0)
.039
(10.0)
.394
(5.0)
.197
(17.0)
.669
(6.0)
.236
(10.0)
.394
3
1
2
Programmable Illuminated PB
p
30°
Ty
(9.5) Dia
.374
p
30°
Ty
(9.5) Dia
.374
30°
Ty
(9.5) Dia
.374
MRA112
MRF • PC Terminals
(0.8)
.031
6
7
8
1 Pole
Cover
(0.25) Typ
.010
2 Pole
4 Pole
Keylocks
3
4
5
9
8
7
6
5
21
5
(12.0) Dia
.472
3
21
B
6
3
21
B
3
1
10
4
3
21
D
6
Rotaries
G
MRF403
(4.2)
.165
(14.0) Dia
.551
(8.2)
.323
(0.5) Typ
.020
(3.5)
.138
yp
15°
T
(12.6) Dia
.496
yp
15°
T
(12.6) Dia
.496
y
15°
T
(12.6) Dia
.496
Slides
MRK • PC Terminals
M6 P0.75
(0.25) Typ
.010
9
1 Pole
2 Pole
4 Pole
Tactiles
8
7
3
6
5
B
2
1
3
D
2
1
B
2
1
3
65
21
(12.0) Dia
.472
(2.28)
.090
(0.5) Typ
.020
(10.0)
.394
(5.5)
.217
(10.1)
.398
(3.5)
.138
1
10
4
3
Keyway
Tilt
yp
15°
T
(12.6) Dia
.496
yp
15°
T
(12.6) Dia
.496
yp
15°
T
(12.6) Dia
.496
(3.1)
.122
Touch
MRK112
MRK devices are designed to be panel mounted. Installation without panel mounting will affect reliability.
FOOTPRINTS
Indicators
Single Pole
MRA112
Double Pole
MRA206
Four Pole
MRA403
Single Pole
MRF112
MRK112
(0.8) Dia Typ
.031
30°
Typ
8
Double Pole
MRF206
MRK206
(0.8) Dia Typ
.031
p
2
Four Pole
MRF403
MRK403
(0.8) Dia Typ
.031
1
2
3
D
1
2
3
3
2 1 A
Accessories
180°
5
4
A
3
2
1
9
10
11
12
(9.5) Dia
.374
5
4
3
2
A
1
3
B
4
5
6
(9.5) Dia
.374
2
1
3
3
C
A
2
1
B
D
3
1
2
5
4
3
(9.5) Dia
.374
10
11
12
2 1 A
(12.0) Dia
.472
5
4
4
6
2 1 A
5
15°
Ty
6
6
30°
Typ
7
8
(3.0) Typ
.118
1
2
(3.0) Typ
.118
3
1
2
(3.0) Typ
.118
7
6
B
1
B
2
1
C
3
9
6
3
(12.0) Dia
.472
Supplement
30
°
Typ
(1.0) Dia Typ
.039
30
°
Typ
(1.0) Dia Typ
.039
30°
Typ
(1.0) Dia Typ
.039
3
15
°
Ty
p
15
°
Typ
15°
Typ
G20
www.nkkswitches.com
3
1
32
2
3
1
A
A
2
1
6
1
2
3
A
2
1
21
A
6
7
8
9
3
10
11
1
4
5
2
p
°
15
°
15
°
15
30°
30°
30°
A
2
1
1
A
2
1
1
9
10
11
21
5
C
4
4
3
3
3
12
1
2
p
15°
°
15
°
15
30°
6
5
Typ
30°
C
2
1
4
4
3
(12.0) Dia
.472
90°
京公网安备 11010802033920号
EEWORLD
