CII Mid-Range Relays
FCA-410 Series, 10 Amperes, 4PDT

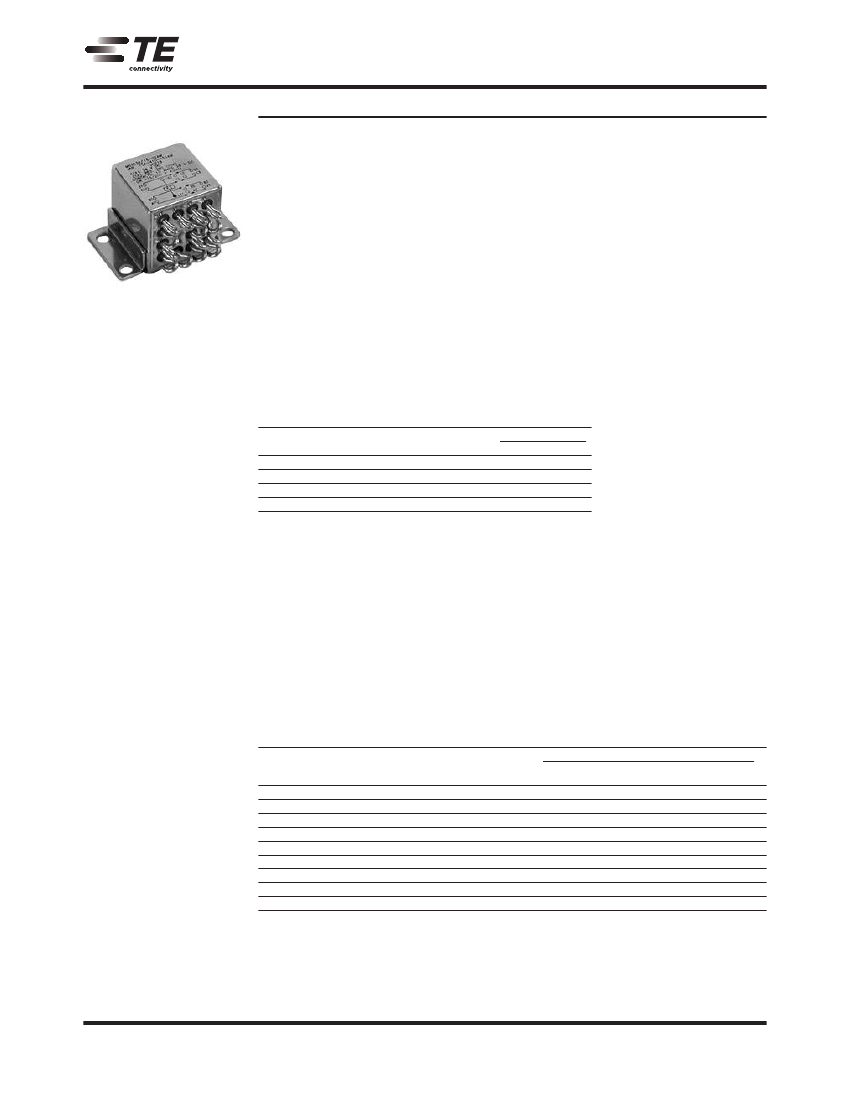

The Series FCA-410 relay
is a polarized single-side
stable design, where the
flux from a permanent
magnet provides the
armature holding force in
the deactivated state, and
its flux path is switched and
combined with the coil flux
in the operated state.
This results in appreciably
increased contact pressure
in both states over that of a
spring return nonpolar
design. We also
manufacture 2-pole and
6-pole versions of this relay.
FCA-210
— 10 Amp DPDT
Relay
FCA-610
— 10 Amp 6PDT
Relay
Available
FCA-415
— 15 Amp 4PDT,
Has the same specifications
as the FCA-410 except is
rated at 15 amps.
(Commercial Only)
General Specifications
Temperature Rating
—
-70˚C TO + 125˚C
Altitude
— 300,000 Feet
Shock*
—
Z & Y Enclosures —
200 g for 6 mS
W, X & M Enclosures —
100 g for 6 mS
Vibration, Sinusoidal*
—
Z & Y Enclosures —
0.12 DA 10 to 70Hz
30 g 70 to 3000Hz
W, X & M Enclosures —
0.12 DA 10 to 57Hz
20 g 57 to 3000Hz
Vibration, Random*
—
Z & Y Enclosures —
0.4 g
2
/Hz 50-2000Hz
W, X & M Enclosures —
0.2 g
2
/Hz 50-2000Hz
Dielectric Strength
—
At Sea Level —
All circuits to ground and circuit to
circuit — 1250 V rms
Coil to ground — 1000 V rms
At 80,000 Feet — 350 V rms
Insulation Resistance
—
Initial (500 VDC) — 100 MΩ Min.
After Life or Environmental Tests —
50 MΩ Min.
Operate Time at Nominal
Voltage
—
DC Relays — 15 ms or less
AC Relays — 20 ms or less
Release Time at Nominal
Voltage
—
DC Relays — 15 ms or less
AC Relays — 50 ms or less
* Max. contact opening under vibration
or shock 10 microseconds
Product Facts
n
n
n
n
n
n
n
n
n
Hermetically Sealed
All Welded Construction
Balanced Force
Permanent Magnet Drive
4PDT switching in one inch
cube
Contacts — Silver Cadmium
Oxide with Gold Plating
Coils for DC and AC
50 to 400Hz or 400Hz
Weight 2.72 ounces max.
(77 grams max.)
Qualified to M83536/15, /16
Contact Rating — Amperes
Ratings Are Continuous Duty
Type of
Load
Resistive
Inductive
Motor
Lamp
Life (Min.)
Cycles x 10
3
100
20
100
100
28 VDC
10
8
4
2
120VAC
400Hz
10
8
4
2
120/200VAC
400Hz-3Ø 60Hz-3Ø*
10
2.5
8
2.5
4
2.0
2
1.0
*60 Hz loads rated for 10,000 operations
Overload Current
— 40 AMPS DC, 60 AMPS 400Hz
Rupture Current
— 50 AMPS DC, 80 AMPS 400Hz
Contact Make Bounce
—1 MILLISECOND AT NOMINAL VOLTAGE
Max. Contact Drop at 10 Amps
— INITIAL 0.100 VOLTS
End of Life
— 0.125 VOLTS
Coil Data
Coil
Code
1
2
3
4 (A)
5
6
7
8
9
A.
B.
C.
D.
E.
Nominal
Voltages
6
12
28
28
48
28
28
115
115
Freq.
Hz
DC
DC
DC
DC
DC
400Hz
50/400Hz
400 Hz
50/400 Hz
DC Res.
AC Amps (B)
18
Ω
70
Ω
290
Ω
290
Ω
865
Ω
225 mA
120 mA
40 mA
30 mA
Over Temperature Range
Pickup or
Dropout or
Must Hold
Below Volts
Above Volts
Voltage (C)
4.5
0.3
2.5
9.0
0.75
4.5
18.0
1.5
7.0
18.0
1.5
7.0
32.0
2.5
14.0
22.0
1.25
10.0
22.0
1.25
10.0
90.0
5.0
40.0
95.0
5.0
40.0
CODE 4 COILS HAVE BACK EMF SUPPRESSION TO 42 VOLTS MAX.
DC COIL RESISTANCE ± 10% AT 25˚C; AC COIL MAX. CURRENT AT NOMINAL VOLTAGE.
RELAY WILL STAY IN PICKED-UP STATE DOWN TO MUST HOLD VOLTAGES SHOWN.
MAX. OVER-VOLTAGE: 6 & 12 VDC COILS 120% OF NOMINAL; ALL OTHERS 110% OF NOMINAL.
COILS AVAILABLE FOR OTHER VOLTAGES AND FOR AC 50/60HZ.
NOTE:
Only DC Coil Models are QPL Approved.
5–18
Catalog 5-1773450-5
Revised 3-13
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
unless otherwise specified.
USA: +1 800 522 6752
Asia Pacific: +86 0 400 820 6015
UK: +44 800 267 666
For additional support numbers
please visit www.te.com
CII Mid-Range Relays
FCA-410 Series, 10 Amperes, 4PDT
(Continued)

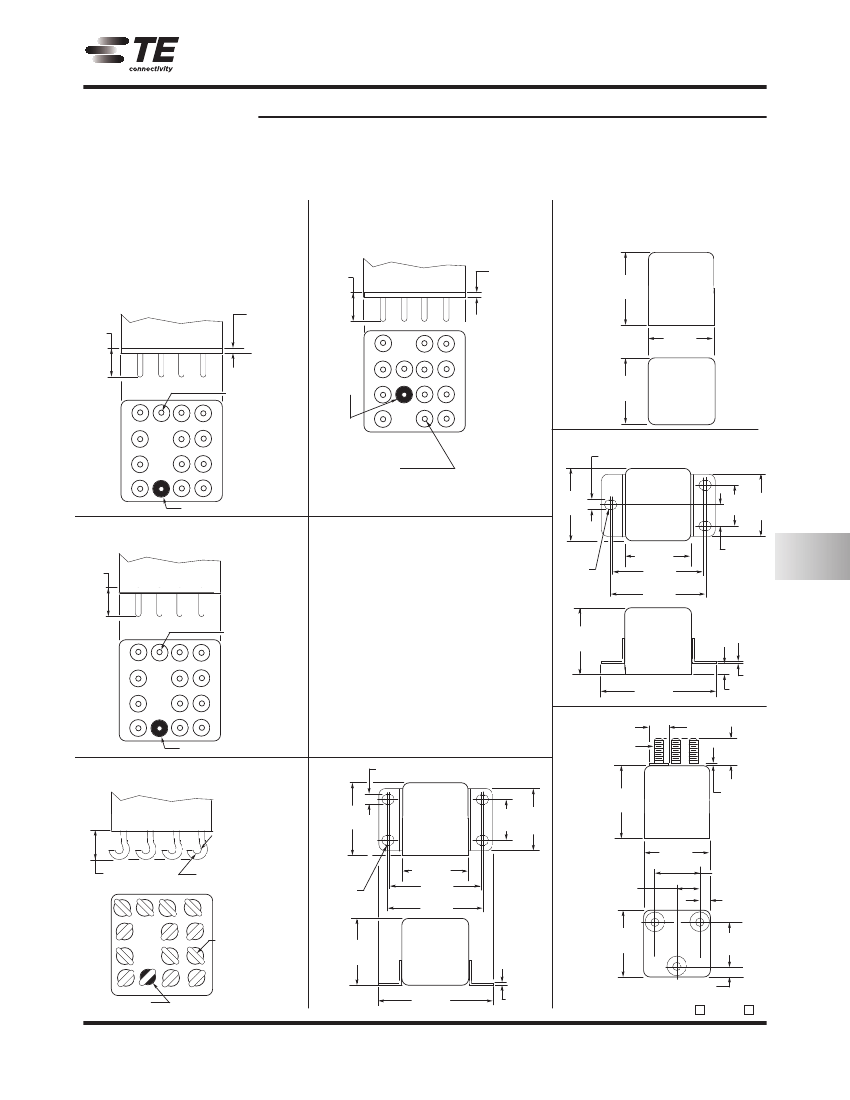

Below are shown the standard terminal types and the enclosures available. Note that the pin configuration for coil
connections is determined by the coil supply voltage. Specify the assembly as indicated under How To Order.
Dimensions are shown in inches ± .010 and (Millimeters ± .25) except as noted.
Terminals
Terminals on 0.200 centers.
Coil terminals: X1-X2.
Socket Pins are Gold Plated.
Circuit Board Pins are Tin/Lead Plated.
Enclosures
CODE “D”
Socket Pins-115 VAC Coils
.270
(6.86)
.050 ± .005
(1.27 ± (3)
Silicone
Rubber
Gasket
All Enclosures have cupro-Nickel
cans bright acid tin/lead plated after
assembly to terminal headers.
CODE “A”
Socket Pins-All DC Coils
.270
(6.86)
.050 ± .005
(1.27 ± (3)
Silicone
Rubber
Gasket
CODE
“Z”
.100
(25.4)
1.051
(25.79)
-X2
BLUE BEAD
.062 ±.001 Pin
(1.57 ± .02 )
14 places
-X2
1.051
(25.79)
+X1
+X1
.062 ±.001 Pin
(1.57 ± .02 )
14 places
CODE
.150
“Y”
(3.8) typ.
1.015
(25.79)
.625 .937
15.88 23.80
.312
7.92
BLUE BEAD
CODE “B”
Circuit Board Pins-All DC Coils
.270
(6.86)
FULL R
6 PLCS
SEE NEXT PAGE
.062
- .001
Dia. Pin
(1.57
+ .05
) 14 Plcs.
- .02
-X2
+ .002
1.015
(25.79)
1.396
(35.46)
1.446
(36.73)
5
CII Mid-Range Relays
FOR MORE COIL
TERMINAL OPTIONS
1.00
(25.4)
.040
(1.02)
.156
(3.96)
1.718 Max.
(43.64)
+X1
CODE
"W"
BLUE BEAD
CODE “C”
Solder Hooks-AC or DC Coils
CODE
“X”
1.00
(25.4)
.150 Typ.
(3.8)
.312
(7.92)
6-32 UNC-2A
3 Studs *
.375
(9.52)
1.00
(25.4)
.625 .937
15.88 23.80
1.015
(25.78)
.343
(8.71)
.031
(.787)
.300 ± .020
(7.26) ± .51
0.80 DIA
(2.03)
FULL R
6 PLCS
+ .002
1.015
(25.79)
1.396
(35.46)
1.446
(36.73)
.687
(17.44)
.160
(4.06)
.687
(17.44)
.160
(4.06)
-X2
.062
- .001
Dia. Pin
(1.57
+ .05
)14 Plcs.
- .02
+X1
1.051
(25.79)
.040
(1.02)
1.051
(25.79)
BLUE BEAD
Catalog 5-1773450-5
Revised 3-13
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
1.718 Max.
(43.64)
Dimensions are in millimeters
unless otherwise specified.
*Metric threads available,To specify use M in place of W
5–19
USA: +1 800 522 6752
Asia Pacific: +86 0 400 820 6015
UK: +44 800 267 666
For additional support numbers
please visit www.te.com
CII Mid-Range Relays
FCA-410 Series, 10 Amperes, 4PDT
(Continued)

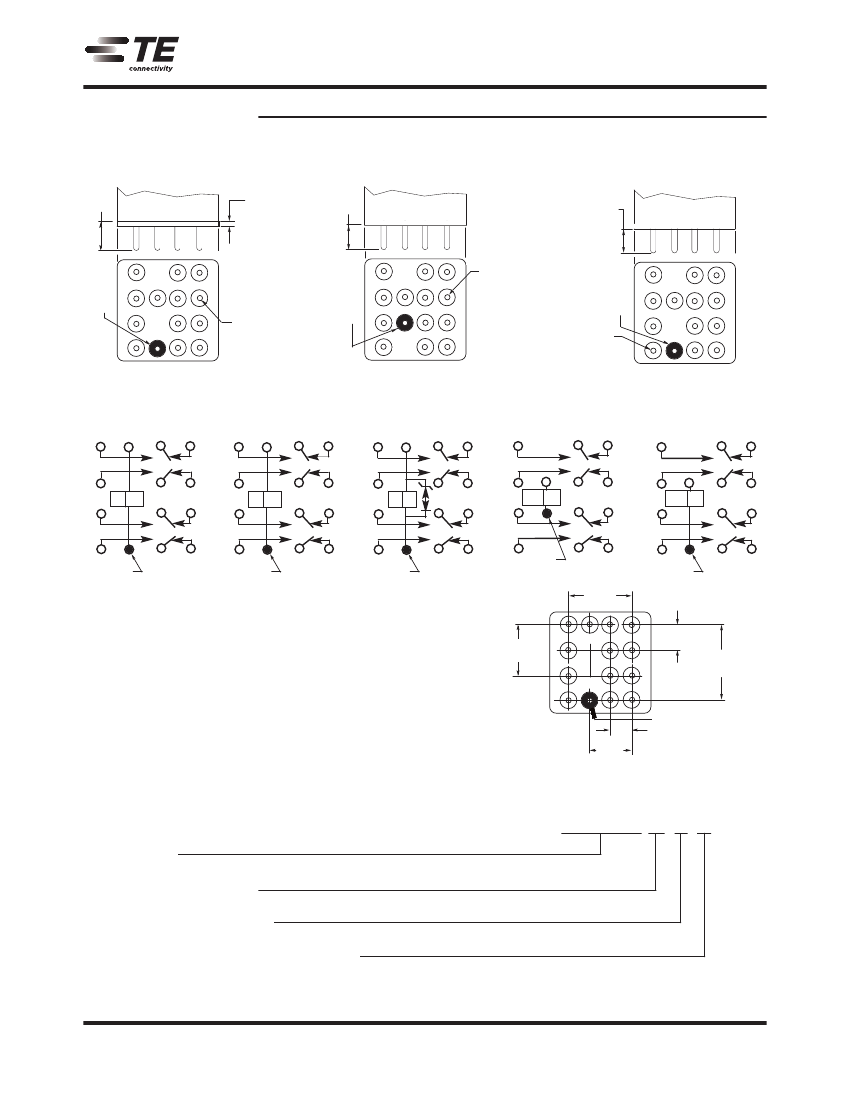

Terminals
(Continued)
CODE “E”
Socket Pins- 28 VAC Coils
.270
(6.86)
.050 ± .005
(1.27 ± (3)
Silicone
Rubber
Gasket
CODE “F”
Circuit Board Pins-115 VAC Coils
.270
(6.86)
CODE “G”
Circuit Board Pins- 28 VAC Coils
.270
(6.86)
Terminal Wiring
A & B Pin Terminal
All DC Coils
C Hook Terminal
All AC & DC Coils
Transient Suppression
Cir.
D & F Pin Terminal
115 VAC Coils
E & G Pin Terminal
28 VAC Coils
1
D
C
B
A X1 +
BLUE BEAD
NOTE:
Polarity must be observed with DC coil supply.
Relay is polarized with a permanent magnet and will not
operate or be damaged by reverse polarity.
Diodes used in transient suppression and in AC rectifier
circuits have peak inverse voltage rating of 600 VDC
minimum. Zener diodes have a minimum rating of 1 watt.
Terminal designations are for reference only and do not
appear on the header.
HOW TO ORDER
RELAY TYPE
TERMINALS
(Socket Pins)
ENCLOSURE
(With Flanges)
COIL
(28 VDC With Transient Suppression).
NOTE: Only DC coil models are QPL Approved
*
The part number example shown on this page is for catalog items. For a list of specific QPL part numbers, please see the index in Section 15.
BLUE BEAD
-X2
-X2
.062
- .001
Dia. Pin
(1.57
+ .05
) 14 Plcs.
- .02
+ .002
BLUE BEAD
BLUE BEAD
-X2
+X1
.062
- .001
Dia. Pin
(1.57
+ .05
) 14 Plcs.
- .02
+ .002
+X1
.062
- .001
Dia. Pin
+
(1.57
- .05
) 14 Plcs.
.02
+ .002
+X1
X2
-
2
3
D
C
B
1
X2
-
2
3
D
C
B
1
X2
-
2
3
D
C
1
X2
AC
X1
2
3
D
C
1
2
3
+
+
+
X2
AC
B
A
B
A
BLUE BEAD
.600
(15.24)
.200
(5.08)
.600
(15.24)
+X1
A X1 +
BLUE BEAD
A X1 +
BLUE BEAD
X1
BLUE BEAD
.400
(10.16)
-X2
.400
(10.16)
TERMINAL VIEW
BLUE BEAD
.200
(5.08)
FCA-415-
FCA-410 A Y 4
5–20
Catalog 5-1773450-5
Revised 3-13
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
unless otherwise specified.
USA: +1 800 522 6752
Asia Pacific: +86 0 400 820 6015
UK: +44 800 267 666
For additional support numbers
please visit www.te.com
