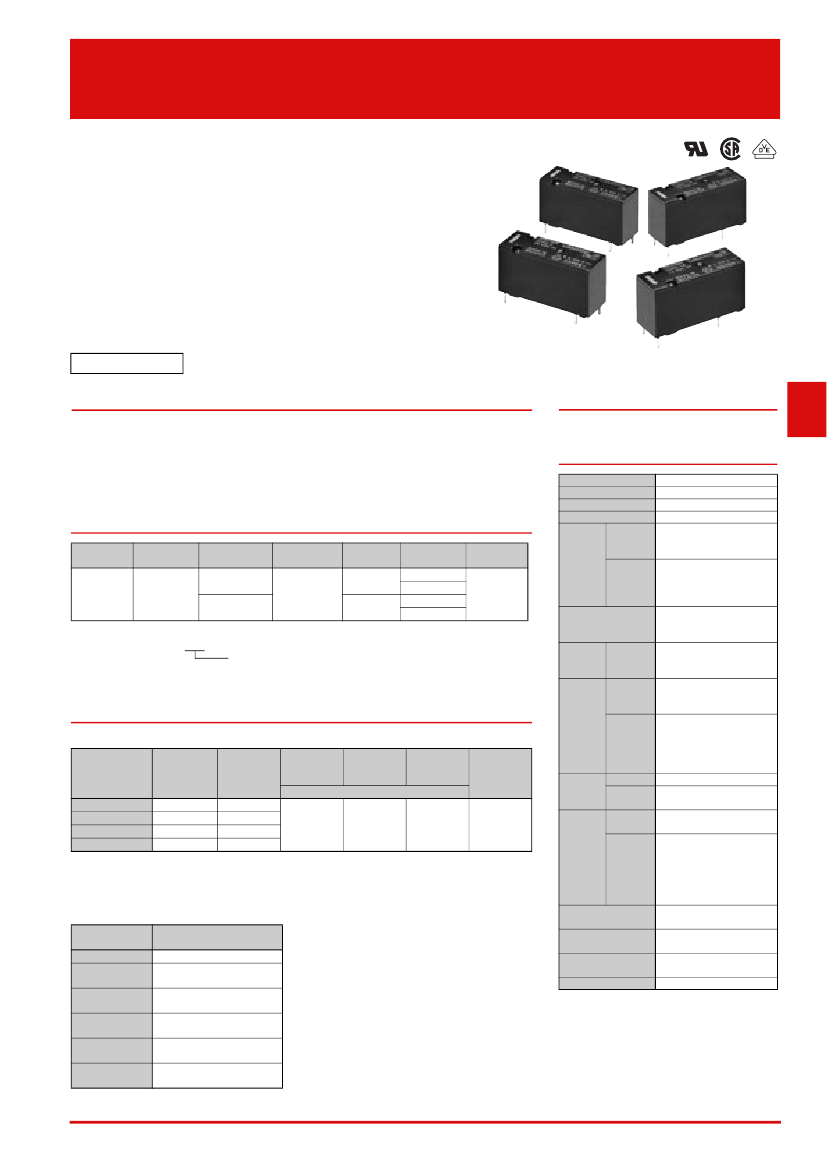

G6RN
PCB Power Relay
Miniature Power Relay for
Switching 8 A
• Low-profile height of 15 mm (approx. 60% the height of the Omron
G2R model).
• Capable of switching with 8 A at 250 VAC despite its small size.
• High sensitivity with 220mW power consumption.
• Offers high insulation with insulation distance of 8 mm and impulse
withstand voltage of 10kV between coil and contacts.
• Satisfies ambient operating temperature requirement of 85°C.
• Standard model conforms to VDE standards.
RoHS Compliant
■Model
Number Legend
G 6 R N -@
@
——
1 2
1. Number of Poles
1: 1-pole
2. Contact Form
None: SPDT (1c)
A: SPST-NO (1a)
■Application
Examples
• Control equipments
■Characteristics
Contact resistance *1
Operate time
Release time
Insulation resistance *2
Between
coil and
contacts
Dielectric
Between
strength
contacts of
the same
polarity
Impulse withstand
voltage (between coil
and contacts)
Between
Insulation
coil and
distance
contacts
Destruction
100 mΩ max.
15 ms max.
5 ms max.
1,000 MΩ min.
4,000 VAC, 50/60 Hz for 1 min
G
6
R
N
■Ordering
Information
Classification
Enclosure
rating
Fully sealed
SPDT (1c)
Contact form
SPST-NO (1a)
Standard
Terminal shape
PCB
terminals
Model
G6RN-1A
G6RN-1
Rated coil
voltage
5, 6, 12 VDC
24 VDC
5, 6, 12 VDC
24 VDC
Minimun
packing unit
20 pcs/tube
1,000 VAC, 50/60 Hz for 1 min
Note. When ordering, add the rated coil voltage to the model number.
Example: G6RN-1A DC5
Rated coil voltage
However, the notation of the coil voltage on the product case will be marked as
@@VDC.
10,000 V (1.2 x 50
μs)
Clearance: 8 mm,
Creepage: 8 mm
■Ratings
●Coil
Item
Rated
current
(mA)
43.9
36.6
18.3
9.2
Coil
resistance
(Ω)
114
164
655
2,620
Must operate Must release
Max.
voltage
voltage
voltage
(V)
(V)
(V)
% of rated voltage
70% max.
10% min.
150%
(at 23°C)
Power
consumption
(mW)
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Approx. 220
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
*2.
The operating characteristics are measured at a coil temperature of 23°C.
*3.
The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
●Contacts
Load
Resistive load
Item
Contact type
Single
Ag-Alloy + gold plating
Contact material
(Cd free)
8 A at 250 VAC
Rated load
5 A at 30 VDC
Rated carry
8A
current
Max. switching
250 VAC, 30 VDC
voltage
Max. switching
8A
current
10 to 55 to 10 Hz, 0.75 mm
single amplitude
(1.5 mm double amplitude)
Vibration
10 to 55 to 10 Hz
resistance
NO: 0.75 mm single amplitude
Malfunction (1.5 mm double amplitude)
NC: 0.4 mm single amplitude
(0.8 mm double amplitude)
Destruction 1,000 m/s
2
Shock
NO: 100 m/s
2
resistance Malfunction
NC:: 50 m/s
2
10,000,000 operations min.
Mechanical
(at 36,000 operations/hr)
50,000 operations min.
(8 A at 250 VAC, resistive load)
Durability
50,000 operations min.
Electrical *3
(5 A at 30 VDC, resistive load)
(at 360 operations/hr under
rated load)
Failure rate (P level)
10 mA at 5 VDC
(reference value) *4
Ambient operating
-40°C to 85°C (with no icing or
temperature
condensation)
Ambient operating
5% to 85%
humidity
Weight
Approx. 9 g
Note. The data given above are initial values.
*1.
Measurement conditions: 5 VDC, 1 A, voltage drop
method.
*2.
Measurement conditions: The insulation resistance
was measured with a 500 VDC megohmmeter at the
same locations as the dielectric strength was
measured.
*3.
Test conditions: With diode
*4.
This value was measured at a switching frequency of
120 operations/min.
1
G6RN

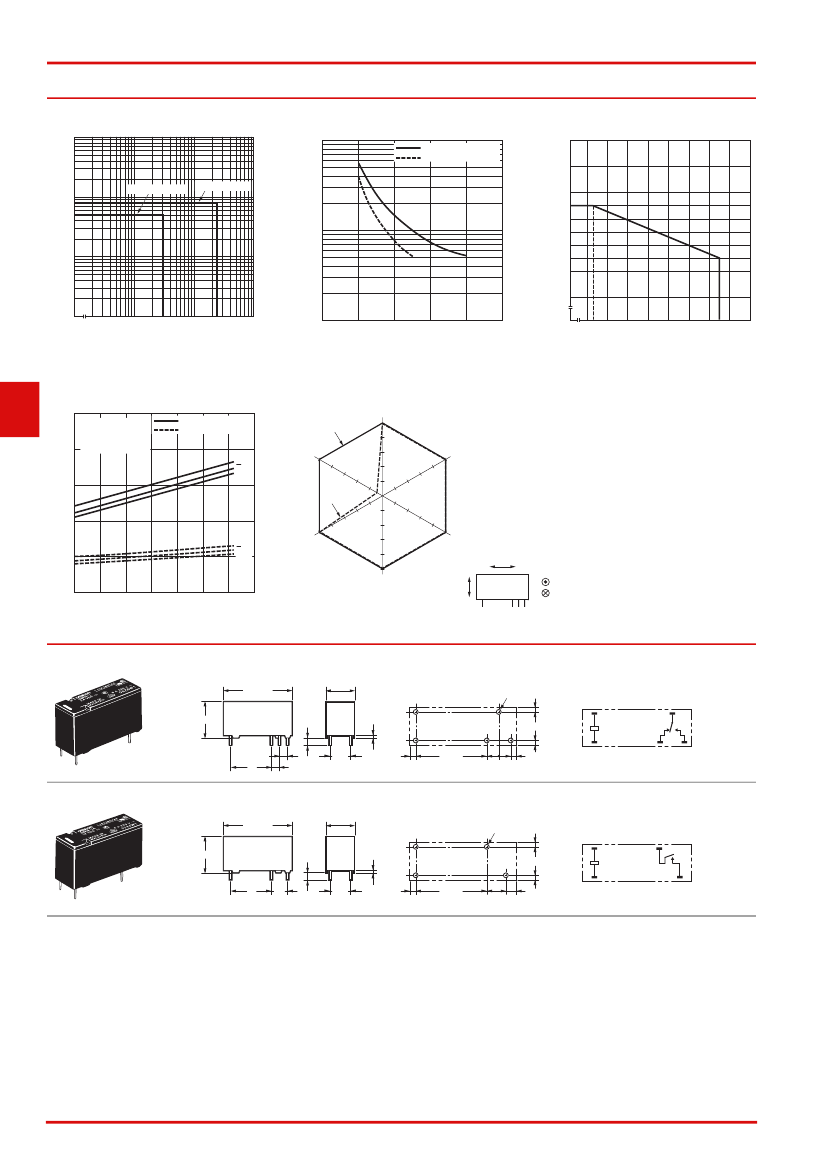

■Engineering
Data
●Maximum
Switching Capacity
Switching current (A)
PCB Power Relay
●Durability
Durability (x 10
4
operations)
100
50
30
250 VAC resistive load
30 VDC resistive load
●Ambient
Temperature vs.
Maximum Coil Voltage
Maximum coil voltage (%)
200
180
50
30
DC resistive load
10
8
5
3
AC resistive load
160
150
140
130
120
10
1
0.5
0.3
5
3
110
100
80
0.1
0
3
5
10
30 50 100
250 500
Switching Voltage (V)
1
0
2
4
6
8
10
Switching Current (A)
0
-40 20 23 30
40
50
60
70
80
90 100
Ambient Temperature (°C)
●Ambient
Temperature vs.
Maximum Coil Voltage
Operate/Release voltage (percentage of rated value) (%)
100
Sample:
G6RN-1 12 VDC
Number of Relays:
5 pcs
Must operate voltage
Must release voltage
●Shock
Malfunction
G6RN-1
Y
contact A
1,000
Note. The maximum coil voltage refers to the
maximum value in a varying range of operating
power voltage, not a continuous voltage.
G
6
R
N
80
max.
X
min.
60
X
1,000
Z
1,000
contact B
40
max.
X
min.
1,000
Z'
88.2
Sample: G6RN-1 24 VDC
Number of Relays: 5 pcs
Test conditions: The value at which
malfunction occurred was measured
after applying shock to the test piece 3
times each in 6 directions along 3 axes.
Standard value: 100m/s
2
at contact A,
50m/s
2
at contact B
1,000
X'
Shock direction
X
X'
Z
Z'
Y'
20
1,000
Y'
0
-40
-20
0
20
40
60
80
100
Unit: m/s
2
Y
Ambient Temperature (°C)
■Dimensions
G6RN-1
28.5
±0.5
10
±0.5
Five, 1.3-dia. holes
(1.19)
15
±0.5
3.5
0.5
3.2
19
3.2
7.62
(1.6)
19
±0.1
3.2
±0.1
3.2
±0.1
7.62
±0.1
(1.19)
(1.5)
5
4
3
1
2
PCB Mounting Holes
(Bottom View)
Terminal Arrangement/
Internal Connections
(Bottom View)
(No coil polarity)
G6RN-1A
28.5
±0.5
10
±0.5
PCB Mounting Holes
(Bottom View)
Four, 1.3-dia. holes
(1.19)
15
±0.5
3.5
0.5
19
5.1
7.62
(1.6)
19
±0.1
5.1
±0.1
(2.8)
7.62
±0.1
(1.19)
Terminal Arrangement/
Internal Connections
(Bottom View)
1
2
5
3
(No coil polarity)
2
G6RN
■Approved
Standards
PCB Power Relay
●The
rated values approved by each of the safety standards may be different from the performance characteristics individually defined
in this catalog.
UL Recognized
(File No. E41515)
CSA Certified
(File No. 31928)
Model
G6RN-1
Number of
poles
1
Coil ratings
5 to 24 VDC
Contact ratings
8 A, 250 VAC 85°C
8 A, 30 VDC 85°C
Number of test
operations
6,000
EN/TÜV Certified
Model
G6RN-1
G6RN-1A
Creepage distance
Clearance distance
Insulation material group
Rated Insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
(Certificate No. 6135)
Coil ratings
5, 6, 12, 24 VDC
Contact ratings
8 A, 250 VAC (Resistive)
85°C
8 mm
8 mm
IIIa
250 V
2
250 V
III
PTI 250 V min. (housing parts)
V-0
160°C
Approved switching
operations
10,000
Number of
poles
1
Tracking Index of relay base
Flammability class according to UL94
Ball pressure test (IEC 60695-10-2)
■Precautions
●Please
refer to “PCB Relays Common Precautions” for correct use.
G
6
R
N
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
•
Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment with double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
Electronic and Mechanical Components Company
Contact: www.omron.com/ecb
Cat. No. J182-E1-04
1116(0207)(O)
3
Industrial Control Electronics
