710-0010-01 Raspberry Pi Surface Mount
Prototyping Add-on Board
(Bare Board Only)
710-0010-01
Board Only)
Raspberry Pi Surface Mount Prototyping Add-on Board(Bare

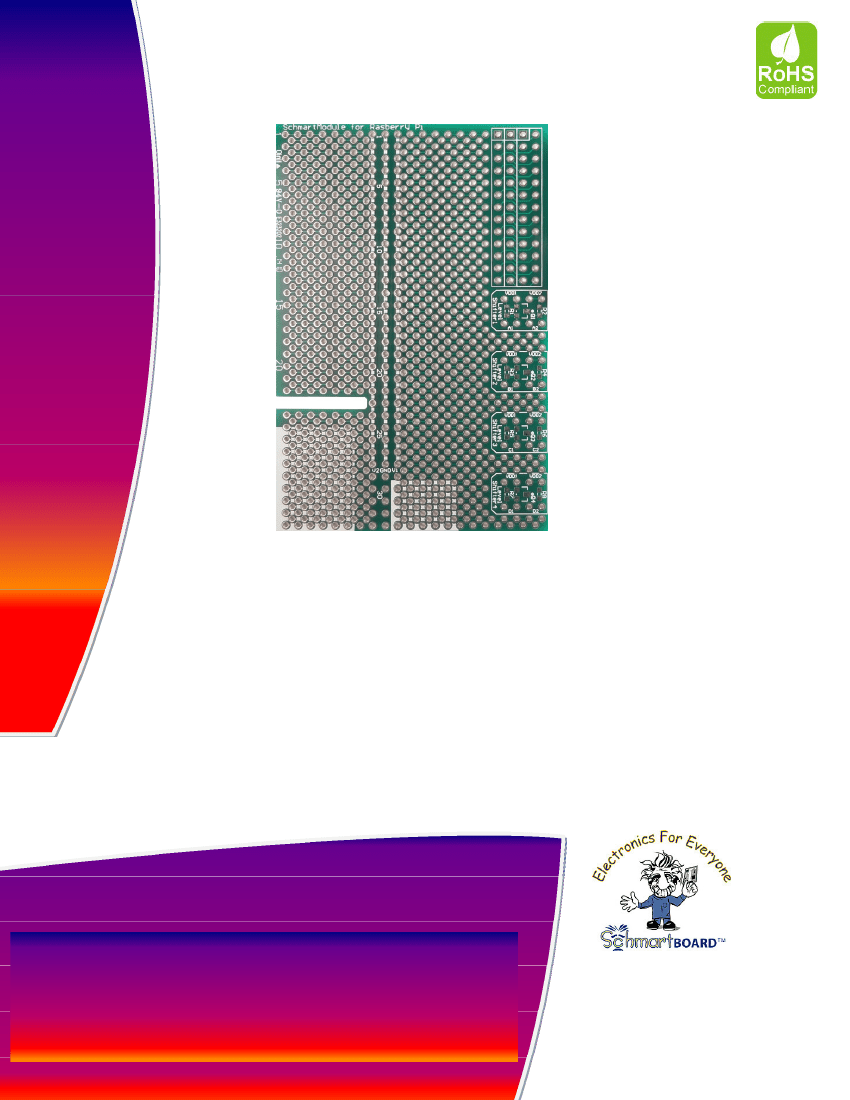

This add-on board is the perfect way to add through hole components to your Raspberry Pi project. The
Schmartboard Through Hole Prototyping Add-On Board for Raspberry Pi has the following unique
features:
•
•
•
•
•
•
•
Schmartboard’s Signature offset through hole grid which expands part placement options
An extra row of holes for easy access to Raspberry Pi’s General I/O signals
Rows of Power and Ground Strips for easy and flexible power-up and circuit grounding
Pre Routed traces to minimize the use of wire jumpers
A slot for the video cable to keep the circuit clean and unencumbered
Circuits for 4 level shifters to more simply add devices regardless of signal values
A marked area where the Raspberry PI USB and Ethernet Connectors are located to avoid
conflicts
