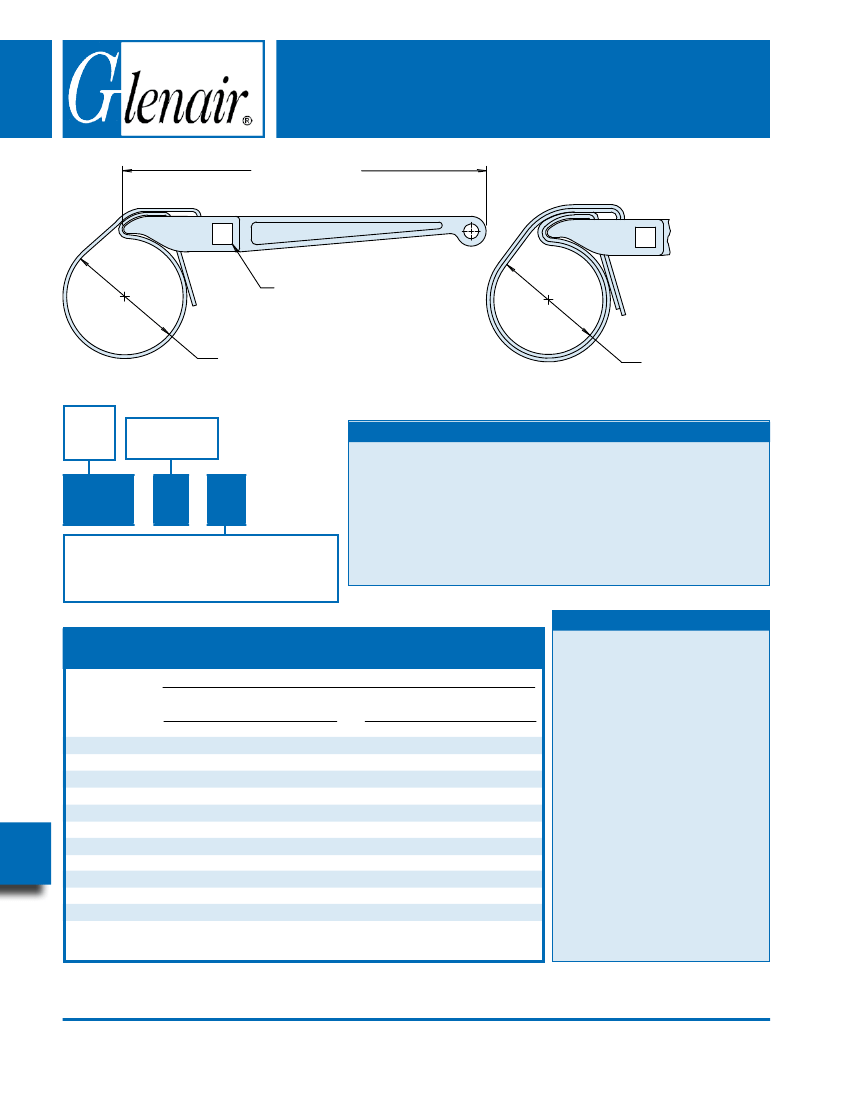

TG70
Connector Strap Wrench
With 3/8” Square Drive
Connector
Accessories
6.500 (165.1) Approx
GL ENAI R I NC. TG70
3/8 Square
Square Drive for
3/8 (9.5)
Drive,
For Torque Wrench 600-004
Torque Wrench 600-004
3.000 (76.2) Dia. Max.
See Note 2
3.000 (76.2) Dia. Max
with 18-Inch Single Strap
3.000 (76.2) Dia. Max. with 18 Inch Single S
2.000 Dia. (50.8) Max.
2.000
12-Inch Single Strap
12 Inch Single S
with
Dia. (50.8) Max. with
See Notes 2, 4 and 5
Basic
Part
Number
Torque Wrench
(Omit for None)
APPLICATION NOTES
1. These wrenches are made of the following materials:
Wrench Handle - Aluminum Alloy/Nickel Plate.
Wedge - Stainless Steel/Passivated.
Strap - Impregnated Fabric. Straps are 1/2 inch (12.7) in width.
2. Replacement straps are available. Specify part number G70515-xx for 12,
18, 24 or 36-inch strap. 24 and 36 inch for double wrap.
3. Metric dimensions (mm) are indicated in parentheses.
4. Double wrap as shown for heavy duty range.
5. Not recommended for composite coupling nuts (use 600-091 or 600-157).
TG70
-
1
-
18
Strap Length in Inches (See Notes2 and 4)
Lengths Available: 12, 18, 24 and 36-Inch Only
Standard length is 12 Inches,
Omit Dash Number for Standard
VARIANCE CHART NOTES
H
VARIANCE CHART
TG-70 Strap Wrench Used with Glenair Torque Wrenches
Recommended Installation Torque
Light/Medium Duty
Heavy Duty
Accessory
± 5 Inch Pounds
± 5 Inch Pounds
Shell Size
TG70 Torque Part Torque
TG70 Torque Part Torque
60
08/09
35
45
28
80
10/11
28
35
70
110 [80]
12/13
30
40
75
120 [80]
14/15
40
75
30
120 [80]
16/17
30
40
75
120 [80]
18/19
30
40
75
140 [100]
20/21
75
80
95
140
22/23
75
80
120*
140
24/25
75
80
120*
150
28
135*
150
32
150*
150
36
150*
* TG70 Not Recommended For Values of 120 Inch Lbs. or Greater.
Recommended installation
torque is approximately 80% of
MIL-C-85049 accessory thread
strength values.
2. Heavy duty installation torque
values may be difficult to attain
with the TG70 Strap Wrench;
the values shown in brackets [ ]
are the maximum attainable with
the TG70 Strap Wrench using a
single wrap.
3. Glenair recommends using 600
series torque tools whenever
possible. When torque loading
exceeds 75 inch pounds, or to
attain the heavy duty torque
values shown, a double wrap
strap provides suitable friction to
achieve torque values.
4. Glenair recomends that heavy
duty torque values be directly
read through the connector shell
body with the use of 600-005
connectors holding tools.
1.
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-50
