54LS266W03 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54LS266W03

Preview

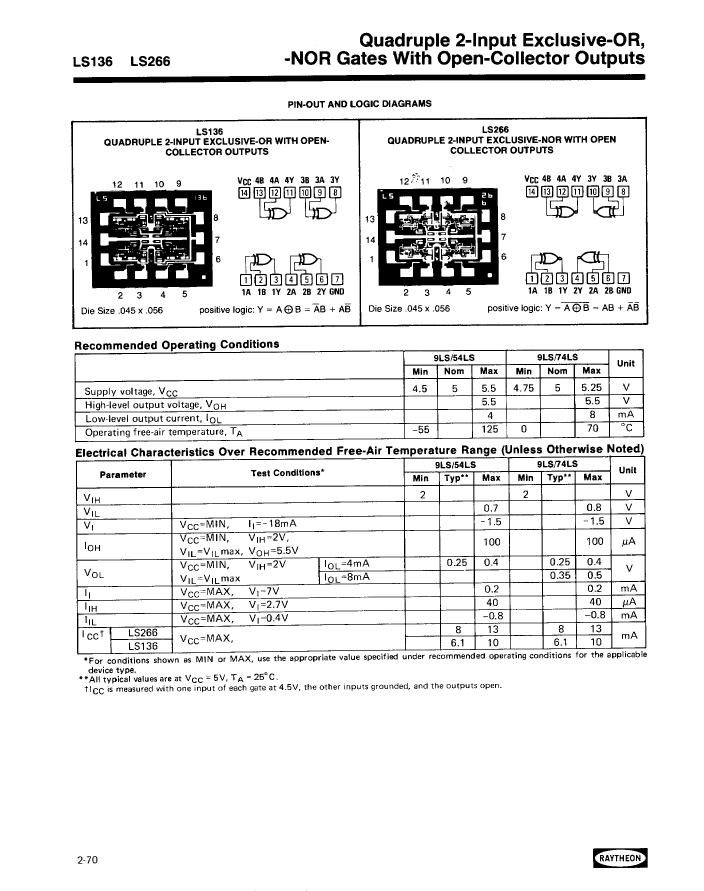

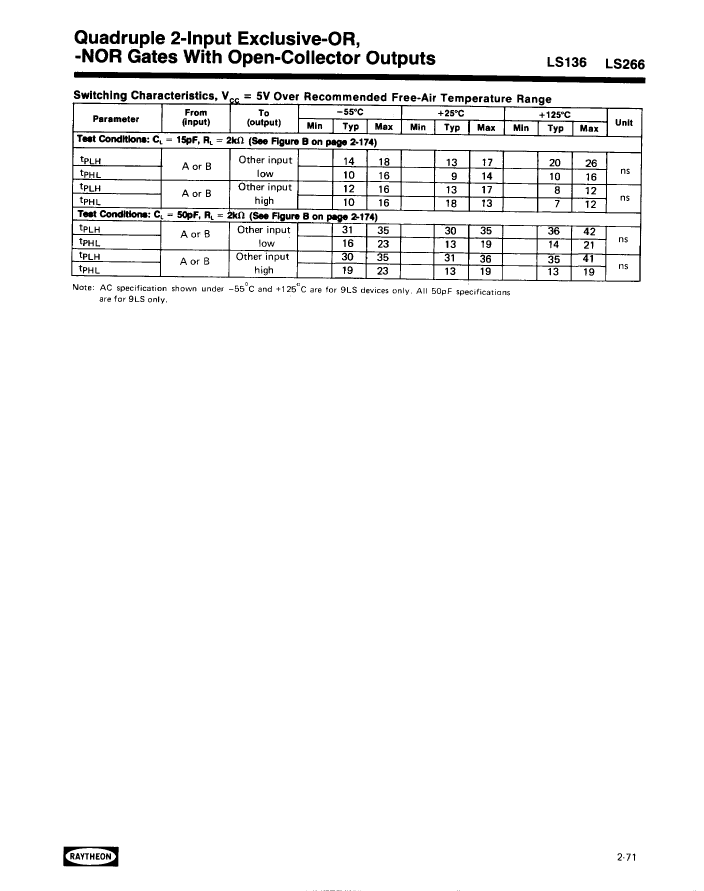

54LS266W03: DescriptionXNOR Gate, TTL, CDFP14,; Categorylogic logic; File Size90KB，2 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

54LS266W03 Overview

XNOR Gate, TTL, CDFP14,

54LS266W03 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100784490
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
YTEOL	0
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	XNOR GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

54LS266W03 Related Products

	54LS266W03	54LS266W	54LS266J	54LS266J03	74LS136N	74LS266N
Description	XNOR Gate, TTL, CDFP14,	XNOR Gate, TTL, CDIP14,	XNOR Gate, TTL, CDIP14,	XNOR Gate, TTL, CDIP14,	XOR Gate, TTL, PDIP14,	XNOR Gate, TTL, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL14,.3	DIP, DIP14,.3	DIP-14	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDFP-F14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	XNOR GATE	XNOR GATE	XNOR GATE	XNOR GATE	XOR GATE	XNOR GATE
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Objectid	100784490	100784423	100784422	100784412	-	-
power supply	-	5 V	-	5 V	5 V	5 V
