QS54FCT573TLB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> QS54FCT573TLB

QS54FCT573TLB: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20,; Categorylogic logic; File Size145KB，6 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS54FCT573TLB Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20,

QS54FCT573TLB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 373
series	FCT
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.032 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	8.5 ns
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

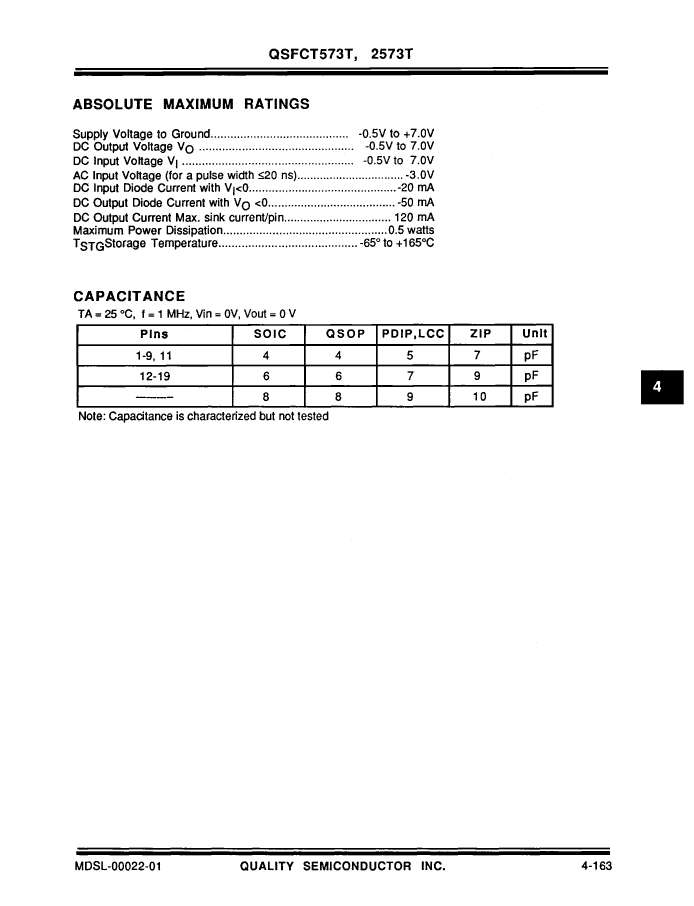

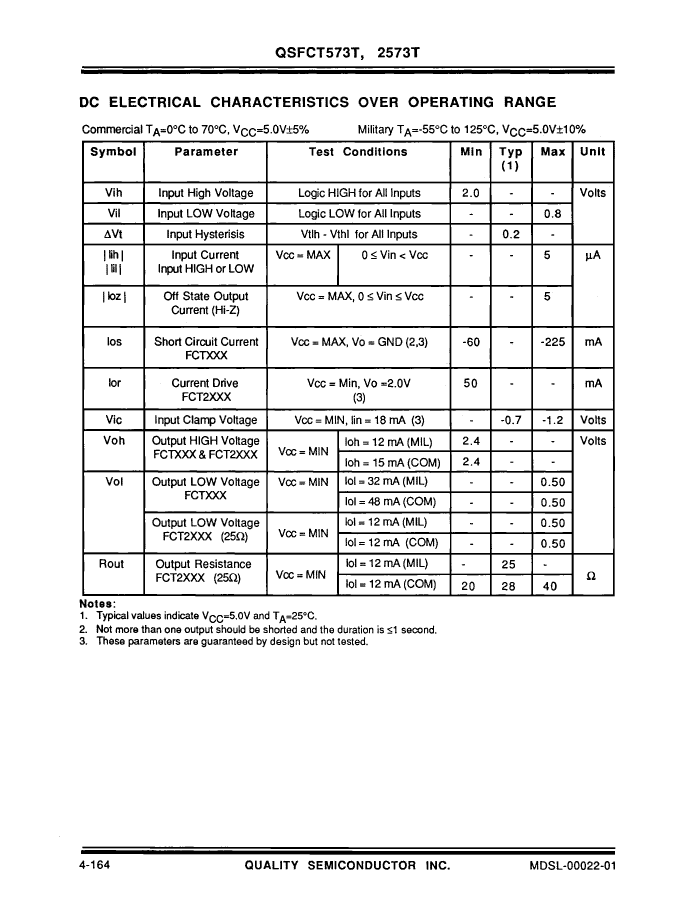

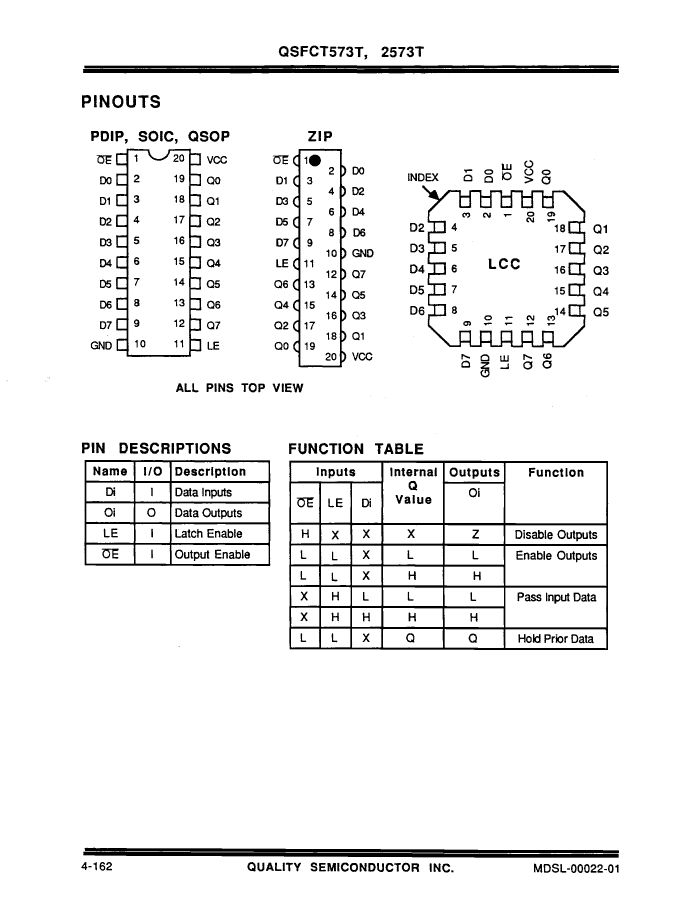

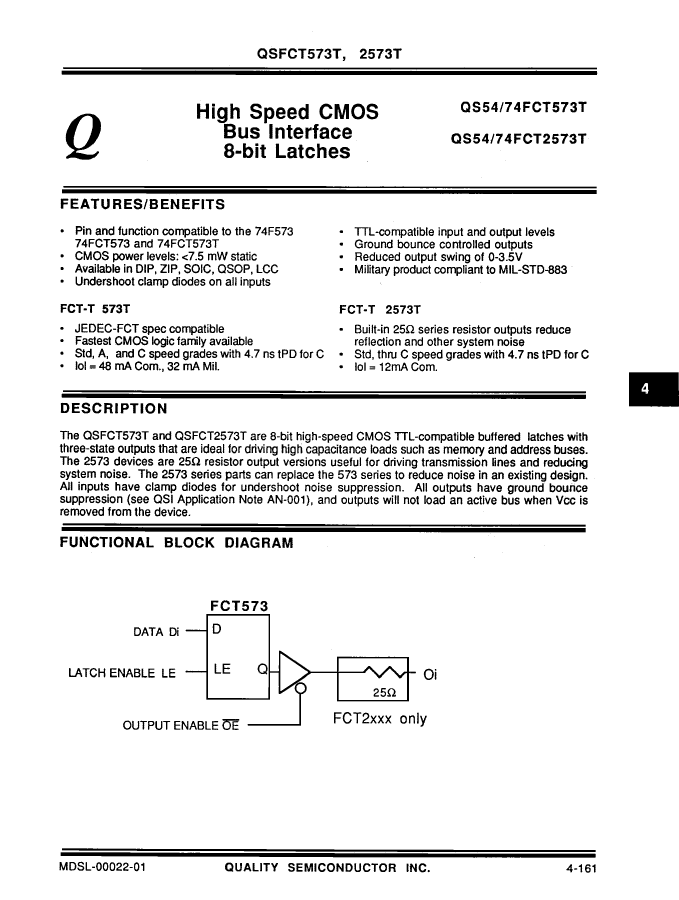

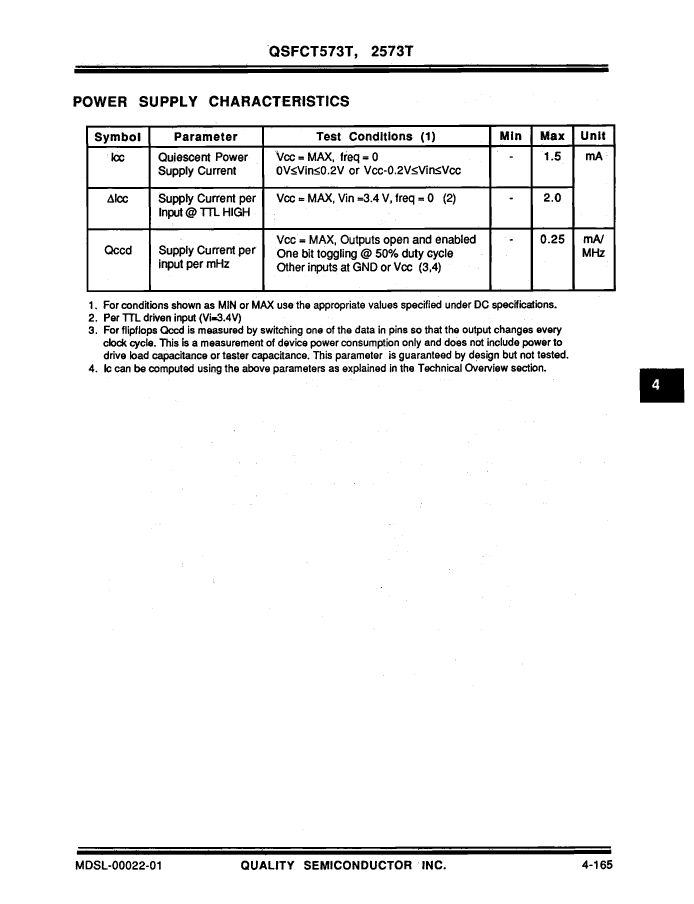

Preview

Download Datasheet

View All

QS54FCT573TLB Related Products

	QS54FCT573TLB	QS54FCT573ATLB	QS54FCT2573TLB	QS54FCT2573ATLB
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20,	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20,	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20,	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknow
Other features	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 2373; 25 OHM OUTPUT SERIES RESISTOR	BROADSIDE VERSION OF 2373; 25 OHM OUTPUT SERIES RESISTOR
series	FCT	FCT	FCT	FCT
JESD-30 code	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.032 A	0.032 A	0.012 A	0.012 A
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ	LCC20,.35SQ	LCC20,.35SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
propagation delay (tpd)	14 ns	9.8 ns	14 ns	9.8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Quality Semiconductor Inc	-	Quality Semiconductor Inc	Quality Semiconductor Inc
Prop。Delay @ Nom-Sup	8.5 ns	5.6 ns	8.5 ns	-
Base Number Matches	1	1	1	-
package instruction	-	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
