2 × 2.2 mm Pitch, Wire-to-Wire Connectors for Small Spaces
DF62 Series
Compact shape due to 2 x 2.2 grid layout of pins
*Both are 7 contacts with 3A current rating
16
Existing
products
16
DF62
Fig.1

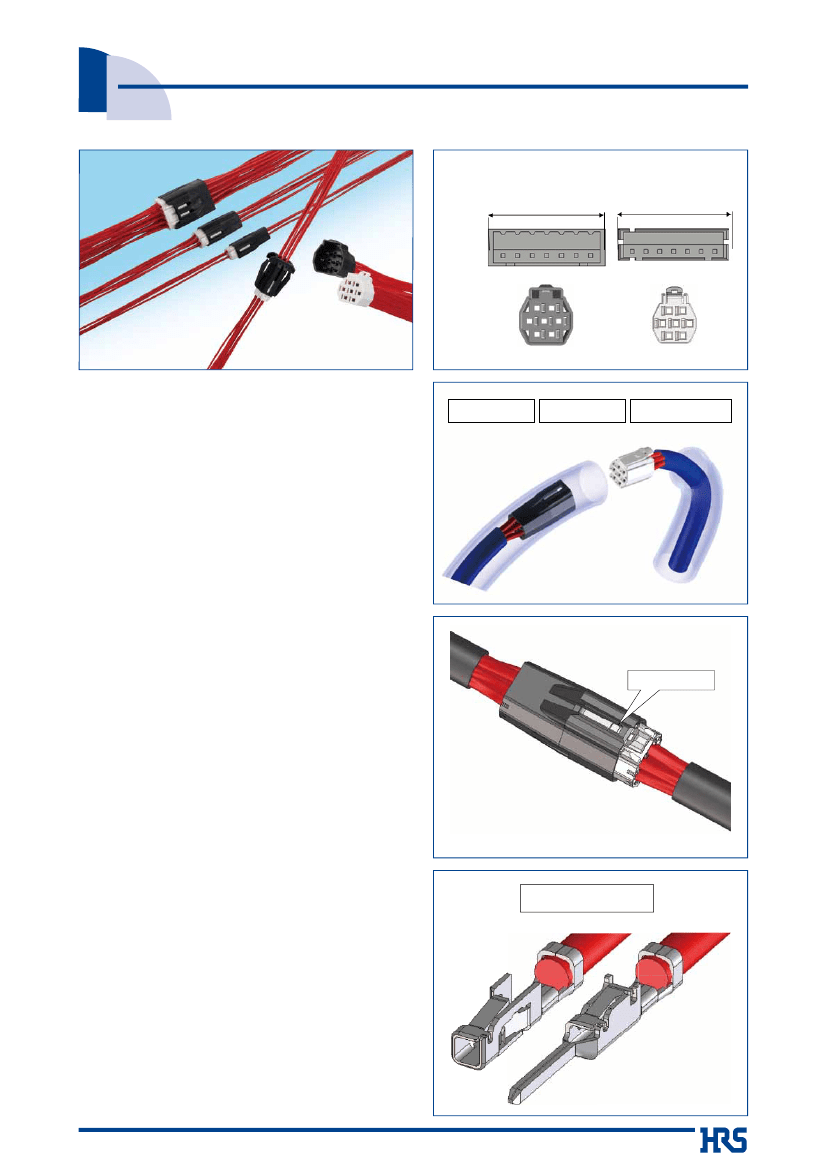

■Features
1. The slim, sleek design and smooth contour
combine to complete connections in tight spaces.
These connectors were designed to take full
advantage of small/narrow spaces. The contacts
are arranged in a grid pattern which shortens the
diagonal distances and the body was slimmed
down by creating smooth outer surfaces. This
design helps to save precious space and makes
these connectors virtually tangle free. There is
no visible or exposed metal which would
eliminate the possibility of electrical arcing
between the connector and the inside of a metal
conduit. (Please refer to Fig. 1 and 2)
Grid Arrangement
Smooth external
shape
No exposed metal
Fig.2
2. Secure lock mechanism
The locking structure emits a clear tactile click
upon lock completion. After completion, a second
indicator can be utilized. The socket lock can be
visually checked through the plug window after
mating. These indicators function together to
prevent incomplete mating. (Please refer to Fig. 3)
Visual check area
3. Reliable contact structure
The structure utilizes two contact points to
provide a reliable contact that resists damage
from vibration and rough operation.
4. Robust contact structure
The unique structure provides protection to the
contacts and lance areas, it prevents any
bending or deformity that might occur during
mating, the assembly procedure or while in
transportation. (Please refer to Fig. 4)
Fig.3
Contact appearance image
5. Multiple variations available
There are several different wire counts available,
giving the designer the variety needed to
complete the application. *Waterproof type is
currently under development, for any inquiries
on this series please contact your local Hirose
Sales Representative.
6. Applicator sharing
The applicators for the DF11 and DF59 series
(existing products) can be adapted to
accommodate the DF62 series applicators.
*Some
modifications are required. Please
contact Hirose for additional details.
2013.11
②
Fig.4
1
DF62 Series●2 × 2.2 mm Pitch, Wire-to-Wire Connectors for Small Spaces
■Product
Specifications
Current
Rating
(Note 1)
Voltage
Rating
Items
1. Insulation Resistance
2. Withstanding Voltage
3. Contact
Resistance
4. Vibration
Resistance
5. Shock
Resistance
6. Humidity
Resistance
7. Temperature
Cycles
8. Durability
22 AWG: 4A/pin (2 pos.)
3A/pin (3 - 13 pos.)
Operating Temperature Range
2.5A/pin (24 pos.)
Operating Humidity Range
24 AWG: 2A/pin
26-30 AWG: 1A/pin
Storage Temperature Range
AC/DC 250V
Storage Humidity Range
-35
½
105ç (Note 2)
20
½
80% (Note 3)
-10
½
60ç (Note 4)
40
½
70% (Note 4)
Ratings
Specifications
Minimum of 1,000 Mø
No flashover or breakdown
Maximum of 30 mø
No electrical discontinuity of 1μs or
greater
No electrical discontinuity of 1μs or
greater
Contact Resistance Maximum of 30 mø
Insulation Resistance: Minimum of 1,000 Mø
Contact Resistance: Maximum of 30 mø
Insulation Resistance: Minimum of 1,000 Mø
Contact Resistance: Maximum of 30 mø
Conditions
Measured with DC 500 V
Apply AC 650 V for 1 minute
Measured at a maximum of 20 mV and 100 mA (DC or
1000 Hz)
10 cycles in each of three directions at frequency 10-55
Hz, half amplitude 0.75 mm
Acceleration: 490 m/s
2
, 11 ms, Semi-sinusoidal 3 axle
direction 3 times each.
Left at temperature 40 ±2ç, humidity 90 to 95%, 96
hours
-
55ç: 30 minutes
→
5
½
35ç: 2
½
3 minutes
→
85ç:
30 minutes
→
5
½
35ç: 2
½
3 minutes, 5 cycles
Mating/unmating: 30 mating cycles
(Note 1) This is the maximum current rating while all pins are powered or used as all power lines. When isolating power lines into multiple
circuits, current ratings may go above the stated current ratings. Please consult Hirose for specific details before doing this.
(Note 2) Includes the temperature rise of power lines
(Note 3) The connector should be completely dry (no condensation present)
(Note 4) The term “storage” refers to the long-term storage condition of unused products before PCB mounting.
The operating temperature and humidity ranges are applied while in a non-energized state, while in transport or after PCB mounting.
■Materials
Item
Socket crimping contact
Plug crimping contact
Crimping socket
Crimping plug
Component
Contact
Contact
Insulator
Insulator
Material
Phosphorous bronze
Phosphorous bronze
PBT resin
PBT resin
Finish
Gold plating or tin plating
Gold plating or tin plating
White
Black
UL Flammability rating
−
−
UL94V-0
UL94V-0
■Product
Number Structure
Refer to the charts below for determining specific part number characteristics.
Please select connectors listed in this catalog when placing orders and be sure to check the latest delivery specifications at the time of ordering the product.
●Connector
DF 62B -
*
S - 2.2 C (00)
❶
❷
❸ ❹
❺
❻
❼
❶Series
Name：DF
❷Series
No.: 62B (regular type)
62C (Protected lock type )
62P (Panel mount type )
❸No.
of Contacts: 2, 3, 4, 5, 6, 7, 13, 24
❹Connector
type
S: Socket, EP: Extension plug
❺Contact
pitch: 2.2 mm
❻Connection
part shape
C: Crimping housing
❼Color
Socket 00: White
11: Black
Extension plug 00: Black
10: White
●Contact
DF 62 - EP 2428 PCF A
❶
❷
❸
❹
❺
❻
❶Series
Name：DF
❷Series
No.: 62
❸Terminal
type
EP: Extension plug
❹Applicable
wire size
22
：AWG#22
2428：AWG#24½28
30
：AWG#30
❺Contact
type /packaging type
SCF: Socket crimping contact, reel
SC Socket crimping contact, pieces
PCF: Plug crimping contact, reel
PC: Plug crimping contact, pieces
❻Plating
type
A: Gold plating
None: Tin plating
2
DF62 Series●2 × 2.2 mm Pitch, Wire-to-Wire Connectors for Small Spaces

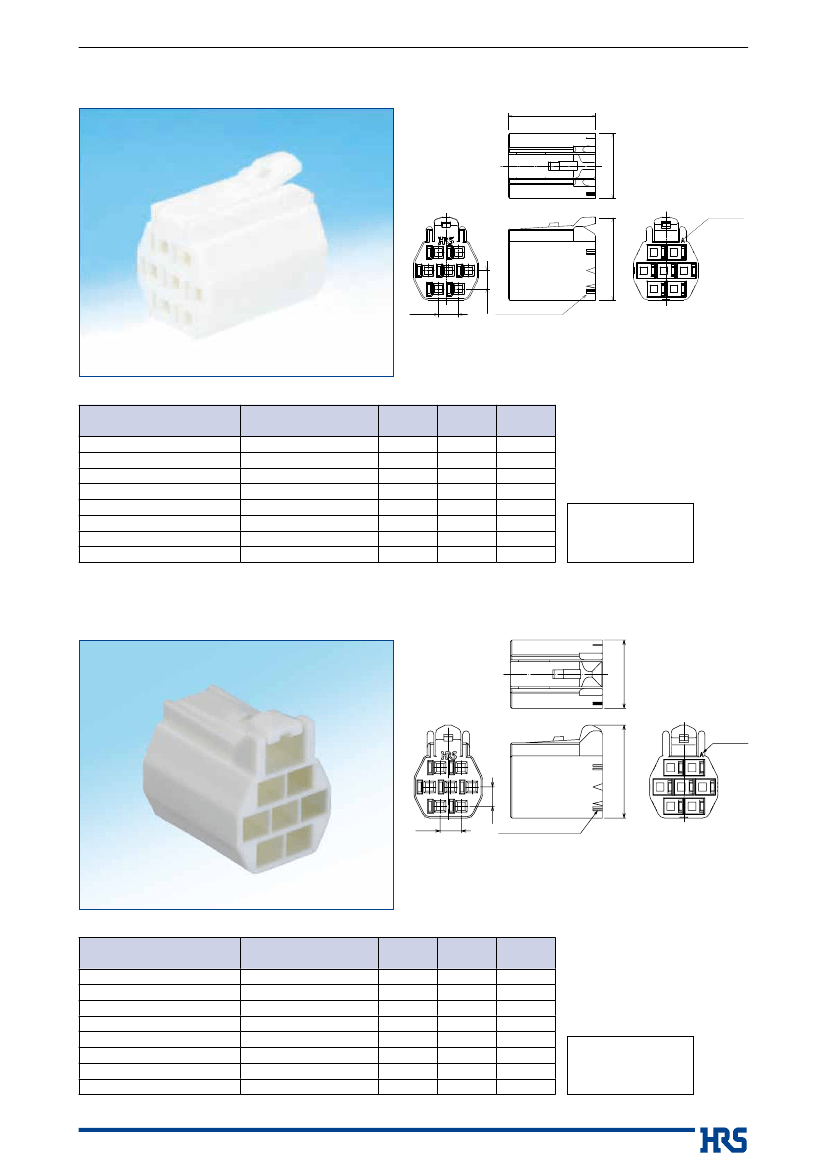

■Socket
(standard type)
9.55
*7 pos. shown
as an example.
A
CAV No.
P=2
P=2.2
Contact No. marking
Unit:mm
Part No.
DF62B- 2S-2.2C(**)
DF62B- 3S-2.2C(**)
DF62B- 4S-2.2C(**)
DF62B- 5S-2.2C(**)
DF62B- 6S-2.2C(**)
DF62B- 7S-2.2C(**)
DF62B-13S-2.2C(**)
DF62B-24S-2.2C(**)
HRS No.
CL544-0551-0-**
CL544-0552-2-**
CL544-0553-5-**
CL544-0554-8-**
CL544-0555-0-**
CL544-0556-3-**
CL544-0557-6-**
CL544-0539-4-**
No. of
Contacts
2
3
4
5
6
7
13
24
A
4.9
4.9
4.9
7.1
7.1
7.1
9.3
12.3
B
5.08
7.08
7.08
7.08
7.08
9.08
11.08
13.08
[Specification No.] **
(00) : White
(11) : Black
(Note 1) This product is sold per pack (100 pieces per pack), please place orders in full pack increments.
■Socket
(Protected lock type)
*7 pos. shown
as an example.
A
B
CAV No.
B
P=2.2
P=2
Contact No. marking
Unit:mm
Part No.
DF62C- 2S-2.2C(**)
DF62C- 3S-2.2C(**)
DF62C- 4S-2.2C(**)
DF62C- 5S-2.2C(**)
DF62C- 6S-2.2C(**)
DF62C- 7S-2.2C(**)
DF62C-13S-2.2C(**)
DF62C-24S-2.2C(**)
HRS No.
CL544-0565-4-**
CL544-0566-7-**
CL544-0567-0-**
CL544-0568-2-**
CL544-0569-5-**
CL544-0570-4-**
CL544-0571-7-**
CL544-0541-6-**
No. of
Contacts
2
3
4
5
6
7
13
24
A
4.9
4.9
4.9
7.1
7.1
7.1
9.3
12.3
B
5.65
7.65
7.65
7.65
7.65
9.65
11.65
13.65
[Specification No.] **
(00) : White
(11) : Black
(Note 1) This product is sold per pack (100 pieces per pack), please place orders in full pack increments.
3
DF62 Series●2 × 2.2 mm Pitch, Wire-to-Wire Connectors for Small Spaces

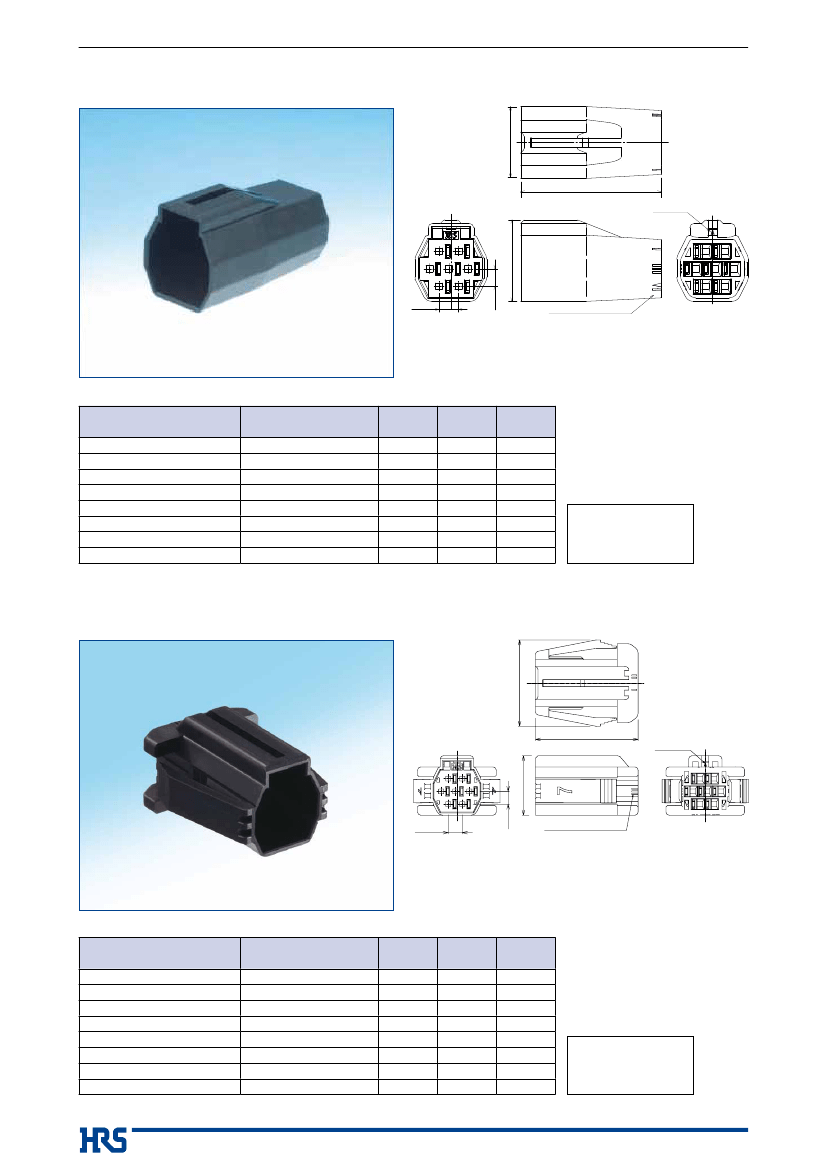

■Plug
(standard type)
*7 pos. shown
as an example.
A
16.05
CAV No.
P=2.2
P=2
B
Contact No. marking
Unit : mm
Part No.
DF62B- 2EP-2.2C(**)
DF62B- 3EP-2.2C(**)
DF62B- 4EP-2.2C(**)
DF62B- 5EP-2.2C(**)
DF62B- 6EP-2.2C(**)
DF62B- 7EP-2.2C(**)
DF62B-13EP-2.2C(**)
DF62B-24EP-2.2C(**)
HRS No.
CL544-0558-9-**
CL544-0559-1-**
CL544-0560-0-**
CL544-0561-3-**
CL544-0562-6-**
CL544-0563-9-**
CL544-0564-1-**
CL544-0540-3-**
No. of
Contacts
2
3
4
5
6
7
13
24
A
6.0
6.0
6.0
8.2
8.2
8.2
10.4
13.4
B
5.3
7.3
7.3
7.3
7.3
9.3
11.3
13.3
[Specification No.] **
(00) : Black
(10) : White
(Note 1) This product is sold per pack (100 pieces per pack), please place orders in full pack increments.
■Plug
(Panel mount type )
A
16.05
CAV No.
P=2
B
P=2.2
Contact No. marking
Unit : mm
Part No.
DF62P- 2EP-2.2C(**)
DF62P- 3EP-2.2C(**)
DF62P- 4EP-2.2C(**)
DF62P- 5EP-2.2C(**)
DF62P- 6EP-2.2C(**)
DF62P- 7EP-2.2C(**)
DF62P-13EP-2.2C(**)
DF62P-24EP-2.2C(**)
HRS No.
CL544-0543-1-**
CL544-0544-4-**
CL544-0545-7-**
CL544-0546-0-**
CL544-0547-2-**
CL544-0548-5-**
CL544-0549-8-**
CL544-0550-7-**
No. of
Contacts
2
3
4
5
6
7
13
24
A
11.3
11.3
11.3
13.5
13.5
13.5
15.7
18.7
B
5.3
7.3
7.3
7.3
7.3
9.3
11.3
13.3
[Specification No.] **
(00) : Black
(10) : White
(Note 1) This product is sold per pack (100 pieces per pack), please place orders in full pack increments.
4
DF62 Series●2 × 2.2 mm Pitch, Wire-to-Wire Connectors for Small Spaces

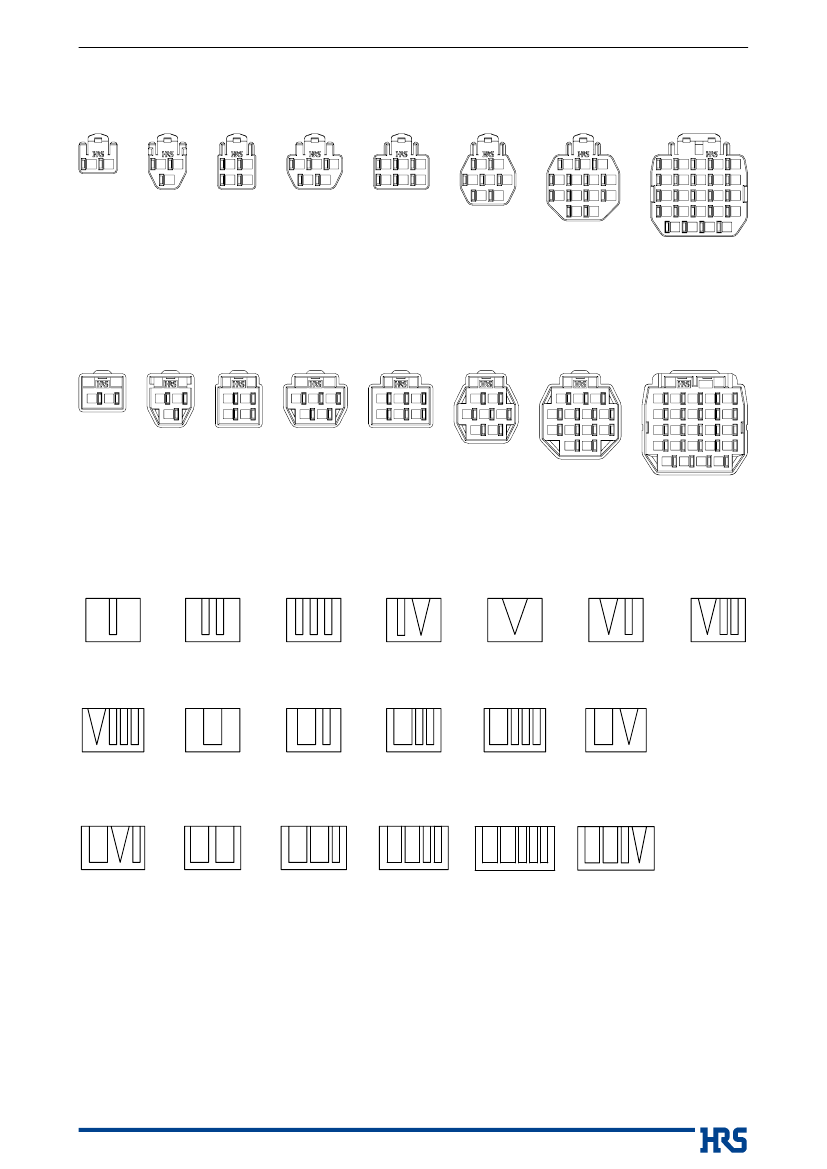

BSocket
contact No. Summary diagram (from the mating section side)
2 pos.
3 pos.
4 pos.
5 pos.
6 pos.
7 pos.
13 pos.
24 pos.
1
2
1
3
2
1
3
2
4
1
4
2
5
3
1
4
2
5
3
6
1
3
6
4
2
5
7
4
8
1
2
3
5 6 7
9 10 11
12 13
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
16 17 18 19 20
21 22 23 24
BPlug
contact No. Summary diagram (from the mating section side)
In the system I designed, the main work is handled by interrupts. I would like to ask: when the system enters the processing program of a certain interrupt A (without _EINT() again), another interrupt...
Now I can draw the diagonal lines of TFT LCD, and I know the pixel points of each diagonal line. But I can't figure out the grayscale picture. I would like to ask if you have any general ideas. Thank ...
Hello everyone, I have been working on single-chip microcomputers. Due to the needs of the original project, I started to learn single-chip microcomputers from Atmega162. The company environment is re...
There are 21 buttons. I heard that putting them in the timer interrupt to debounce does not waste time. I want to determine a timer reference T, and then scan them in time. If T is set too large, a cy...
While
the solid-state battery
industry is still engaged in a long technological marathon for
the "ultimate solution" for
electric vehicles
, some companies have begun looking for mor...[Details]
How do you know if a machine is operating properly? The answer: by leveraging deep learning to detect anomalies in routine vibration data from industrial machines. Anomaly detection has many uses, ...[Details]
Reflow soldering is a critical process in electronics assembly production, and the cleanliness of the reflow oven has a direct impact on product quality. Dust and residue accumulation within the ov...[Details]
To understand why car engines need gearboxes, we must first understand the characteristics of different types of engines. An engine refers to a machine that can convert a form of energy into kineti...[Details]
Multi-touch mobile phone
Multi-touch is a system that can respond to multiple touches on the screen at the same time. Multi-touch phones are divided into capacitive and resistive types. Capaci...[Details]
On August 25th, TSMC, the world's leading contract chip manufacturer, attracted significant attention for its decision to build a chip manufacturing facility in Arizona. TSMC primarily manufactures...[Details]
On August 18th, Galaxis, a specialist in integrated intelligent intralogistics robotics, officially unveiled its next-generation, ultra-narrow aisle forklift mobile robot, the "VFR Ultra-Narrow Ser...[Details]
A half-bridge is an inverter topology for converting DC to AC. A typical half-bridge circuit consists of two controller switches, a three-wire DC power supply, two feedback diodes, and two capacito...[Details]
Industrial computers with GPUs leverage powerful parallel processing to build deep learning models to analyze and respond to optical inputs. The systems develop an understanding of visual data to i...[Details]
On August 21, according to a report by Korean media SEDaily yesterday, according to semiconductor industry sources, the HBM4 samples provided by Samsung to Nvidia last month have passed initial tes...[Details]
With the prevalence of online conferencing, live streaming, and voice communication in gaming, high-quality audio input devices are becoming increasingly important. To this end, XMOS, an expert in ...[Details]
Qiangmao, your trusted semiconductor solutions partner, sincerely invites you to visit Electronics India 2025, South Asia's leading trade show for electronic components, systems, applications...[Details]
introduction
The widespread use of air conditioner communication circuits began with the rise of household inverter air conditioners. With China's energy conservation and emission reduction in...[Details]
introduction
With the development of the information superhighway and the internet, broadcast television has become increasingly widespread worldwide. Television information has emerged in var...[Details]
Since the beginning of the 21st century, with the rapid development of my country's urban and rural economies and the improvement of people's living standards, more and more people have begun to ow...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
