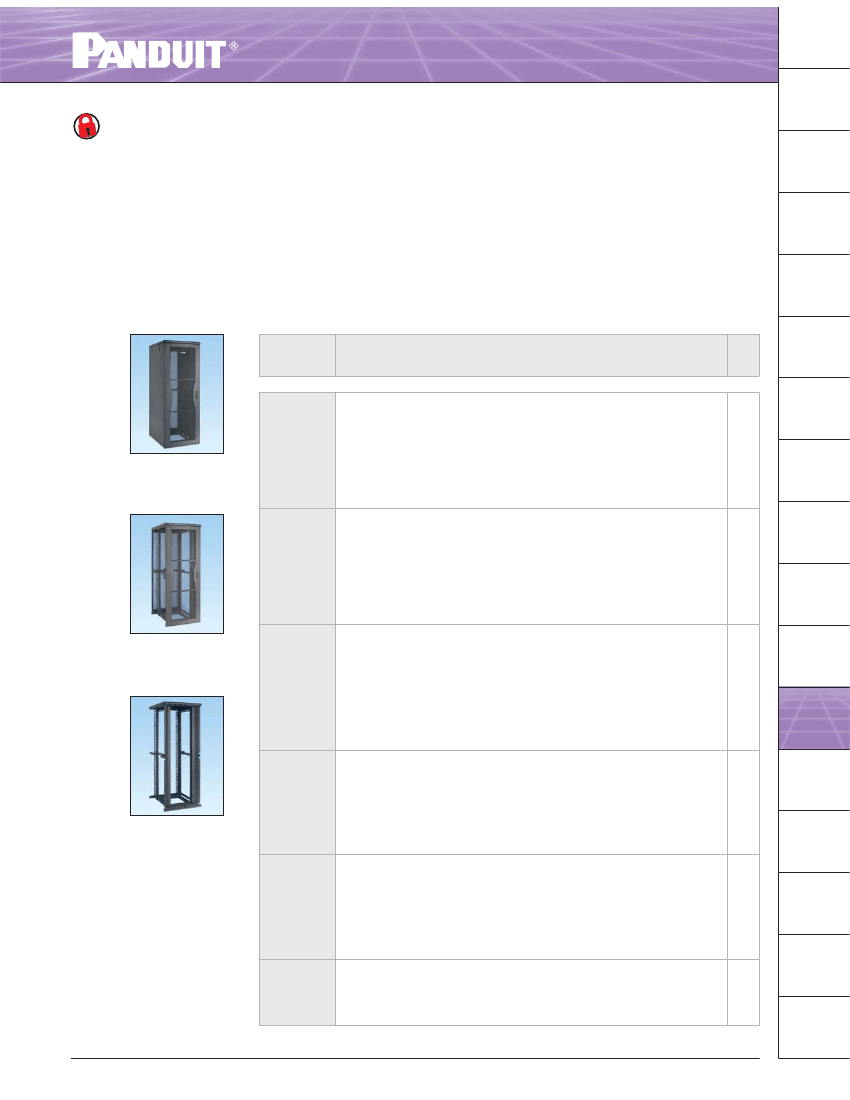

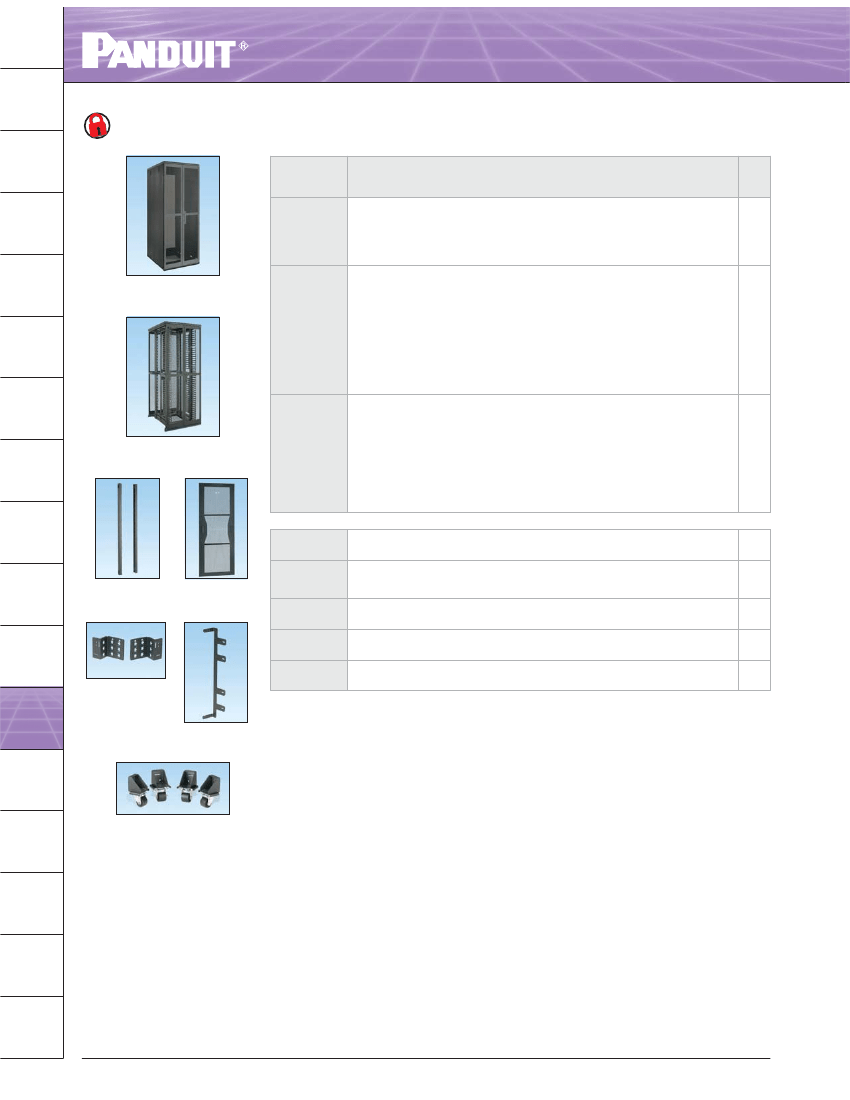

PHYSICAL INFRASTRUCTURE SYSTEMS
Net-Access
™
Server Cabinets
• Inset frame posts create large and accessible vertical
pathways for routing cables and mounting vertical patch
panels and Power Outlet Units
• Include vertical blanking panels to block bypass air and
direct cold air through servers
• Modular cable management finger sections manage
cables for greater routing flexibility
• Innovative, fully integrated, electrically bonded cabinet
with a single ground connection to guard against EMI and
ESD, and provide a safe current path to ground
• All welded frame construction
•
•
•
•
•
•
•
•
Adjustable rear cage nut mounting rails
Doors include keyed swing latches
Side panels include keyed pushbutton latches
Equipment mounting depths up to 29" (736.6mm)
Durable black polyester epoxy powder coat finish
UL Listed 2500 lbs. (1134 kg) load rating
Cabinet ships assembled, one per pallet
For the complete grounding solution, see the
StructuredGround
™
Kits for Cabinets
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
™
Std.
Pkg.
Qty.
1
F.
Wireless
Net-Access Server Cabinets
CS1
Cabinet frame with top panel.
Single hinge perforated front door.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of cage nut equipment mounting rails.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Single hinge perforated front door.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of cage nut equipment mounting rails installed numbered up.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Single hinge perforated front door.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of cage nut equipment mounting rails installed numbered up.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Four installed casters.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Single hinge perforated front door.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Two sets of cage nut equipment mounting rails.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Single hinge perforated front door.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Two sets of cage nut equipment mounting rails installed numbered up.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Two sets of cage nut equipment mounting rails.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 40.0"D (2134mm x 800mm x 1016mm)
G.
Outlets
CS1
H.
Media
Distribution
CS1NU
1
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
CS1RNU
CS2
1
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
CS2
1
M.
Grounding &
Bonding
CS3
CS2NU
N.
Industrial
1
O.
Labeling &
Identification
P.
Cable
Management
Accessories
CS3
1
White cabinets also available upon request. Please consult Panduit Customer Service for lead-times.
Q.
Index
Table continues on page L.12
www.panduit.com
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see back cover).
L.11
A.
System
Overview
PHYSICAL INFRASTRUCTURE SYSTEMS
Net-Access
™
Server Cabinets (continued)
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
CS3NU
Cabinet frame with top panel.
Two sets of cage nut equipment mounting rails installed numbered up.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 40.0"D (2134mm x 800mm x 1016mm)
CS4RNU
CS4RNU
Cabinet frame with top panel.
Two split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of cage nut equipment mounting rails numbered up.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Four installed casters.
One set of vertical blanking panels
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Split perforated front doors open in the middle to minimize door
swing footprint.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Two sets of cage nut equipment mounting rails.
45 RU cable management on rear of rear posts.
One set of POU mounting brackets.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Extended front server cabinet cage nut equipment mounting rails, sold
in pairs.
Single hinge door quickly reverses from left-hinging to right-hinging for
increased data center design flexibility. Open perforated design enables
optimum airflow to equipment.
Bracket for vertical POU mounting to the side of the Net-Access
™
Cabinet
posts or 4 post racks (kit of two).
Bracket to vertically mount 1 RU EIA 19" copper and fiber patch panels to
the side of the Net-Access
™
Cabinet posts or 4 post racks.
Network cabinet casters – set of four. Can be field installed without tipping
cabinet. Adds 1.7" (43mm) to cabinet height.
Std.
Pkg.
Qty.
1
1
F.
Wireless
G.
Outlets
CS5
1
CS5
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
Net-Access
™
Server Cabinet Options and Accessories
CSRCE
CNDSH
CSRCE
CNDSH
CVPDUB
CVPPB
CNCSTR
CVPDUB
1
1
1
1
1
White cabinets also available upon request. Please consult Panduit Customer Service for lead-times.
CVPPB
N.
Industrial
CNCSTR
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
L.12
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
