AN6650S datasheet, PDF - EEWORLD Datasheet

AN6650S: DescriptionMotor Control Circuits; CategoryOther integrated circuit (IC) The signal circuit; File Size92KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

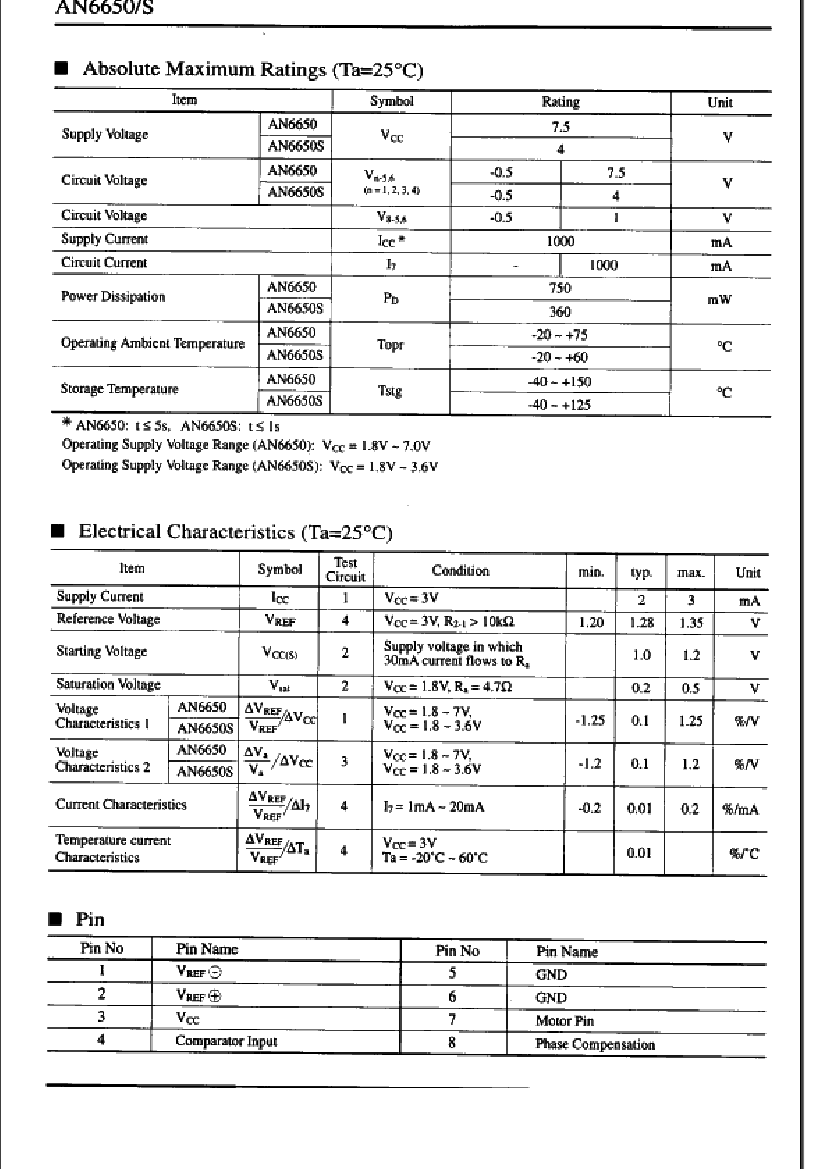

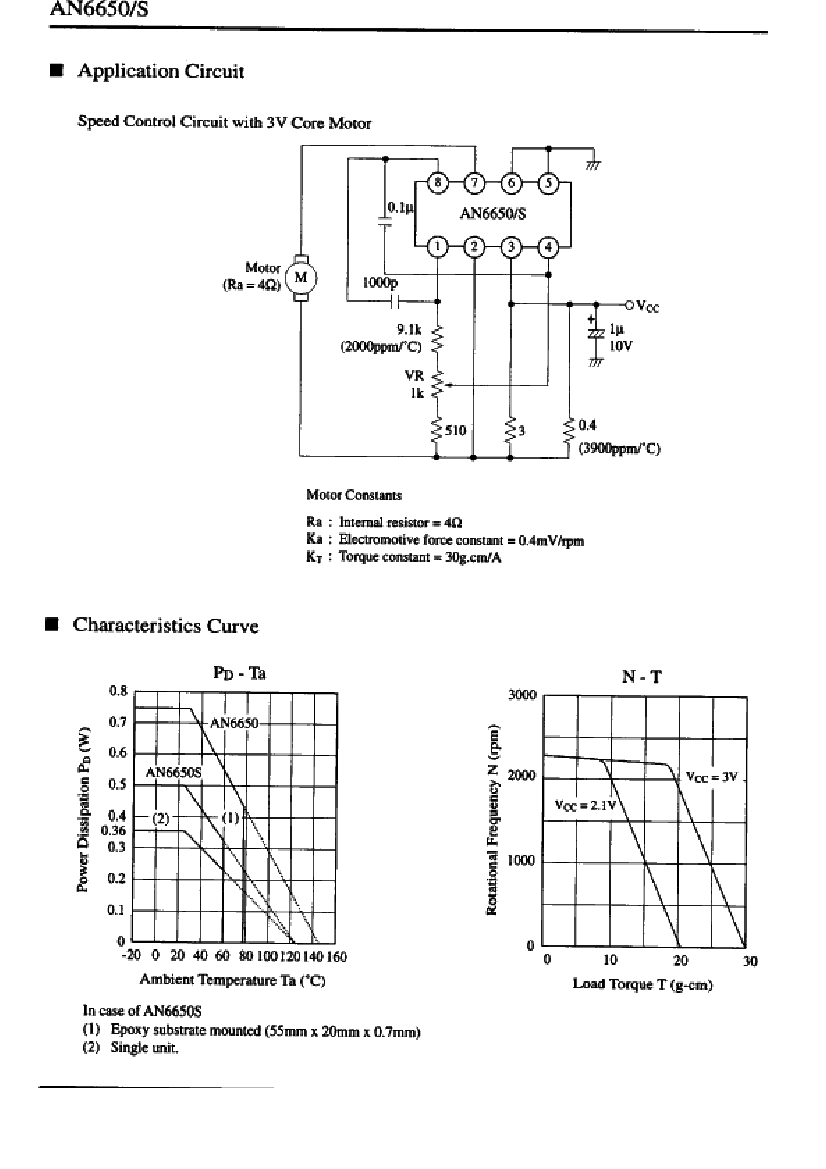

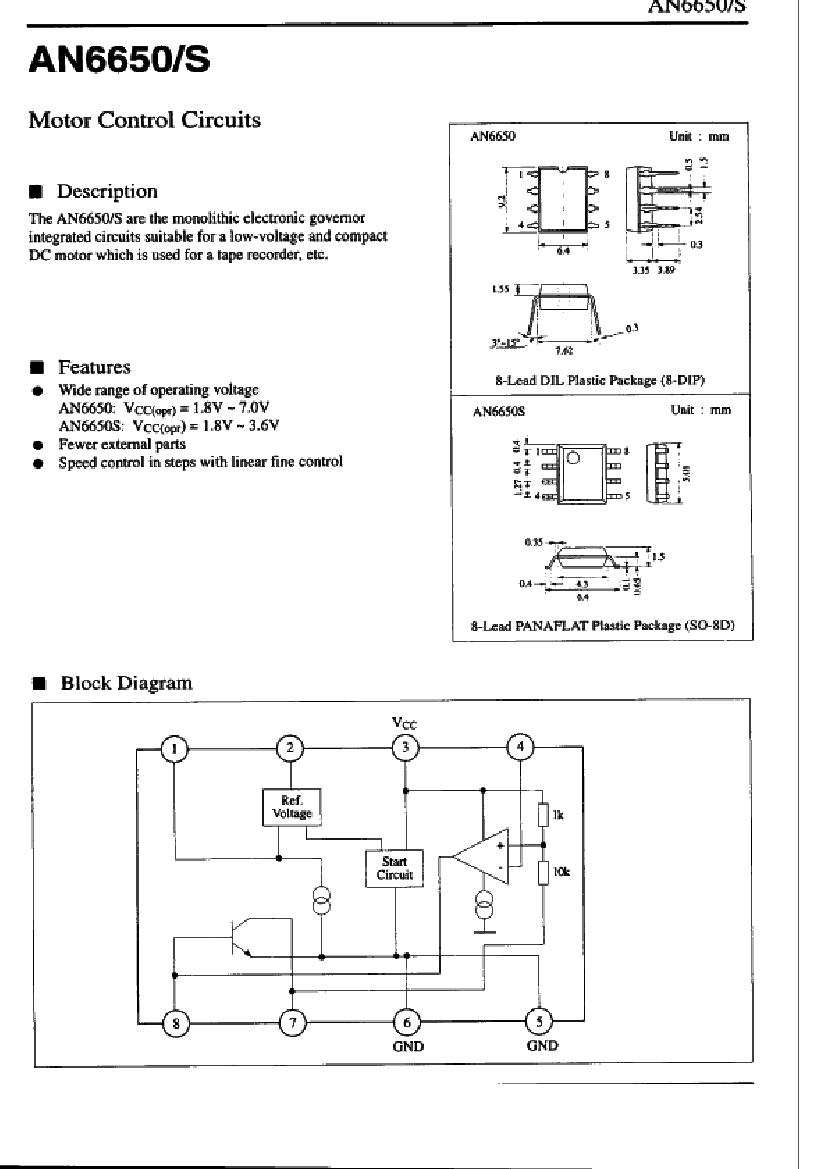

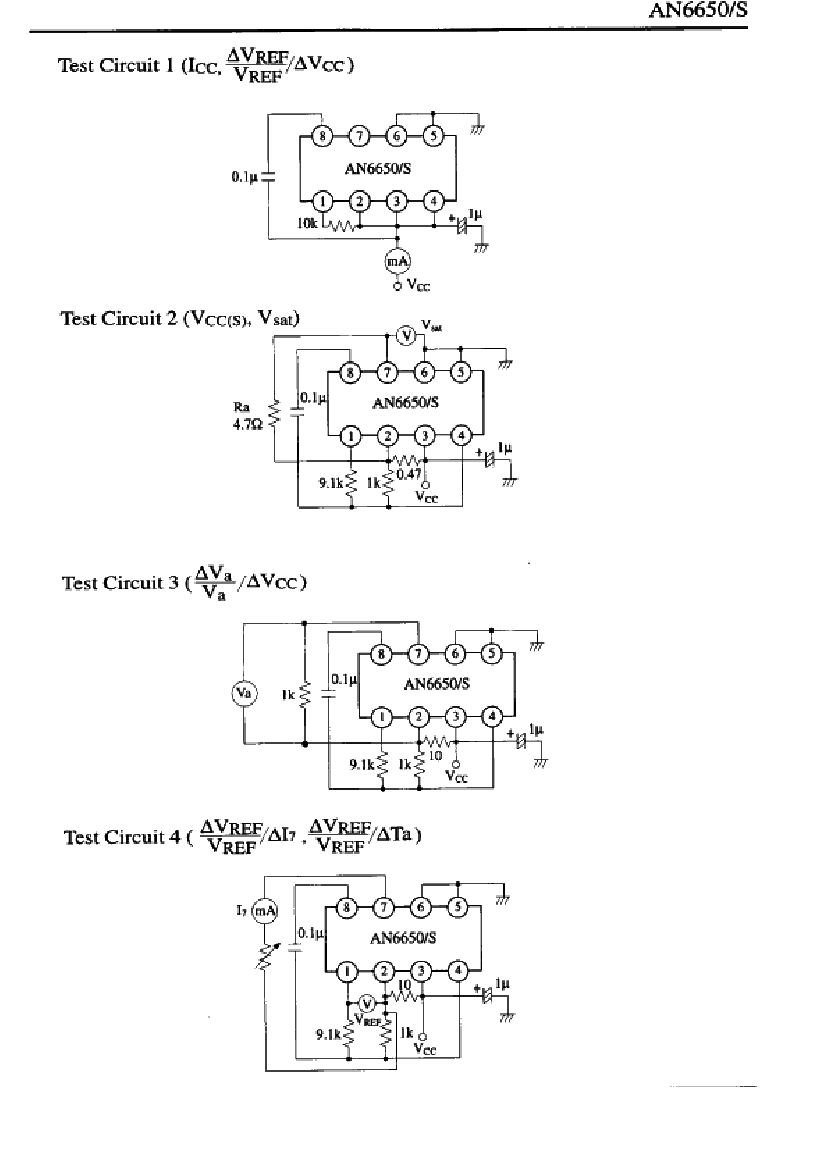

AN6650S Overview

Motor Control Circuits

Parameter Name	Attribute value
Maker	Panasonic
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G8
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/3.3 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	3 mA
Maximum supply voltage (Vsup)	7 V
Minimum supply voltage (Vsup)	3.6 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.2 mm

	AN6650S	AN6650
Description	Motor Control Circuits	Motor Control Circuits
Maker	Panasonic	Panasonic
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP8,.25	DIP, DIP8,.3
Contacts	8	8
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G8	R-PDIP-T8
length	5 mm	9.4 mm
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	60 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Maximum output current	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP8,.25	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	2/3.3 V	1.8/7 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	4.05 mm
Maximum supply current (Isup)	3 mA	3 mA
Maximum supply voltage (Vsup)	7 V	7 V
Minimum supply voltage (Vsup)	3.6 V	1.8 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	4.2 mm	7.62 mm
