2102851-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2102851-1

2102851-1: Description(2102851-1) BP, Center, RTM, MULTIGIG RT 2R; CategoryThe connector The connector; File Size811KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2102851-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102851-1	-	-	View	Buy Now

2102851-1 Overview

(2102851-1) BP, Center, RTM, MULTIGIG RT 2R

2102851-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	incompatible
Objectid	1643481024
Reach Compliance Code	unknown
Country Of Origin	USA
YTEOL	7.6
body width	0.732 inch
subject depth	0.413 inch
body length	1.157 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Power Connector Ratings	1.5A
Plug contact pitch	0.07 inch
Match contact row spacing	0.071 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	9
Number of ports	1
Number of rows loaded	9
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.7 mm
Panel mounting	NO
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
Terminal length	1.62 inch
Terminal pitch	1.9 mm
Termination type	SOLDER
Total number of contacts	144
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

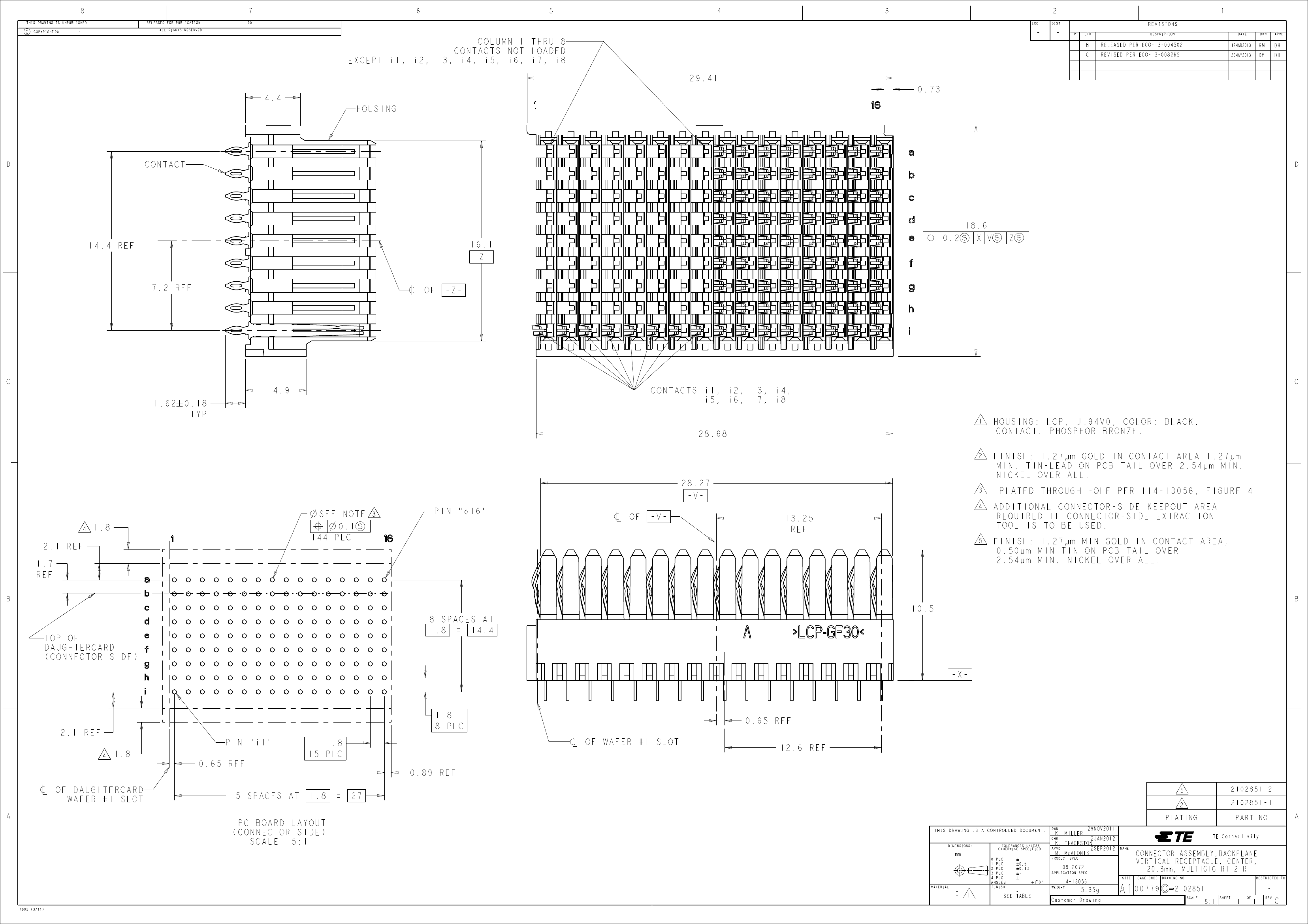

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

COLUMN 1 THRU 8

CONTACTS NOT LOADED

EXCEPT i1, i2, i3, i4, i5, i6, i7, i8

29.41

4.4

HOUSING

0.73

RELEASED PER ECO-13-004502

REVISED PER ECO-13-008265

12MAR2013

20MAY2013

CONTACT

18.6

14.4

REF

16.1

-Z-

7.2 REF

-Z-

1.62

0.18

TYP

4.9

CONTACTS i1, i2, i3, i4,

i5, i6, i7, i8

28.68

HOUSING: LCP, UL94V0, COLOR: BLACK.

CONTACT: PHOSPHOR BRONZE.

FINISH: 1.27µm GOLD IN CONTACT AREA 1.27µm

MIN. TIN-LEAD ON PCB TAIL OVER 2.54µm MIN.

NICKEL OVER ALL.

PLATED THROUGH HOLE PER 114-13056, FIGURE 4

ADDITIONAL CONNECTOR-SIDE KEEPOUT AREA

REQUIRED IF CONNECTOR-SIDE EXTRACTION

TOOL IS TO BE USED.

FINISH: 1.27µm MIN GOLD IN CONTACT AREA,

0.50µm MIN TIN ON PCB TAIL OVER

2.54µm MIN. NICKEL OVER ALL.

28.27

-V-

SEE NOTE

144 PLC

PIN "a16"

1.8

-V-

13.25

REF

2.1 REF

1.7

REF

TOP OF

DAUGHTERCARD

(CONNECTOR SIDE)

8 SPACES AT

1.8 = 14.4

10.5

-X-

2.1 REF

1.8

8 PLC

1.8

PIN "i1"

0.65

REF

15 SPACES AT

1.8

15 PLC

0.89

1.8

REF

0.65

REF

12.6

REF

WAFER #1 SLOT

PLATING

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

2102851-2

2102851-1

PART NO

TE Connectivity

PC BOARD LAYOUT

(CONNECTOR SIDE)

SCALE

5:1

K. MILLER

K. THACKSTON

M. McALONIS

108-2072

29NOV2011

12JAN2012

12SEP2012

NAME

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.5

0.13

PRODUCT SPEC

APPLICATION SPEC

1 $ 0'

SEE TABLE

WEIGHT

114-13056

5.35g

Customer Drawing

00779

SIZE

CONNECTOR ASSEMBLY,BACKPLANE

VERTICAL RECEPTACLE, CENTER,

20.3mm, MULTIGIG RT 2-R

CAGE CODE

DRAWING NO

RESTRICTED TO

2102851

SCALE

4805 (3/11)

8:1

SHEET

REV
